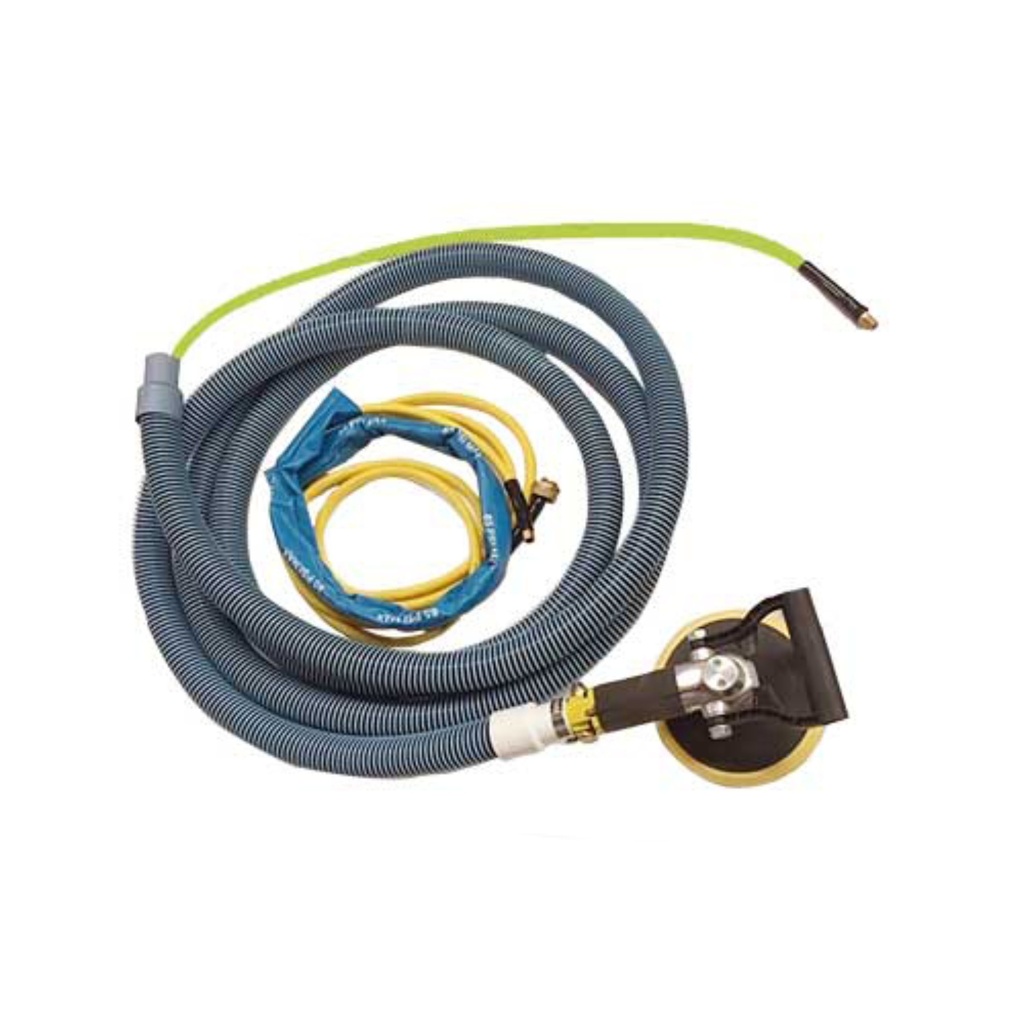

Alpha AIR-680UW Underwater Pneumatic Polisher (4,000 RPM, 5/8"-11 Threads)

(0 reseña)
  • High-Performance, Pneumatic Polisher for Underwater Applications
  • Central Water-Feed System Delivers Ample Water Regardless of Position for Plaster Polishing
  • No-Load RPM- 4,000
  • 15ft. All-Weather Air & Water Hoses with Flexibility Down To -40°F Or +140°F (-40°C Or +60°C)
  • 30ft. All-Weather Air Hose with Flexibility Down To -40°F Or +140°F (-40°C Or +60°C)
  • 27ft. Flexible Exhaust Hose included
  • 7" Rotary Backer Pad, 7" 50 Grit and 7" 100 Grit PlasterKing Pads Included
  • Lightweight and Ergonomically Designed for Better Maneuverability
  • Side and C-Handle are Standard Accessories
  • Enhanced Spindle Shaft for Easy Tool Removal (Wrench Included)
  • One Year Tool Warranty*
$ 616,22 $ 616,22
$ 616,22

Terms and Conditions
Contáctenos
Documentos
AIR-680UW_NormalUsage.pdf AIR-680UW_UsingUnderwater.pdf AIR-680UW_flyer.pdf AIR-680UW_v0221_manual.pdf AIR-680UW_v1121_manual.pdf Plasterking_flyer.pdf

Alpha® AIR-680UW Underwater Pneumatic Polisher

The Alpha® AIR-680UW is a high-performance pneumatic polisher built for underwater polishing, drilling, and profiling — a modified version of the bestselling AIR-680 with a 27 ft flexible exhaust hose that lets the operator work submerged in most pool sizes. A central water-feed system delivers ample water regardless of tool position, making it ideal for pool plaster, marble, granite, engineered stone, and concrete. Spins at 4,000 no-load RPM, requires 85 PSI / 15 CFM, and ships complete with 5/8"-11 spindle, side and C-handles, a 7" backer pad, and 50 and 100 grit PlasterKing pads.

Features

  • High-performance pneumatic polisher engineered for underwater applications
  • Central water-feed system delivers ample water in any position for plaster polishing
  • No-load speed of 4,000 RPM
  • 15 ft all-weather air and water hoses (flexible from -40°F to +140°F)
  • 30 ft all-weather air hose included
  • 27 ft flexible exhaust hose lets you work underwater in most pool sizes
  • 7" rotary backer pad plus 7" 50-grit and 100-grit PlasterKing pads included
  • Side handle and C-handle standard
  • Enhanced spindle shaft for convenient tooling changes
  • Lightweight 2.64 lb (1.2 kg) ergonomic design
  • One-year limited warranty
Part No. Power RPM Range Thread UPC
AIR-680UW Pneumatic, 85 PSI / 15 CFM 4,000 (no-load) 5/8"-11 749173430169
  1. Connect the 30 ft air hose to a compressor capable of 85 PSI and 15 CFM.
  2. Attach the 15 ft water supply line to the central water-feed inlet and a clean water source.
  3. Connect the 27 ft flexible exhaust hose for underwater operation, routing the exhaust to atmosphere above the waterline.
  4. Install the 7" rotary backer pad onto the 5/8"-11 spindle and attach a 7" PlasterKing pad (50-grit for cut, 100-grit for finish).
  5. Submerge and begin polishing — keep the tool running while underwater to prevent water back-wash into the motor.
  6. At end of shift, add a few drops of rust-inhibitor oil to the oil port and run briefly to lubricate the rotor and cylinder.
AIR-680UW
Part No. AIR-680UW
UPC 749173430169
Thread 5/8"-11
Max RPM 4,000 RPM (no-load)
Recommended For Underwater Wet Polishing, Drilling & Profiling
Packaged Weight 13.0 lbs
Package Dimensions 18" x 14" x 11"
Commodity Code 8467.11.5090
Country of Origin Japan
Property Detail
Tool Type Pneumatic underwater wet polisher
No-Load Speed 4,000 RPM
Air Pressure 85 PSI (6 bar)
Air Consumption 15 CFM (425 L/min)
Tool Weight 2.64 lbs (1.2 kg)
Spindle 5/8"-11
Air Inlet 1/4" BSPP
Water Inlet 1/8" BSPP
Air Hose 30 ft all-weather
Water/Air Supply Hoses 15 ft all-weather
Exhaust Hose 27 ft flexible (for underwater use)
Hose Flexibility Range -40°F to +140°F
Included Pads 7" backer + 7" 50-grit + 7" 100-grit PlasterKing
Included Handles Side handle and C-handle
Country of Origin Japan
Warranty One year (see manual)
Can I use the AIR-680UW underwater without the flex exhaust hose?

Yes, but water will try to back-wash into the motor whenever the tool stops. For continuous underwater operation without the hose, the polisher must keep running while submerged so airflow direction prevents water ingress. Alpha strongly recommends using the included 27 ft flex exhaust hose.

How much rust-inhibitor oil should I use and how often?

Place only a few drops of rust-inhibitor oil into the oil port at the end of every shift, then slowly turn on the air to lubricate the rotor and cylinder. Avoid applying oil at full pressure — it expels prematurely.

Can I use the AIR-680UW for grinding?

Yes, with the appropriate tooling. Wet grinding is recommended to prevent the tool from overheating given the 4,000 RPM operating range.

What is the warranty period?

One year limited warranty — see manual for full details.

Can I use the AIR-680UW for dry polishing?

Yes. For 4" dry polishing pads, Alpha recommends pairing the tool with the new Ecoguard G4 dust guard along with a HEPA vacuum for OSHA silica compliance.

Does Alpha offer pneumatic high-speed angle grinders with center water feed?

Yes — the PSC-600 accepts 7/8" arbor tools. Alternatives include the PSG-125 and WBCKIT for cutting, grinding, and profiling with an exterior water-feed system.

No product-specific videos are currently available from the manufacturer or DST.

⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
