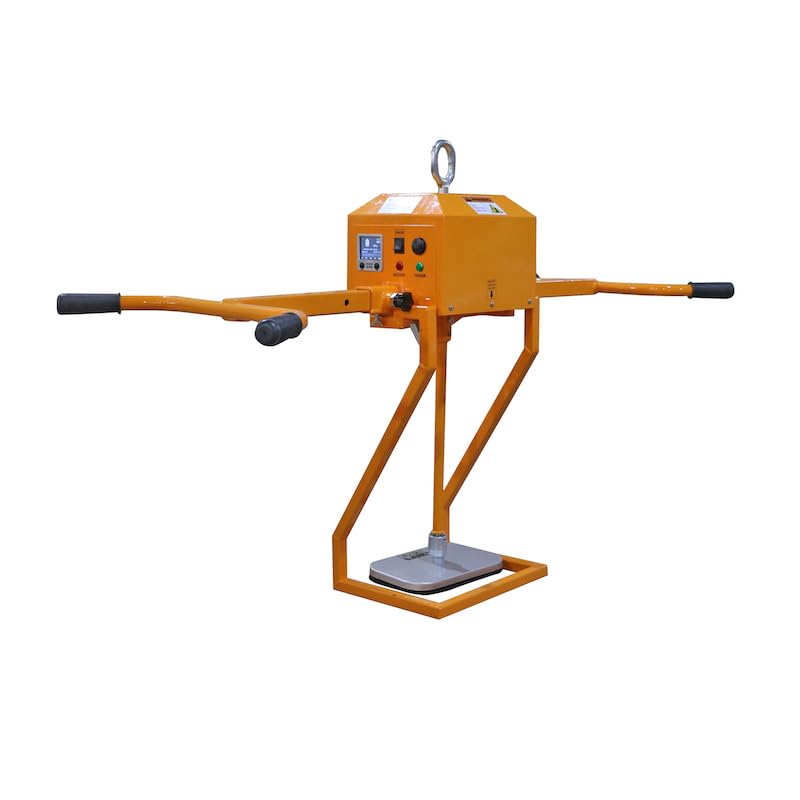

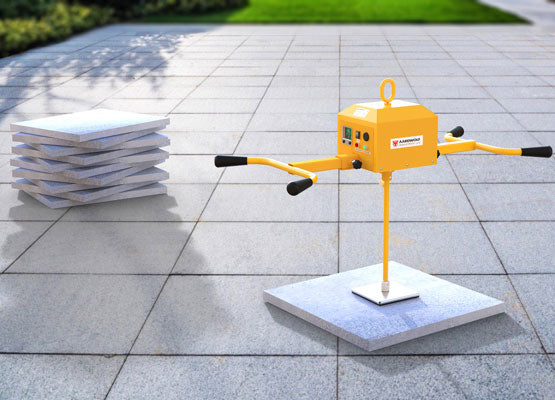

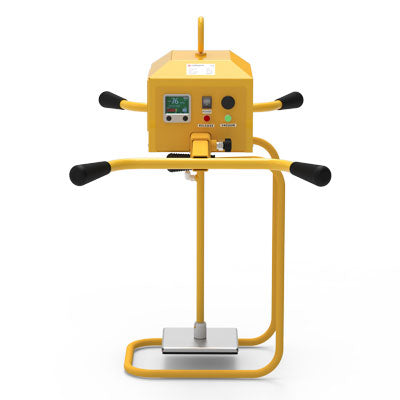

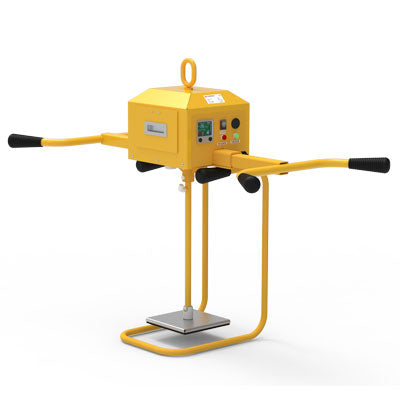

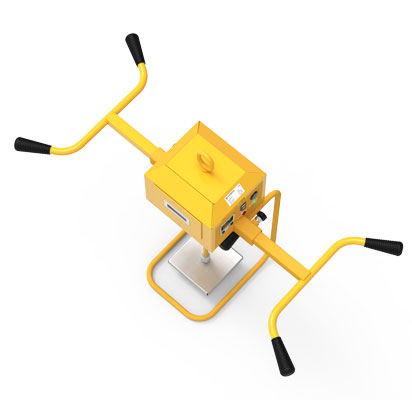

Alpha® Paving Stone Lifter
The Alpha® Paving Stone Lifter saves time and reduces stress on the back and knees when installing paving flags, slabs and large-format stone. Twin vacuum suction plates grip concrete, sandstone, slate and similar materials so a single installer can place heavy units precisely without manual carrying.
Features
- Two interchangeable suction plates — 8" x 8" rated 132 lbs (60 kg) and 10" x 10" rated 264 lbs (120 kg)
- Heavy-duty aluminum head built for daily jobsite use
- Visual low-vacuum alert warns the operator before grip is compromised
- 23.6" (600 mm) handle width supports two-handed control and steady placement
- Works on concrete pavers, sandstone, slate and similar flat materials
- Reduces back and knee strain compared with manual flag lifting
| Part No. | Capacity | Grip Range | UPC |
|---|---|---|---|
| APSL | 132 lbs (60 kg) / 264 lbs (120 kg) | 8" x 8" and 10" x 10" interchangeable suction plates | — |
- Select the suction plate that matches the paver size and weight — 8" x 8" up to 132 lbs, 10" x 10" up to 264 lbs.
- Center the plate squarely on a clean, dry, flat face of the paver before pumping the vacuum.
- Pump the handle until the vacuum gauge or low-vacuum indicator shows a safe seal.
- Lift the paver no higher than 3" to 5" (75–125 mm) above the work area while moving it into position.
- Set the paver down gently, release the vacuum, and lift the lifter clear before adjusting the unit.
- Wipe the suction face after each use to keep grit from scoring the rubber and weakening the seal.
APSL
| Part No. | APSL |
| Country of Origin | Vietnam |
| Property | Detail |
|---|---|
| Handle Width | 23.6" (600 mm) |
| Head Material | Heavy-Duty Aluminum |
| Suction Plates | 8" x 8" (132 lbs / 60 kg) and 10" x 10" (264 lbs / 120 kg) |
| Recommended Lift Height | 3" to 5" (75–125 mm) above work area |
| Vacuum Alert | Visual low-vacuum indicator |
| Country of Origin | Vietnam |
