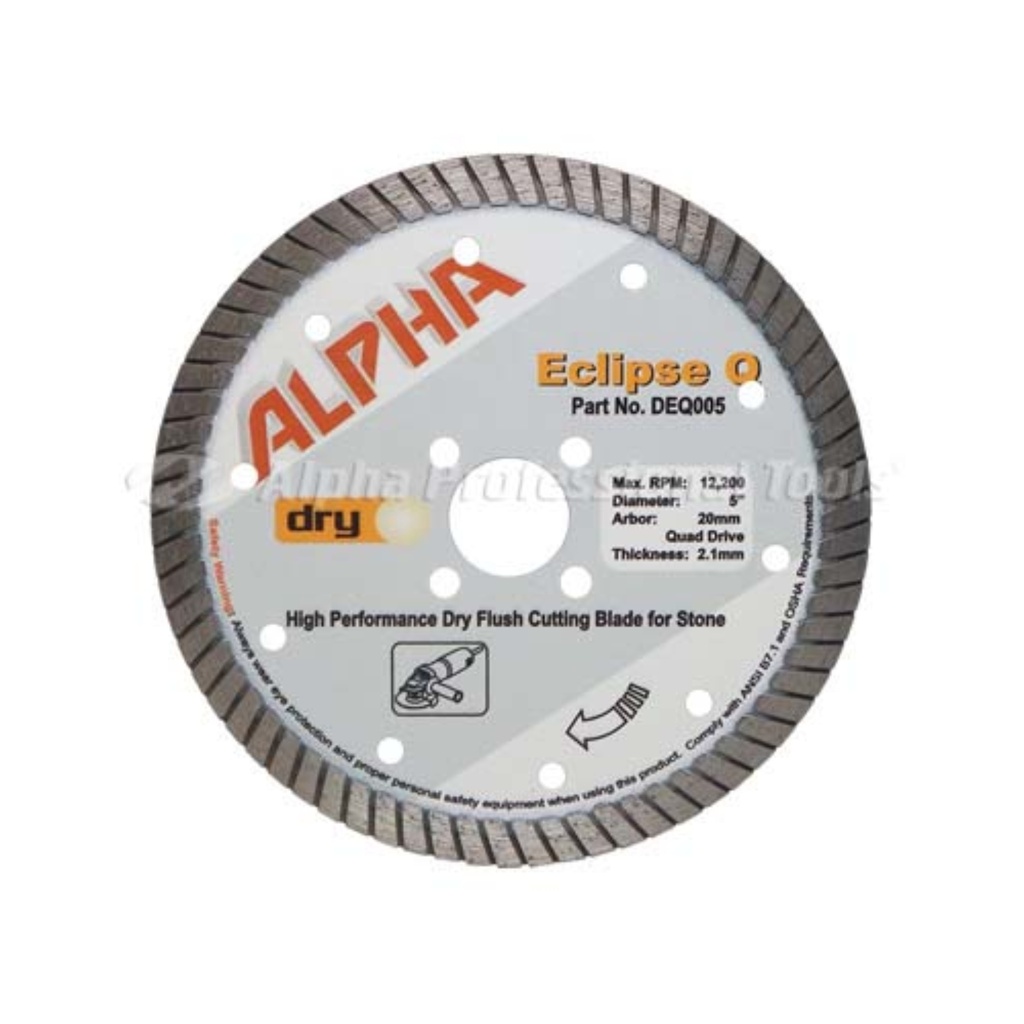

Alpha Eclipse Q High Performance Dry Flush Cutting Blade for Stone (5" Diameter, 7/8" Arbor)

(0 reseña)
  • Specially Designed for Flush Cutting
  • 8mm tall Diamond Layer for a Long Life
  • High-End General Purpose Turbo Blade for Stone Fabricators
  • Consistent Performance without Chipping
  • Requires Quad Drive or Flange Adapter to fit High-Speed Angle Grinder
$ 48,56 $ 48,56
$ 48,56

  • Marca
  • Package Dimensions
Terms and Conditions
Shipping: 2-3 Business Days
Contáctenos
Documentos
Alpha Diamond tools Cutting Blade SDS.pdf Alpha Eclipse Q Helpful Hints.pdf Alpha Eclipse Q How to Use.pdf
Alpha Eclipse Q

Alpha® Eclipse Q is ideal for general purpose use on common building materials such as masonry, concrete and tile. Together with the Quad Drive adapter, this blade is designed to fit on most of the high-speed angle grinders for "flush cutting" commonly found in the stone and construction industries. Similar in design to Alpha® Plus, Alpha® Eclipse Q is versatile and will cut tile, brick, block, concrete, slate and natural stone accurately and cleanly. Tile installers, masons and general contractors will find Alpha® Eclipse Q to be a reliable blade that will meet the challenges of cutting modern building products. The blade is cost-effective, long lasting and provides consistent results without chipping. The Alpha® Eclipse Q has no equal when comparing price to performance.

Part No: DEQ578

Size: 5"

Thickness: 2.1 mm

Maximum RPM: 12,200

Arbor(s): 7/8" Quad Drive​

For Use On: Angle Grinder

Alpha® Eclipse Q is ideal for general purpose use on common building materials such as masonry, concrete and tile. Together with the Quad Drive adapter, this blade is designed to fit on most of the high-speed angle grinders for "flush cutting" commonly found in the stone and construction industries. Similar in design to Alpha® Plus, Alpha® Eclipse Q is versatile and will cut tile, brick, block, concrete, slate and natural stone accurately and cleanly. Tile installers, masons and general contractors will find Alpha® Eclipse Q to be a reliable blade that will meet the challenges of cutting modern building products. The blade is cost-effective, long lasting and provides consistent results without chipping. The Alpha® Eclipse Q has no equal when comparing price to performance.

Features

  • Specially Designed for Flush Cutting
  • 8mm tall Diamond Layer for a Long Life
  • High-End General Purpose Turbo Blade for Stone Fabricators
  • Consistent Performance without Chipping
  • Requires Quad Drive or Flange Adapter to fit High-Speed Angle Grinder
Part No. Size Thickness Maximum RPM Type Arbor(s) Recommended For Threads For Use On
DEQ005 5" 2.1mm 12,200 20mm Quad Drive Angle Grinder
DEQ578 5" 2.1mm 12,200 7/8" Quad Drive Angle Grinder
DEQ006 6" 2.1mm 10,100 20mm Quad Drive Angle Grinder
DEQ678 6" 2.1mm 10,100 7/8" Quad Drive Angle Grinder
DEQ007 7" 2.3mm 8,400 20mm Quad Drive Angle Grinder
DEQ008 8" 2.3mm 7,400 20mm Flange with 8 holes Angle Grinder
AAH-7/8 Aluminum Adapter 7/8" Dry 5/8"-11
AAH-20 Aluminum Adapter 20mm Dry 5/8"-11
BAH-5/8 Brass Adapter 20mm Dry 5/8"-11

EclipseQ FlushCutting

Question :

What materials can be cut using the Eclipse Q blades?

Answer :

The Alpha ® Eclipse Q Series can be used to cut tile, brick, block, concrete, slate and natural stone, including granite.

Question :

On what granite classification do you recommend using the Alpha® Eclipse Q blades?

Answer :

The Eclipse II blades are best suited for Medium to Soft granite classifications; however, the Alpha® Eclipse II blades will also cut Hard granite classifications.

Question :

The Eclipse Q blade is a dry cutting blade, can I use this blade for wet application?

Answer :

Yes. Cutting wet will generally increase blade life and will keep harmful dust (Silica) out of the air.

Question :

What is the cutting edge rim height of the Eclipse Q blades?

Answer :

The Alpha® Eclipse Q blades have a cutting edge rim height of 8mm.

Question :

What is the spindle size required for use of the BAH-5/8 and FAH-5/8 adapters?

Answer :

These adapters have a 5/8”-11 thread size.

Question :

Does Alpha® offer other spindle sizes for the BAH and FAH adapters?

Answer :

Yes. Other spindle sizes are available. Please contact your dealer or Alpha® directly to learn more about these other thread sizes.

Question :

Can I use the Eclipse Q on my polishing tool?

Answer :

No. The RPM speed of polishers is too slow. Diamond blades are recommended to be used on high-speed angle grinders rated for your blade diameter being used.

Question :

What applications are the Eclipse Q blades designed for?

Answer :

The Eclipse Q blades are designed for flush cutting and making 90 degree inside corners.

Question :

Can I use the Eclipse Q blade for groove cutting application?

Answer :

No. We recommend using the Alpha® Groove Cutter, together with the Alpha® Universal Safety Guard Kit for groove cutting application.

Question :

Can I use the Eclipse Q blade without the BAH or FAH adapters?

Answer :

No. The Eclipse Q blade must always be used together with the BAH or FAH adapters. Alpha® does not recommend mounting the Eclipse Q blade directly onto the flange of a power tool without the BAH or FAH adapter due to the countersunk holes drilled within the core of the blade.

PartNo Weight (Packaged) UPS Code Package Dimensions Commodity Code Country Of Origin
DEQ005 0.40 749173460555 5.5in x 5in x 0.25in 8202.91.0000 Japan
DEQ578 0.40 749173461767 5.5in x 5in x 0.25in 8202.91.0000 Japan
DEQ006 0.60 749173460562 6in x 5.5in x 0.25in 8202.91.0000 Japan
DEQ678 0.60 749173461774 6in x 5.5in x 0.25in 8202.91.0000 Japan
DEQ007 0.90 749173460579 7.5in x 7.5in x 0.25in 8202.91.0000 Japan
DEQ008 1.00 749173460586 8.5in x 8.5in x 0.25in 8202.91.0000 Japan
AAH-7/8 0.10 749173450754 5in x 3in x 1in 8466.91.0000 China
AAH-20 0.10 749173450761 5in x 3in x 1in 8466.91.0000 China
BAH-5/8 0.30 749173650024 5in x 3in x 1in 8466.91.0000 Japan

Especificaciones

Marca Alpha
Package Dimensions 5.5" x 5" x 0.25"
