Diameter

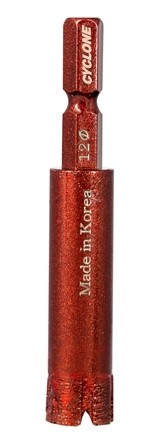

Diamax Cyclone Tile Dry/Wet Non-Core Bit with Hexagon Chuck
The Diamax Cyclone Tile Non-Core Bit features a new dry segment matrix formulated for high-heat performance, enabling both wet and dry drilling on engineered stone, granite, marble, and tile. Optimized for center-fed water at 6,500 RPM when used wet, with dry operation capability for field and site work.
Key Features
- New dry segment matrix for high-heat resistance
- Hexagon chuck fitting for drill compatibility
- Wet or dry use
- 5/8"-11 thread
- Optimal wet RPM: 6,500 with center water feed
Compatible Materials
- Engineered Stone
- Granite
- Marble
Specifications
| Item # | Diameter | Thread | Usable Length | Max RPM (Wet/Dry) |
|---|---|---|---|---|
| CDBYNC316 | 3/16" | 5/8"-11 | 2" | 6,500 wet / 2,000 dry |
| CDBYNC516 | 5/16" | 5/8"-11 | 2" | 6,500 / 2,000 |
| CDBYNC14 | 1/4" | 5/8"-11 | 2" | 6,500 / 2,000 |
| CDBYNC38 | 3/8" | 5/8"-11 | 2" | 6,500 / 6,000 |
| CDBY12 | 1/2" | 5/8"-11 | 2.75" | 8,000 / 6,000 |
| CDBY34 | 3/4" | 5/8"-11 | 2.75" | 8,000 / 6,000 |
About Diamax
Diamax has been manufacturing premium diamond tools for stone fabricators across North America since 1996. Their Cyclone product line is renowned for durability, consistency, and a return ratio of under 1% — trusted daily by professional granite and marble fabrication shops throughout the US and Canada.
Diamax Cyclone Tile Dry/Wet Non-Core Bit with Hexagon Chuck
The Diamax Cyclone Tile Non-Core Bit features a new dry segment matrix formulated for high-heat performance, enabling both wet and dry drilling on engineered stone, granite, marble, and tile. Optimized for center-fed water at 6,500 RPM when used wet, with dry operation capability for field and site work.
Key Features
- New dry segment matrix for high-heat resistance
- Hexagon chuck fitting for drill compatibility
- Wet or dry use
- 5/8"-11 thread
- Optimal wet RPM: 6,500 with center water feed
Compatible Materials
- Engineered Stone
- Granite
- Marble
Specifications
| Item # | Diameter | Thread | Usable Length | Max RPM (Wet/Dry) |
|---|---|---|---|---|
| CDBYNC316 | 3/16" | 5/8"-11 | 2" | 6,500 wet / 2,000 dry |
| CDBYNC516 | 5/16" | 5/8"-11 | 2" | 6,500 / 2,000 |
| CDBYNC14 | 1/4" | 5/8"-11 | 2" | 6,500 / 2,000 |
| CDBYNC38 | 3/8" | 5/8"-11 | 2" | 6,500 / 6,000 |
| CDBY12 | 1/2" | 5/8"-11 | 2.75" | 8,000 / 6,000 |
| CDBY34 | 3/4" | 5/8"-11 | 2.75" | 8,000 / 6,000 |
About Diamax
Diamax has been manufacturing premium diamond tools for stone fabricators across North America since 1996. Their Cyclone product line is renowned for durability, consistency, and a return ratio of under 1% — trusted daily by professional granite and marble fabrication shops throughout the US and Canada.
Especificaciones
| Diameter | 3/16", 1/4", 5/16", 3/8", 1/2" |
