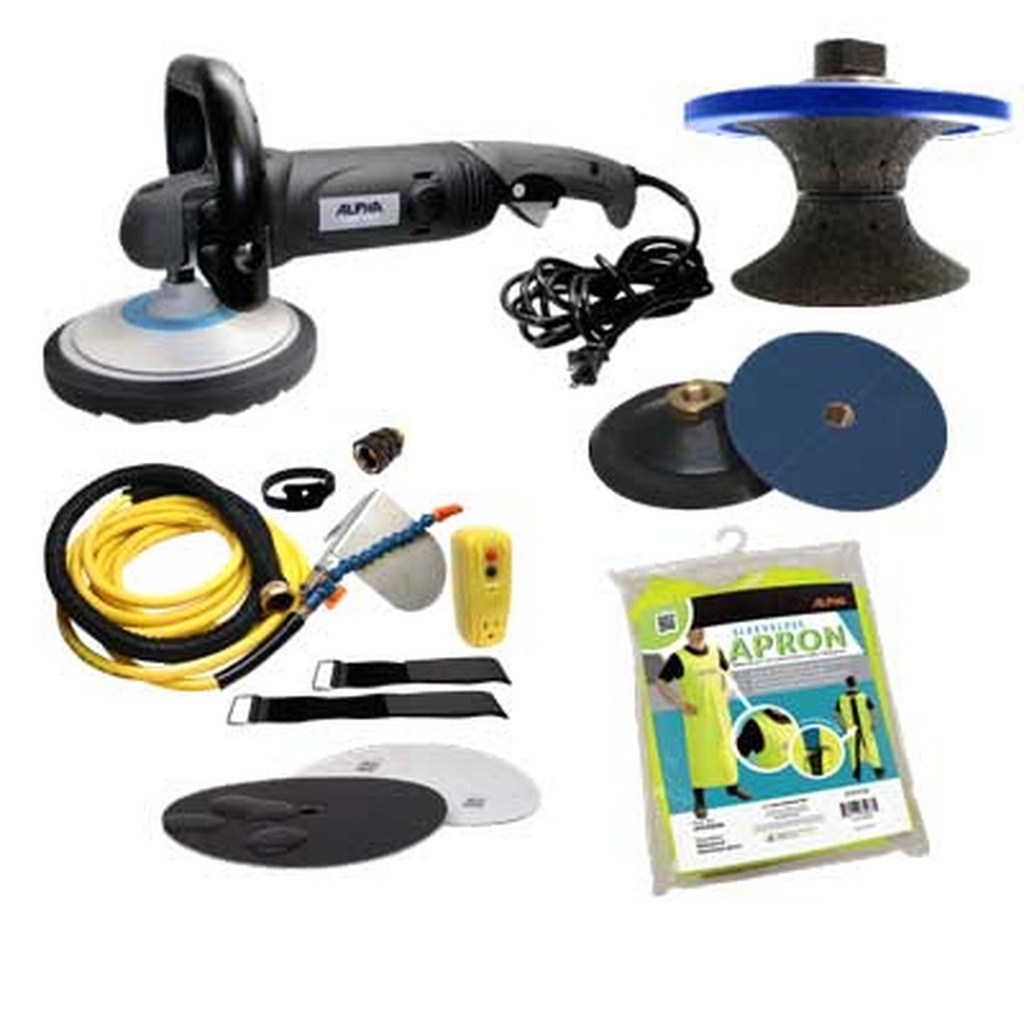

Alpha® BMP Pool Coping Kit
The Alpha® BMP Pool Coping Kit is a complete turnkey edge-profiling system designed for 2" (5 cm) thick pool coping. It combines the BMP-700 brushless variable-speed rotary polisher with the 2" Profiler V full-bullnose wheel, a wet sanding/polishing kit, backer pad, sandpaper, and waterproof apron — everything a contractor needs to produce finished bullnose edges on granite, engineered stone, marble, limestone, concrete, and porcelain pavers in-house.
Features
- Complete bullnose edge-profiling system for 2" pool coping
- BMP-700 brushless rotary polisher — 700–3000 RPM variable, soft start
- 2" Profiler V full-bullnose profile wheel (PFV501)
- Includes Wet Sanding/Polishing Kit (WSPKIT) with 15 ft all-weather hose
- Flexible 5" backer pad (5/8"-11) and 50-pack of #80 wet sandpaper
- Waterproof sleeveless apron included
- Works on granite, engineered stone, marble, limestone, concrete, porcelain
- One-year warranty on motor
| Part No. | Component | Weight | Package Dimensions | Origin |
|---|---|---|---|---|
| 5480-6300 | Complete BMP Pool Coping Kit (vendor Part No.) | 20.50 lbs | 28" x 10.5" x 10.5" | Mixed |
| BMP-700 | Variable Speed Rotary Polisher | 10.10 lbs | 21" x 4" x 6.5" | China |
| WSPKIT | Wet Sanding / Polishing Kit | 2.90 lbs | 9.25" x 9.25" x 4" | China |
| PFV501 | Profiler V — 2" Full Bullnose | 2.60 lbs | 5.5" x 6" x 5.25" | China |
| GP55/8PD | Flexible Backer Pad 5" (5/8"-11) | 0.60 lbs | 5" x 5" x 1.5" | Japan |
| MP50080 | Sandpaper 5" #80, 50-Pack | 1.20 lbs | 5.25" x 5.25" x 4" | Japan |
| APRON2000 | Waterproof Sleeveless Apron | 1.75 lbs | 12" x 18" x 1" | Vietnam |
- Connect the WSPKIT water hose to a pressurized water source and to the BMP-700.
- Thread the Profiler V (PFV501) wheel onto the 5/8"-11 spindle and verify water flow.

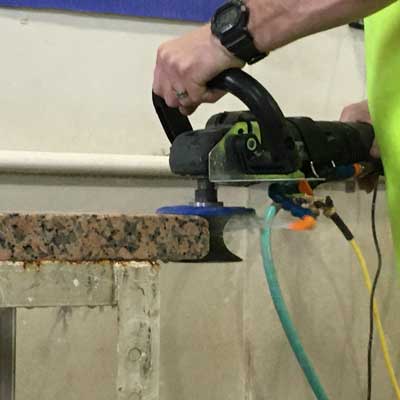

- Profile the 2" edge in multiple light passes at 3000 RPM, keeping the wheel wet.
- Switch to the 5" flexible backer pad with #80 wet sandpaper to smooth the profile.
- Step through finer grits (sold separately) for the desired polish level.
- Always operate wet — dry use will overheat the nylon guide and is not OSHA-compliant.
Complete Pool Coping Kit (2" / 5 cm) — 5480-6100
| Part No. | 5480-6100 |
| Type | Complete Pool Coping Kit (2" / 5 cm) |
| Recommended For | Edge profiling and polishing of 2"-thick pool coping in granite, engineered stone, marble, limestone, concrete, porcelain |
| Packaged Weight | 20.50 lbs |
| Package Dimensions | 28" x 10.5" x 10.5" |
| Country of Origin | Mixed (see component list) |
| Property | Detail |
|---|---|
| Voltage | 120 V, single-phase 50/60 Hz |
| Amperage | 11.5 A |
| Power | 1200 W rated / 1800 W max |
| Speed | 700–3000 RPM, variable with soft start |
| Spindle | 5/8"-11 |
| Cord | 25 ft, 14 AWG |
| Max Backing Plate | 7" (178 mm) |
| Max Disc Diameter | 9" (228 mm) |
| Polisher Net Weight | 4.4 lbs (1.98 kg) |
| Water Hose | 15 ft all-weather, rated -40°F to +140°F |
| Profile Thickness | 2" (5 cm) full bullnose |
| Operation | Wet only |
| Warranty | One year on motor |
Can this kit be used on granite pavers?
Yes. The system profiles granite well; for the final sanding step, flexible diamond polishing discs are recommended over #80 sandpaper for hard stone.
Can the kit be operated dry?
No. Dry operation overheats the Profiler V nylon guide and is not OSHA silica-compliant. Always run wet with the WSPKIT connected.
What RPM should I use for profiling and sanding?
The full 700–3000 RPM range is suitable. Most operators profile and sand at the upper end of the range.
What is the warranty?
One year on the BMP-700 motor. See the included manual for full terms.
How do I get parts lists and schematics?
Visit alpha-tools.com or call Alpha at 800-648-7229.
Travertine pores open after profiling — what should I do?
Apply travertine filler (available from hardscape suppliers) to the profiled edge before sanding with #80 paper.
How to Make Pool Coping
