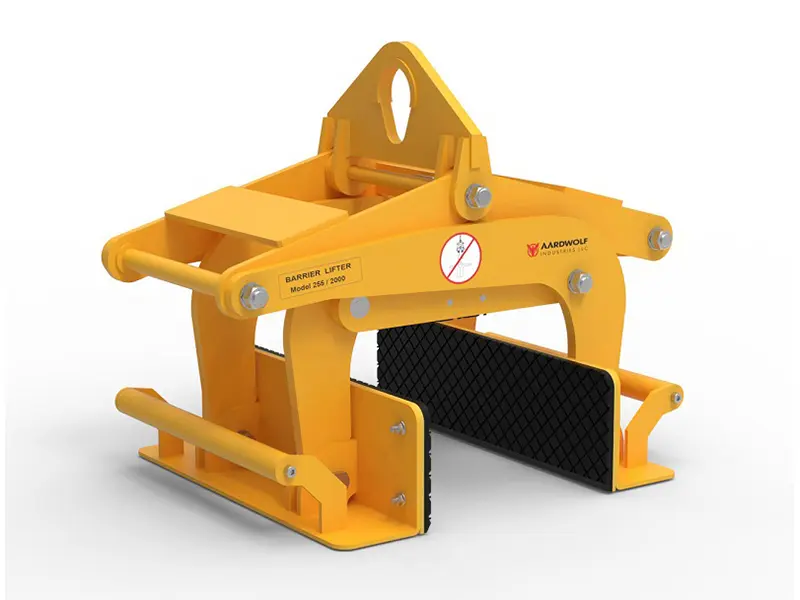

Aardwolf Barrier Lifter — ABL Series

The Aardwolf Barrier Lifter is a gravity-controlled clamp for lifting concrete barriers, sandstone blocks, and granite slabs. The clamp opens when rested and closes automatically when lifted. Available in three capacities for road, landscape, and stone-yard work.

Features

  • ABL-255-2000: 4,409 lb (2,000 kg) working load, 1.46 in lifting ring
  • ABL-255-3000: 6,614 lb (3,000 kg) working load, 1.77 in lifting ring
  • ABL-360-5000: 11,023 lb (5,000 kg) working load, 4 in to 14.2 in jaw range
  • Auto-lock gravity clamp — opens when rested, closes when lifted
  • Rubber pads and rubber-lined bar protect the load from chipping
  • Single overhead lifting eye for crane or hoist attachment
  • Heavy-duty steel build — ABL-360-5000 weighs approximately 939 lb

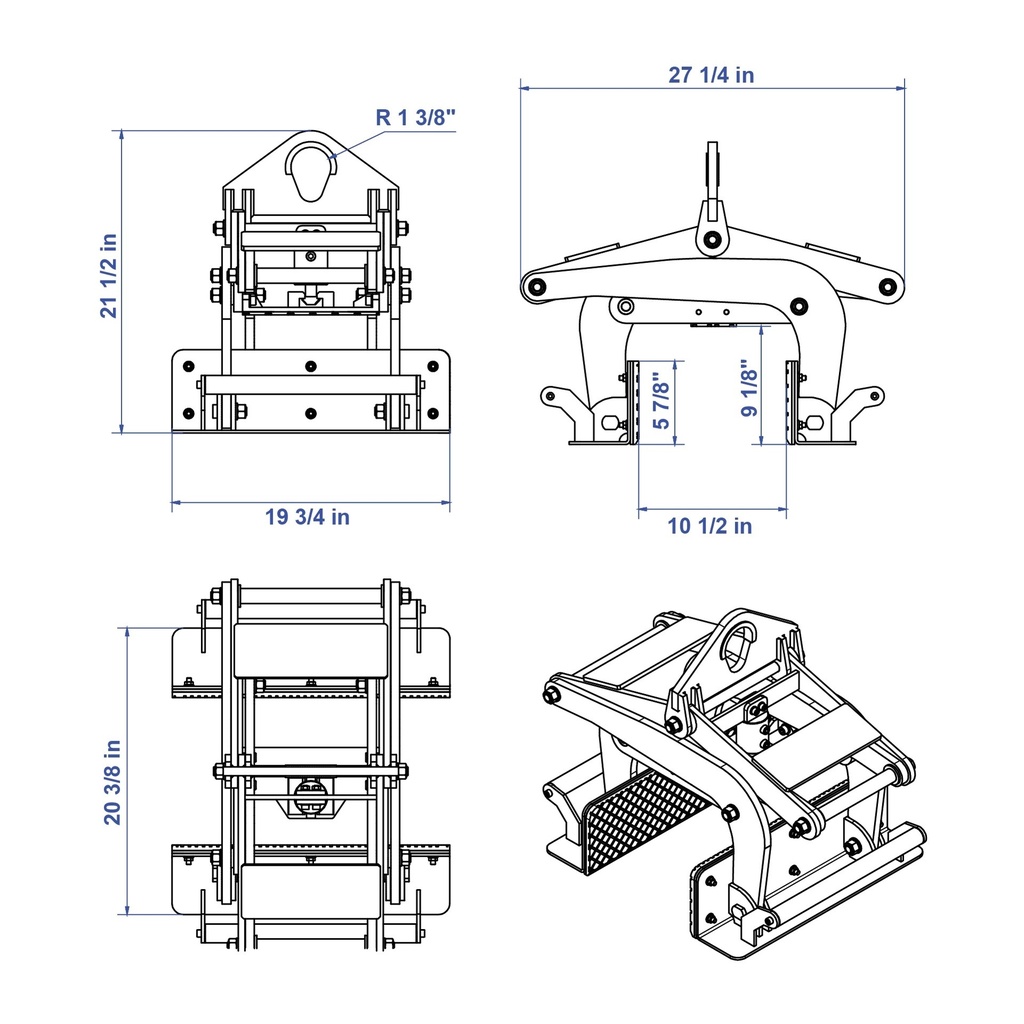

ABL-255-2000 — 4,408 lb / 2,000 kg Capacity
Property Detail
Part Number ABL-255-2000
Working Load 4,408 lb (2,000 kg)
Jaw Range 4 in to 10 in (100–255 mm)
Net Weight 185 lb (84 kg)
Locking Gravity auto-lock

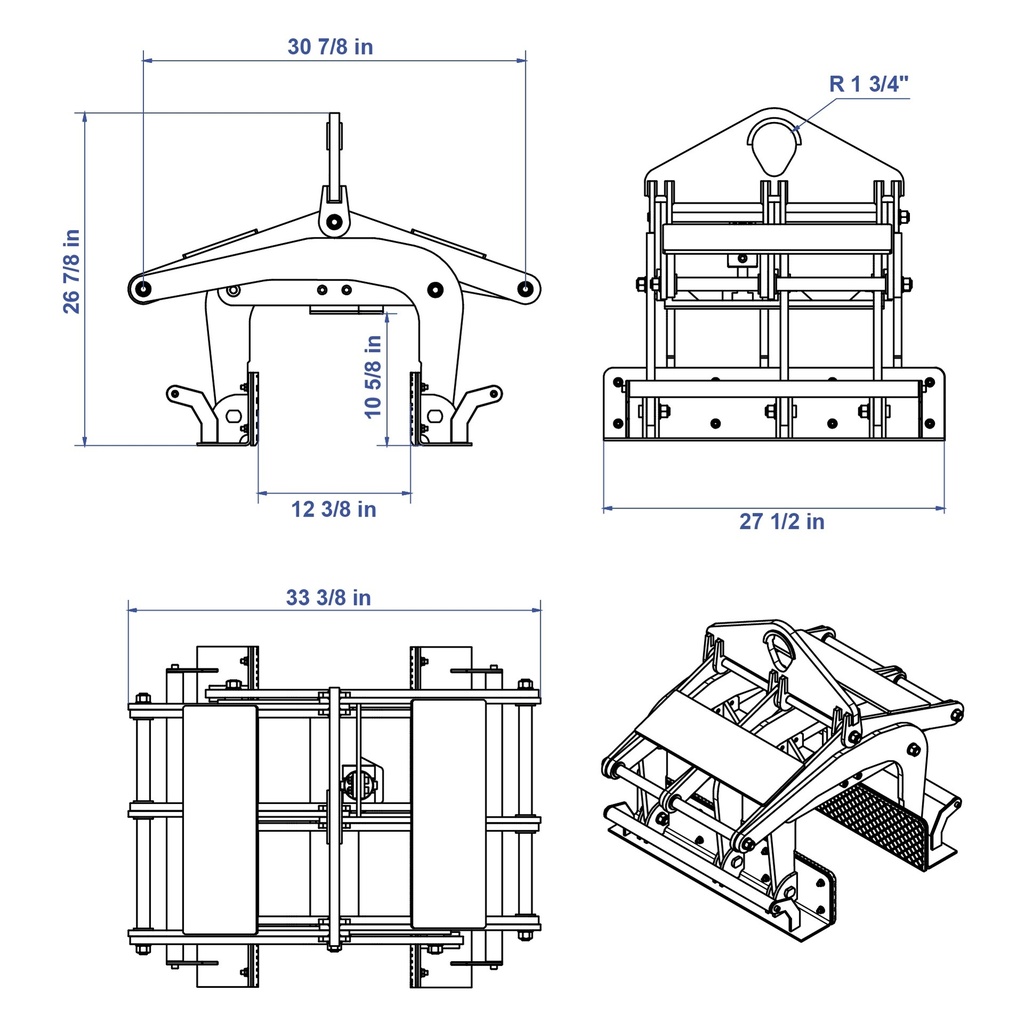

ABL-255-3000 — 6,614 lb / 3,000 kg Capacity
Property Detail
Part Number ABL-255-3000
Working Load 6,614 lb (3,000 kg)
Jaw Range 4 in to 10 in (100–255 mm)
Locking Gravity auto-lock
ABL-360-5000 — 11,023 lb / 5,000 kg Capacity — Wide Jaw
Property Detail
Part Number ABL-360-5000
Working Load 11,023 lb (5,000 kg)
Jaw Range 4 in to 14.2 in (100–360 mm)
Weight ~939 lb (426 kg)
Locking Gravity auto-lock
  1. Lower the barrier lifter onto the load until the clamp rests open.
  2. Center the load between the jaws with rubber pads against the surface.
  3. Lift slowly with a crane or hoist; the clamp closes under load.
  4. Move the load to its destination keeping it low and steady.
  5. Lower onto the receiving surface so the clamp rests and releases.
  6. Wear PPE and keep clear of suspended loads at all times.

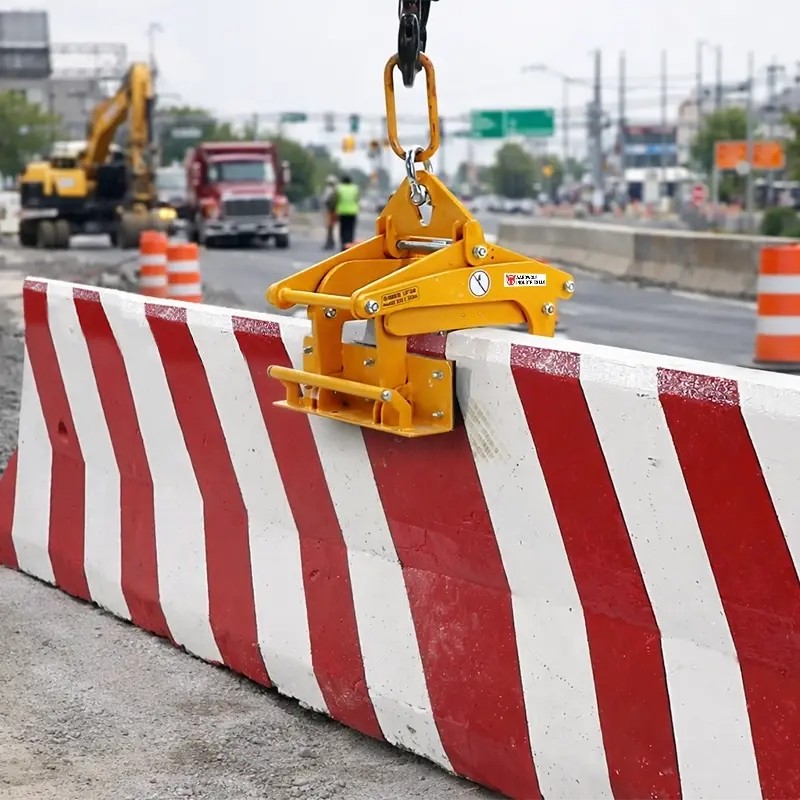

Concrete road barriers, sandstone blocks, granite slabs, and other dense, parallel-faced loads.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Specifications

Model ABL-255-2000, ABL-255-3000, ABL-360-5000
