Aardwolf Bow Shackle — BS13T / BS30T

The Aardwolf Bow Shackle is a load-rated lifting shackle for use with stone lifters and overhead lifting gear. Each shackle is stamped with its working load limit and tested to Australian Standard AS 2741. Available in 1.3-ton and 3.0-ton capacities.

Features

  • BS13T working load limit: 3,307 lb (1.3 tons)
  • BS30T working load limit: 7,165 lb (3.0 tons)
  • Material grade S/6, tested to AS 2741
  • Load rating stamped on the body for easy verification
  • Secure collar pinhole for tie-wire safety locking
  • BS30T net weight: approximately 4.85 lb (2.2 kg)
  • Compatible with Aardwolf slab lifters and standard rigging hardware

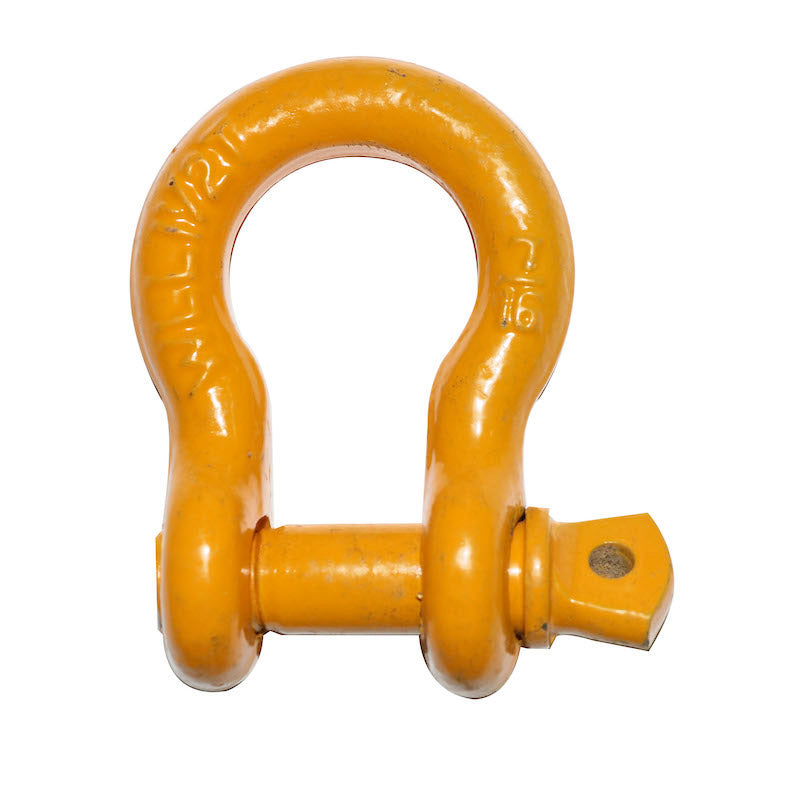

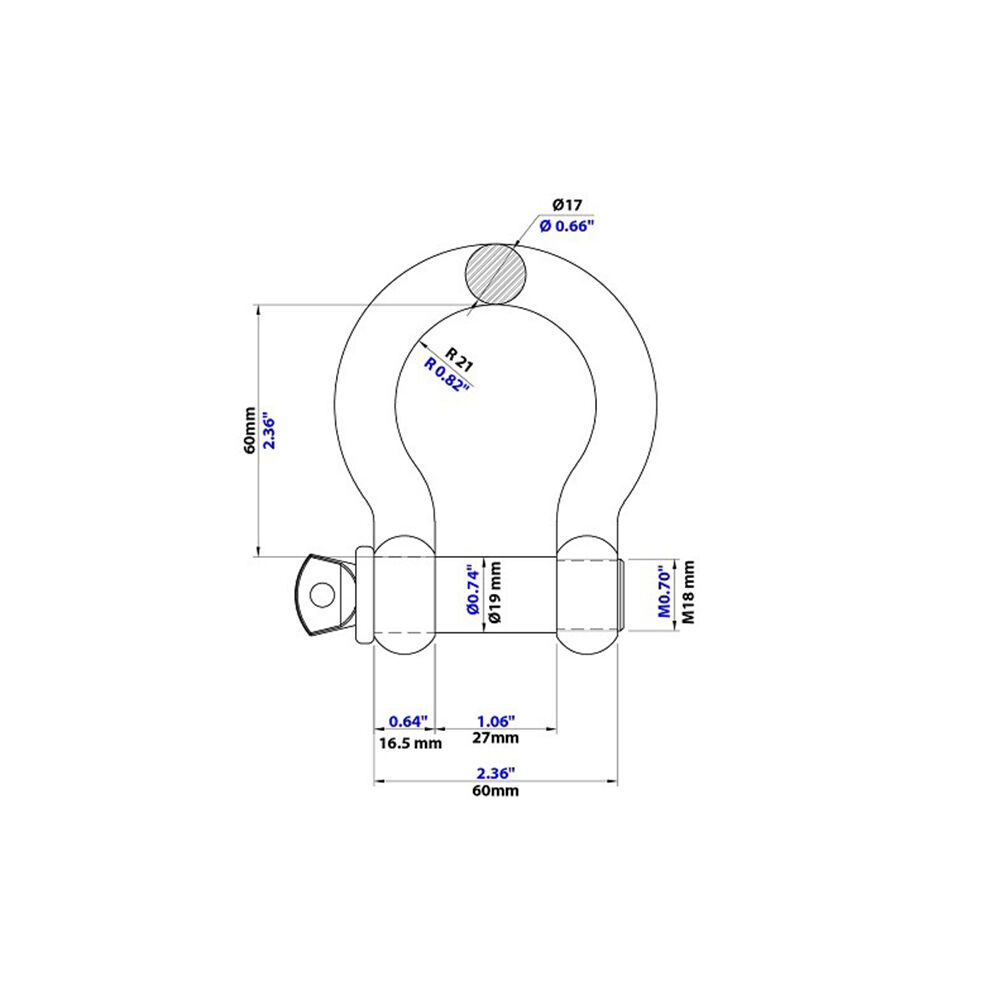

BS13T — 1.3 ton / 3,307 lb Capacity
Property Detail
Part Number BS13T
Working Load 3,307 lb (1.3 tons / 1,500 kg)
Standard AS 2741, Material Grade S/6
Finish Powder-coat

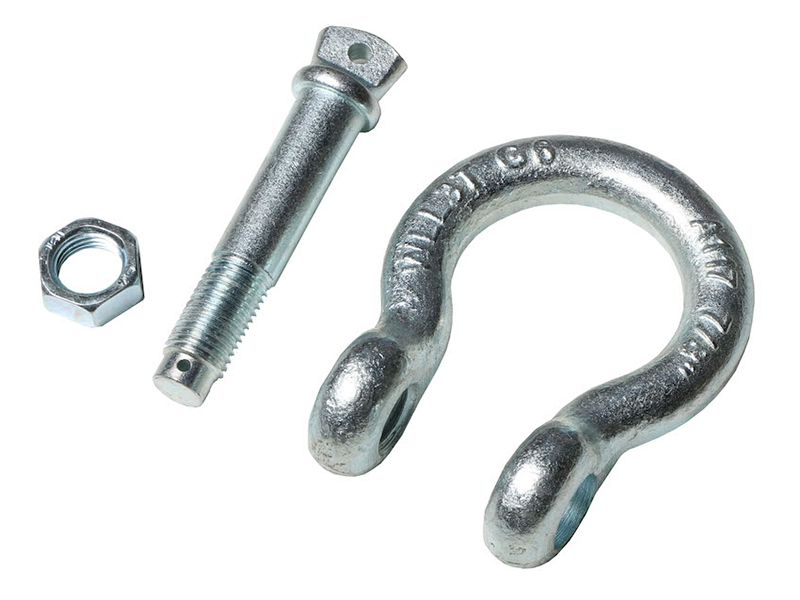

BS30T — 3.0 ton / 7,165 lb Capacity
Property Detail
Part Number BS30T
Working Load 7,165 lb (3.0 tons / 3,250 kg)
Weight ~4.85 lb (2.2 kg)
Standard AS 2741, Material Grade S/6
Finish Powder-coat
  1. Inspect the shackle for cracks, deformation, and pin wear before each use.
  2. Confirm the stamped load rating exceeds the planned lift weight.
  3. Insert the shackle pin through the rigging eye and the lifter attachment.
  4. Tighten the pin fully and secure with tie wire through the collar pinhole.
  5. Apply load gradually and watch for any twisting under tension.
  6. Wear PPE and keep clear of the suspended load.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Specifications

Model BS13T, BS30T
Brand Aardwolf
Package Dimensions 6" x 6" x 6"
