Model

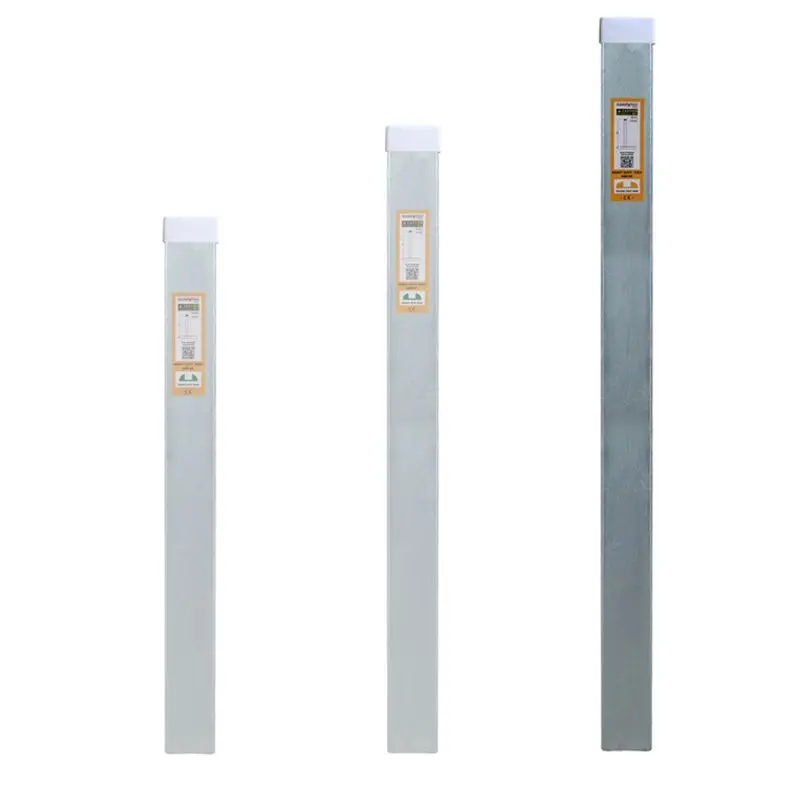

Aardwolf Bundle Rack Posts ABR — 47 in / 55 in / 63 in
The Aardwolf ABR posts are heavy-duty rectangular-tube steel uprights for the Aardwolf bundle rack system. Each post is rectangular tube with a 5 mm wall and a minimum yield of 345 MPa. Available in three heights to match common slab bundle sizes.
Features
- ABR06: 47 in (1,200 mm) tall, ~27.6 lb (12.5 kg)
- ABR07: 55 in (1,400 mm) tall, ~32.4 lb (14.7 kg)
- ABR08: 63 in (1,600 mm) tall, ~37.3 lb (16.9 kg)
- Rectangular tube steel, 100 x 50 mm (3.9 in x 2 in) cross-section
- 5 mm wall thickness with 345 MPa minimum yield strength
- Compatible with the Aardwolf ABR01 bundle rack rails
- Insert anywhere along the rails at 4.4 in pitch
ABR06 — 47 in / 1,200 mm Post
| Property | Detail |
|---|---|
| Part Number | ABR06 |
| Height | 47 in (1,200 mm) |
| Cross-Section | 3.9 in x 2 in (100 x 50 mm) |
| Wall Thickness | 5 mm |
| Net Weight | 27.6 lb (12.5 kg) |
| Yield Strength | 345 MPa |
ABR07 — 55 in / 1,400 mm Post
| Property | Detail |
|---|---|
| Part Number | ABR07 |
| Height | 55 in (1,400 mm) |
| Cross-Section | 3.9 in x 2 in (100 x 50 mm) |
| Wall Thickness | 5 mm |
| Net Weight | 27.8 lb (12.6 kg) |
| Yield Strength | 345 MPa |
ABR08 — 63 in / 1,600 mm Post
| Property | Detail |
|---|---|
| Part Number | ABR08 |
| Height | 63 in (1,600 mm) |
| Cross-Section | 3.9 in x 2 in (100 x 50 mm) |
| Wall Thickness | 5 mm |
| Net Weight | 32.4 lb (14.7 kg) |
| Yield Strength | 345 MPa |
- Choose post height to suit the slab bundle dimensions in storage.
- Insert each post into the rail socket and verify it seats fully.
- Space posts evenly to define bays sized for the bundles being stored.
- Lean bundles against the posts at approximately 4 degrees inward.
- Inspect posts periodically for deformation and replace if bent.
- Wear gloves and steel-toe boots when installing posts and bundles.
Specifications
| Model | ABR06, ABR07, ABR08 |
