Aardwolf Hand Vacuum Cup

(0 review)
$ 123.99 $ 123.99
$ 123.99

  • Brand
  • Model
  • Package Dimensions
Terms and Conditions
Shipping: 2-3 Business Days
Contact Us

Aardwolf Hand Vacuum Cup

The Aardwolf Hand Vacuum Cup is a manual single-pad suction lifter for positioning slabs, glass, and panel materials by hand. The pump-action handle creates suction without electricity or compressed air. HVC and HVC01 models cover standard hand lifting tasks for stone fabricators, glaziers, and tile installers.

Features

  • Manual pump handle creates vacuum without power or air supply
  • HVC and HVC01 models for different pad and grip configurations
  • Rubber suction pad seals to smooth, non-porous surfaces
  • Lightweight body designed for one-handed positioning
  • Quick-release lever drops the load when seated in place
  • Ideal for stone slab placement, glass setting, and panel handling

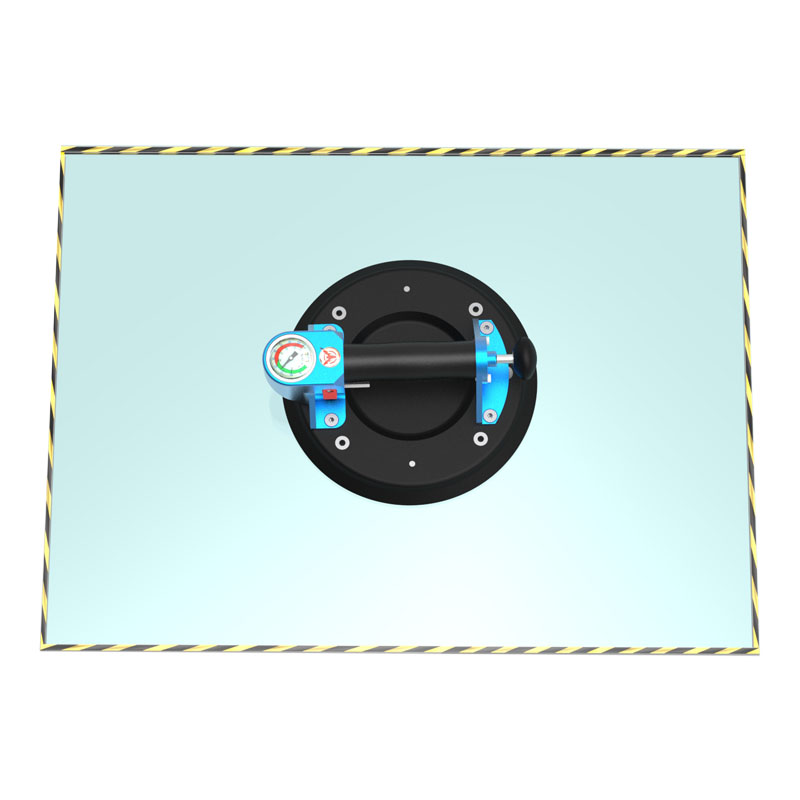

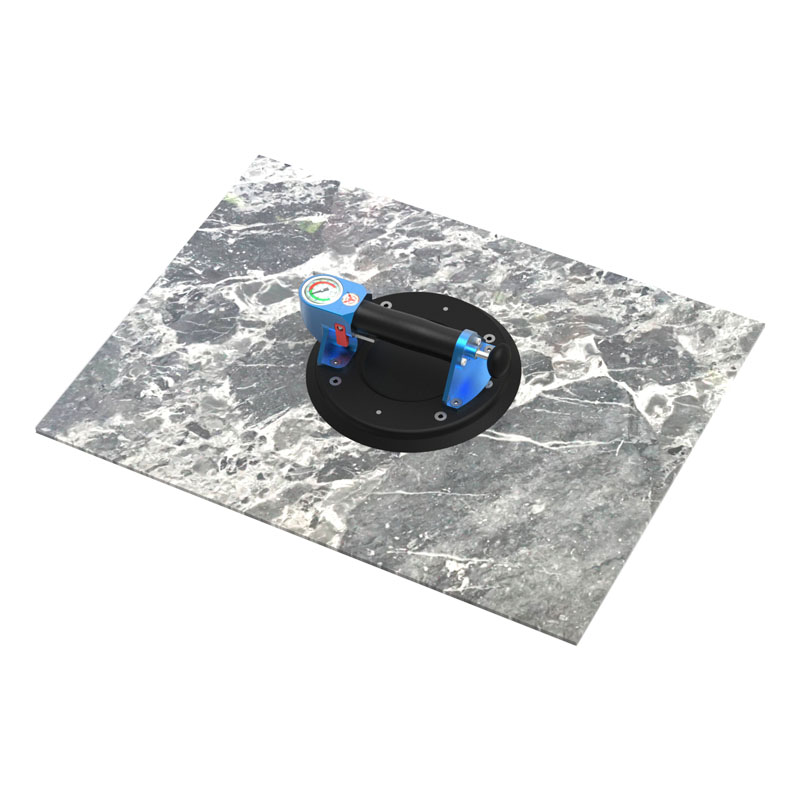

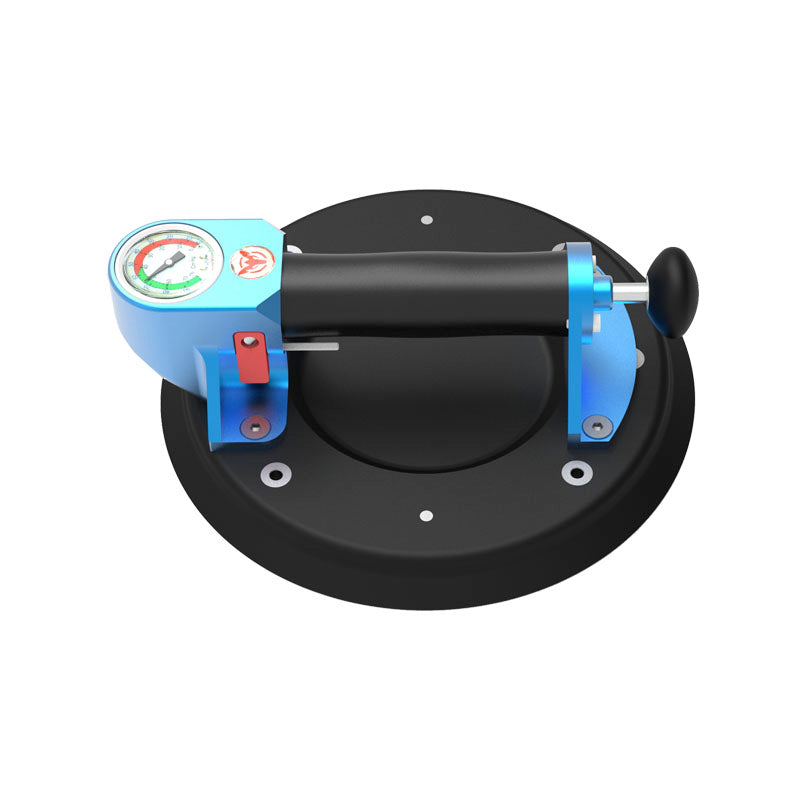

HVC — HVC — With Vacuum Gauge, 265 lb
Property Detail
Lifting Capacity 265 lb (120 kg)
Cup Diameter 8.7" (220 mm)
Vacuum Gauge Yes (integrated pressure gauge)
Pump Manual pull-pump, 3 strokes to high vacuum
Weight 3.2 lb (1.46 kg)
Body Aluminum, rust-resistant
Use Flat, smooth, non-porous surfaces

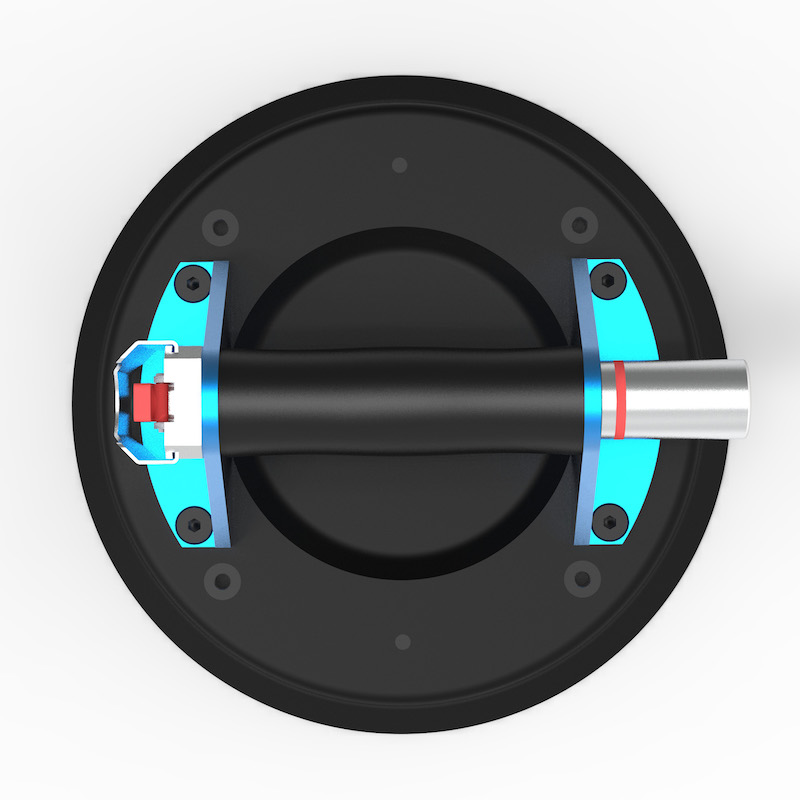

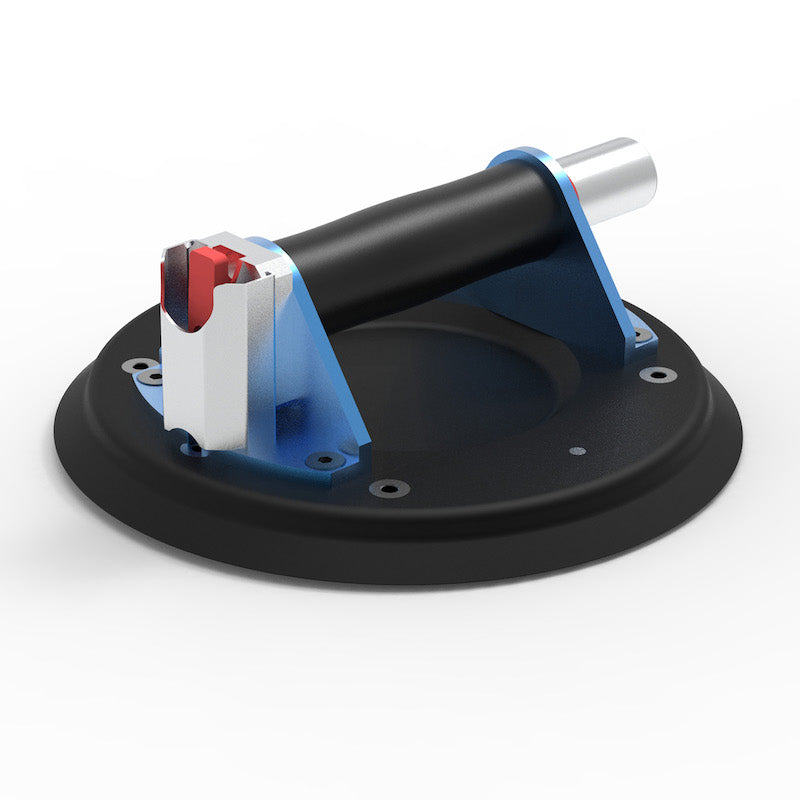

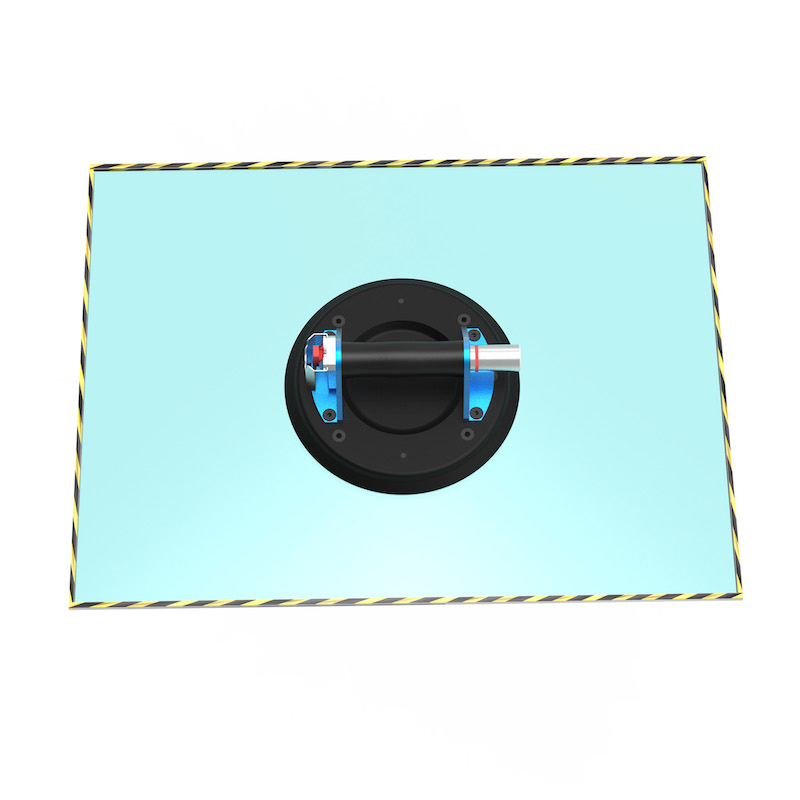

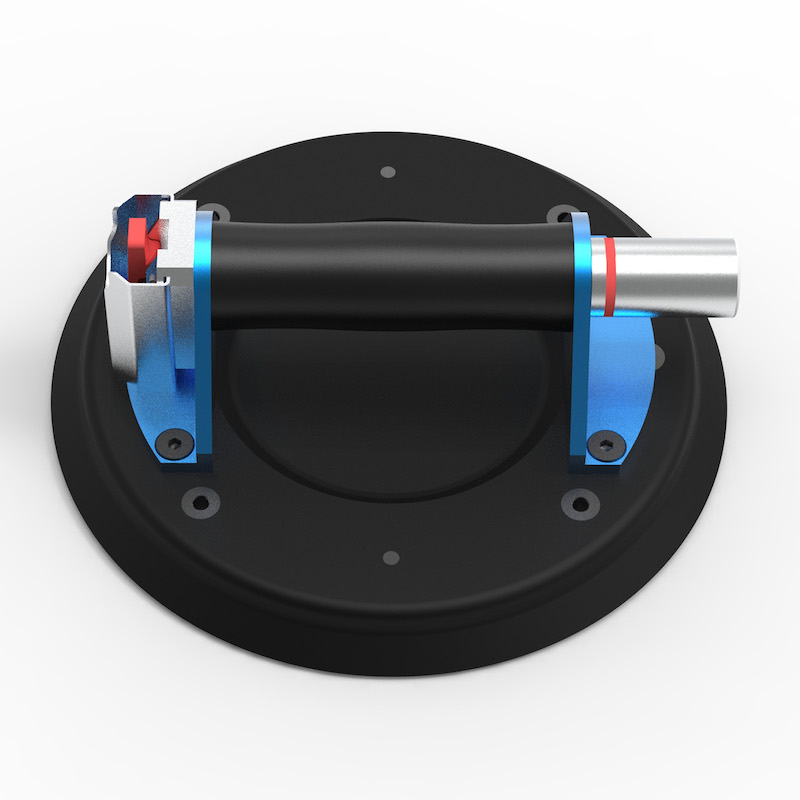

HVC01 — HVC01 — Without Vacuum Gauge
Property Detail
Vacuum Gauge None (lighter, value model)
Pump Manual push-pump, 3 strokes to vacuum
Body Aluminum, rust-resistant
Use Flat, smooth, non-porous surfaces (glass, metal, stone)
  1. Wipe the slab surface clean of dust, water, and debris.
  2. Center the cup on the slab and press down to seat the rubber seal.
  3. Pump the handle until full vacuum is achieved.
  4. Lift and position the slab — check seal indicator periodically.
  5. Activate the release lever to break suction once the slab is set.
  6. Wear gloves and eye protection during stone handling.

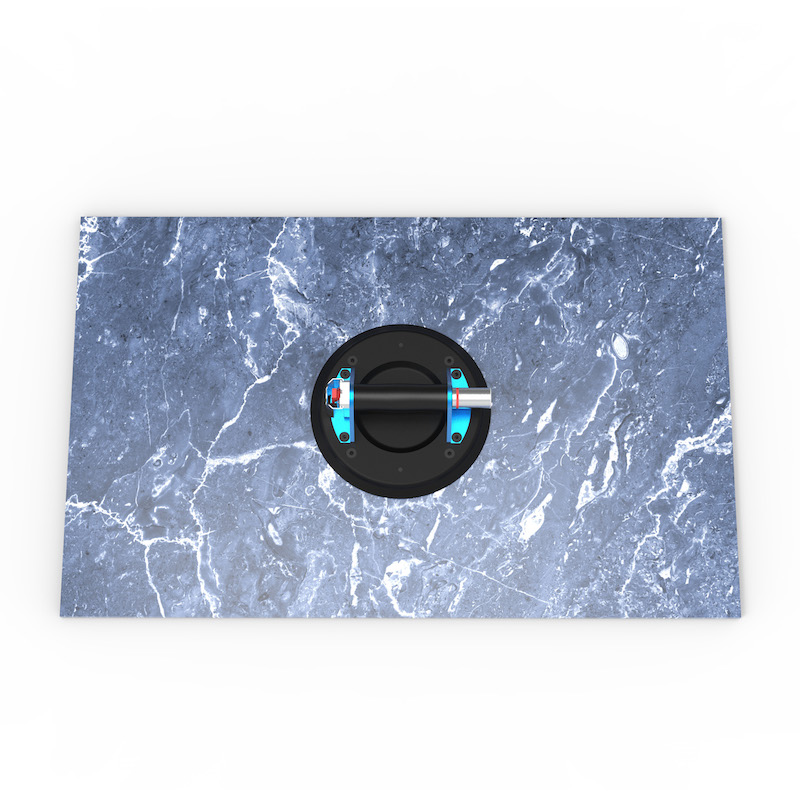

Suits granite, marble, quartz, porcelain slabs, and flat glass. Best on smooth, clean, non-porous surfaces. Not suitable for textured, leathered, or honed finishes where the seal cannot fully engage.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Specifications

Model HVC01, HVC
Brand Aardwolf
Package Dimensions 14" x 10" x 10"
