Aardwolf Mono Mechanical Vacuum Lifter (AMMVL Series)

The Aardwolf AMMVL Mono Mechanical Vacuum Lifter is a hand-pumped single-pad suction lifter for stone, glass, and panels. Mechanical pump action requires no power source. Four models from AMMVL150 to AMMVL650 cover increasing capacity, with AMMVL150H featuring a heavy-duty handle.

Features

  • Mechanical hand-pump vacuum — no electricity or compressed air needed
  • Four models: AMMVL150, AMMVL150H, AMMVL270, AMMVL650
  • Numeric suffix indicates rated lifting capacity in kilograms
  • AMMVL150H heavy-duty handle variant for higher daily duty cycles
  • Vacuum gauge gives visual confirmation of seal pressure
  • Compatible with crane hooks, gantries, and forklift booms

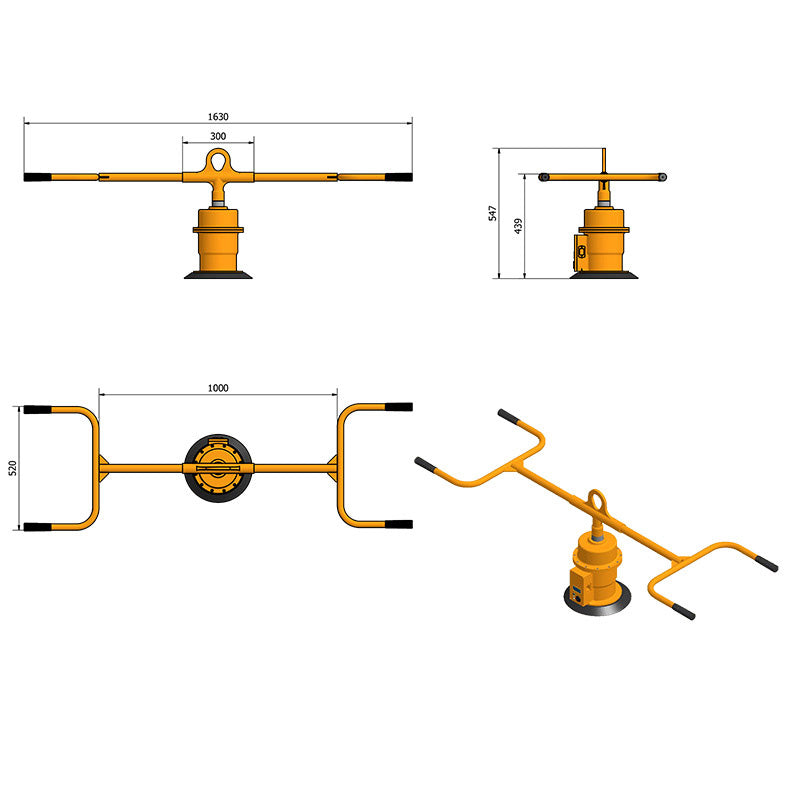

AMMVL150 — Mono Mechanical Vacuum Lifter 150 (Swivel Hook)
Property Detail
Working Load Limit 331 lb (150 kg)
Top Fitting Swivel hook
Net Weight 24.2 lb
Gross Weight 34 lb
Packaging 12.6 x 12.6 x 15.3 in
Power Self-powered, self-cycling (no power source required)
AMMVL150H — Mono Mechanical Vacuum Lifter 150 (With Handle)
Property Detail
Working Load Limit 331 lb (150 kg)
Top Fitting Two-person carrying handle
Net Weight 31 lb
Gross Weight 50 lb
Packaging 32.7 x 11 x 22.4 in
Power Self-powered, self-cycling (no power source required)
AMMVL270 — Mono Mechanical Vacuum Lifter 270
Property Detail
Working Load Limit 595 lb (270 kg)
Top Fitting Top swivel hook
Material Aluminum body
Power Self-powered, self-cycling (no power source required)
Application Diamond-sawn / polished granite, engineered stone, metals, plastics, fiberglass
AMMVL650 — Mono Mechanical Vacuum Lifter 650
Property Detail
Working Load Limit 1,433 lb (650 kg)
Pad Size 17.7 in dia. (seal to seal)
Net Weight 79 lb
Gross Weight 141 lb
Dimensions 40 in L x 22 in W x 35.4 in H
Features Audio alarm, vacuum gauge, self-powered/self-cycling
  1. Wipe the slab clean of dust, water, and slurry.
  2. Center the pad on the slab and press down to seat the rubber seal.
  3. Pump the handle until the gauge reaches the safe zone.
  4. Connect the upper eye to a crane hook, gantry, or forklift boom.
  5. Lift slowly and stay below the model's rated capacity.
  6. Wear gloves, hard hat, and steel-toe boots during all lifts.

Suits granite, marble, quartz, porcelain slabs, and flat glass. Best on smooth, non-porous surfaces. Not for textured or leathered finishes.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Specifications

Model AMMVL150, AMMVL150H, AMMVL270, AMMVL650, AMMVL650
Brand Aardwolf
Package Dimensions 36" x 36" x 17"
