Model

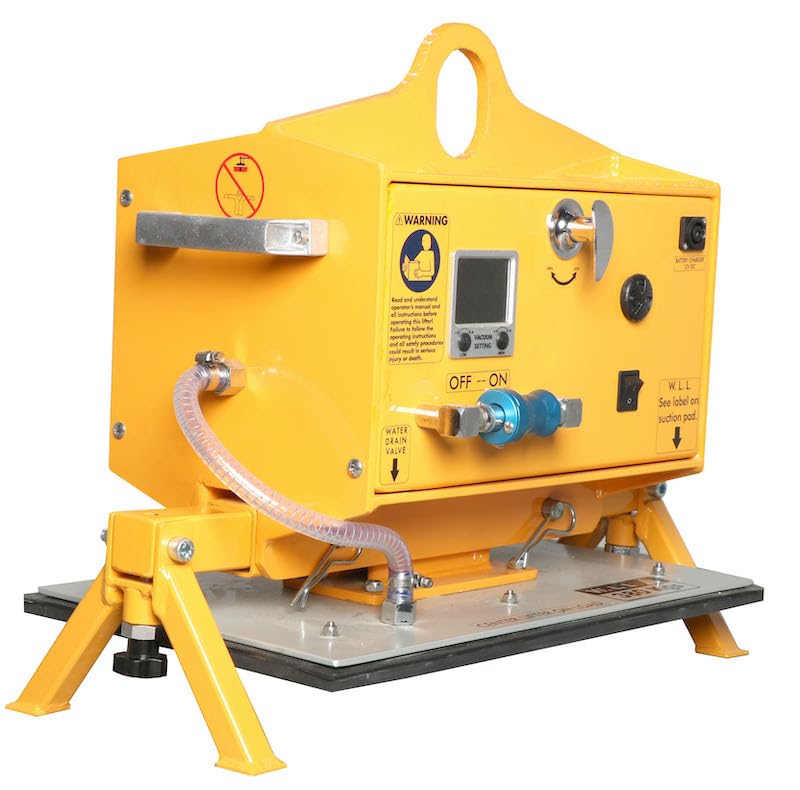

Aardwolf Vacuum Block Lifter — Heavy-Duty Block Handling
The Aardwolf Vacuum Block Lifter handles raw stone blocks using vacuum suction instead of chains or slings. The pad seals against rough block faces and lifts vertically with crane or excavator support. Two capacities: AVBL380 (838 lb) and AVBL1000 (2,205 lb).
Features
- Vacuum lifting eliminates manual rigging on rough blocks
- AVBL380 — 838 lb (380 kg) working load
- AVBL1000 — 2,205 lb (1,000 kg) working load
- Heavy-duty rubber pad seals on quarry-finished stone
- Built-in vacuum reserve and audible low-vacuum alarm
- Crane or excavator boom mounting via top eye
- Manometer gauge for live vacuum monitoring

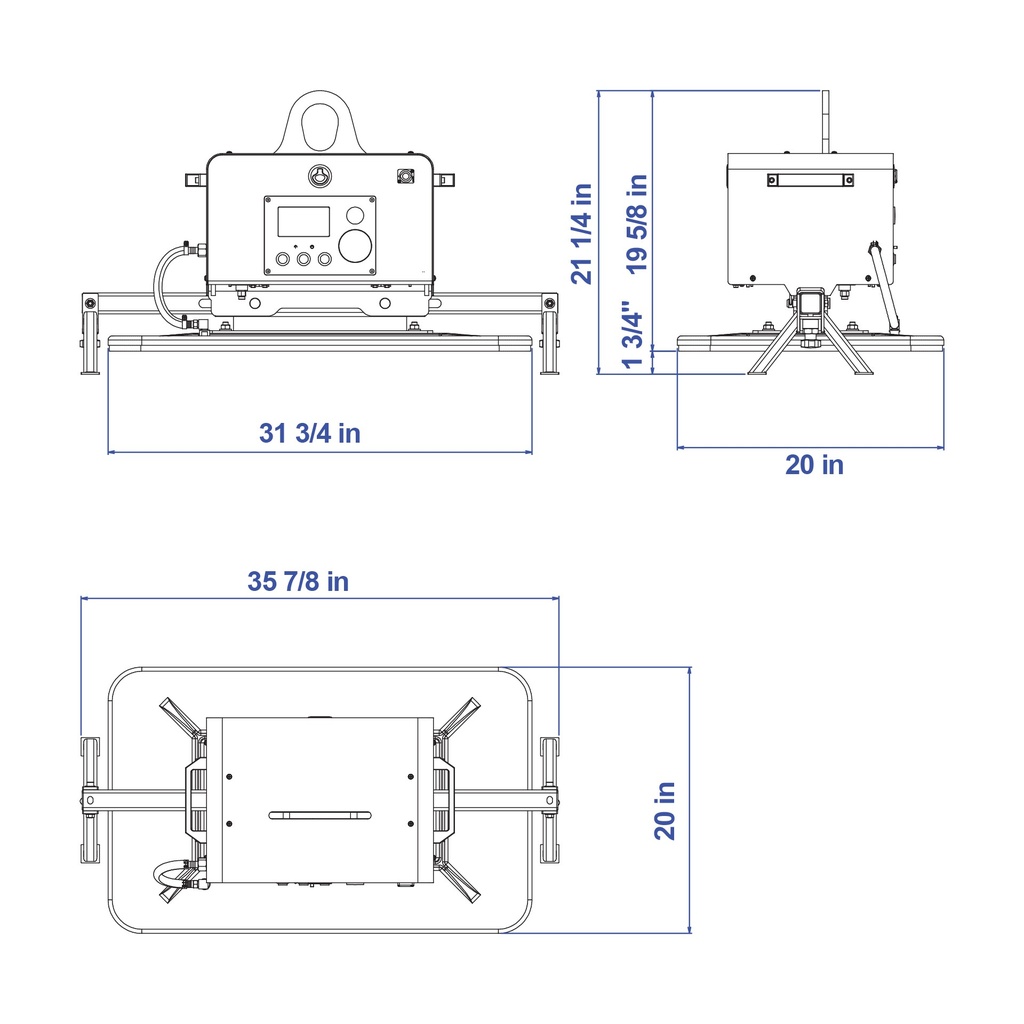

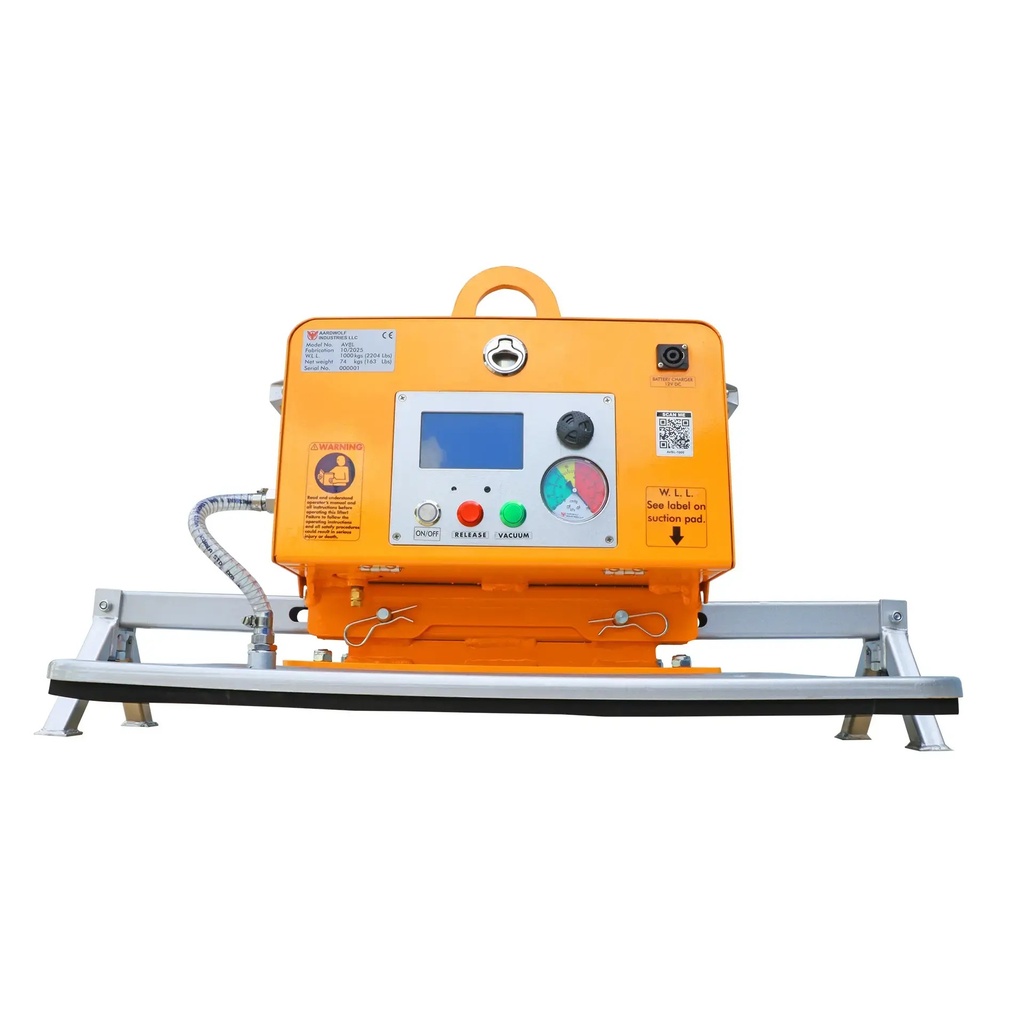

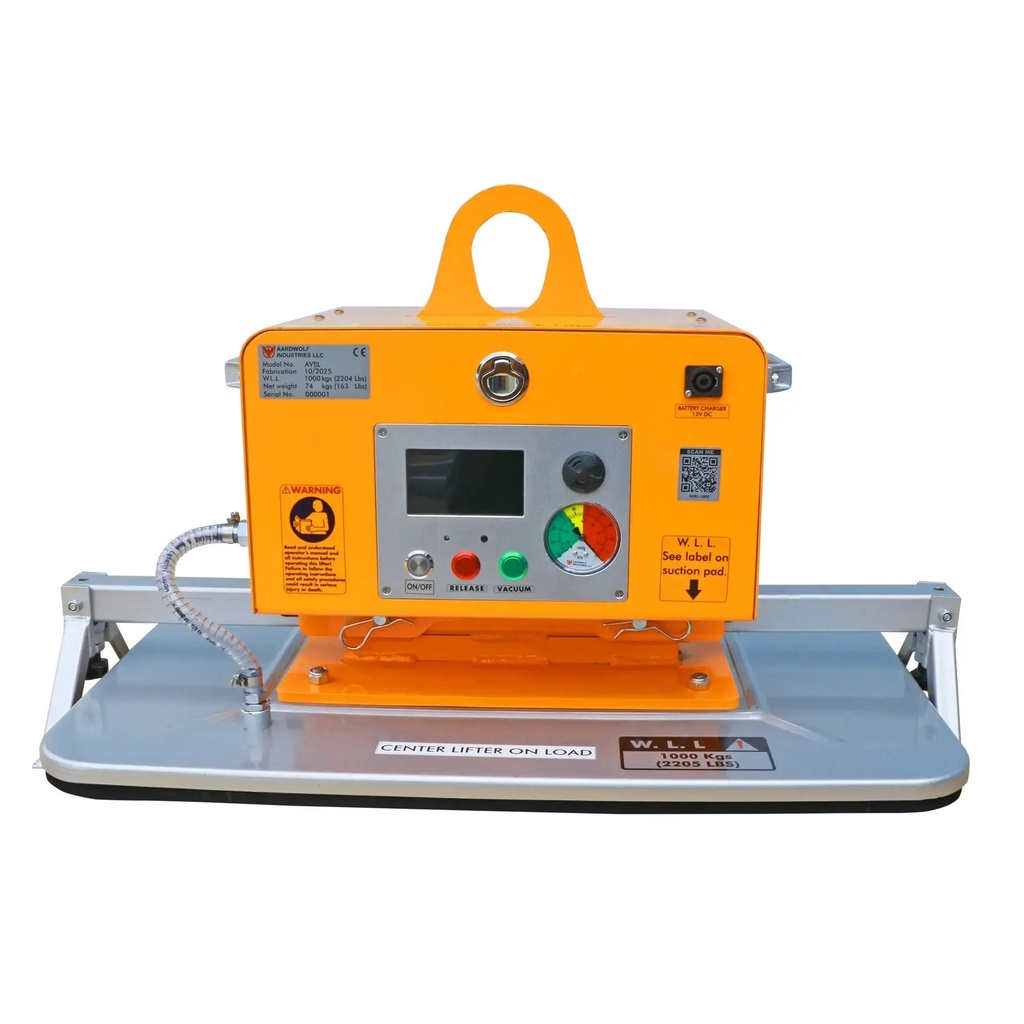

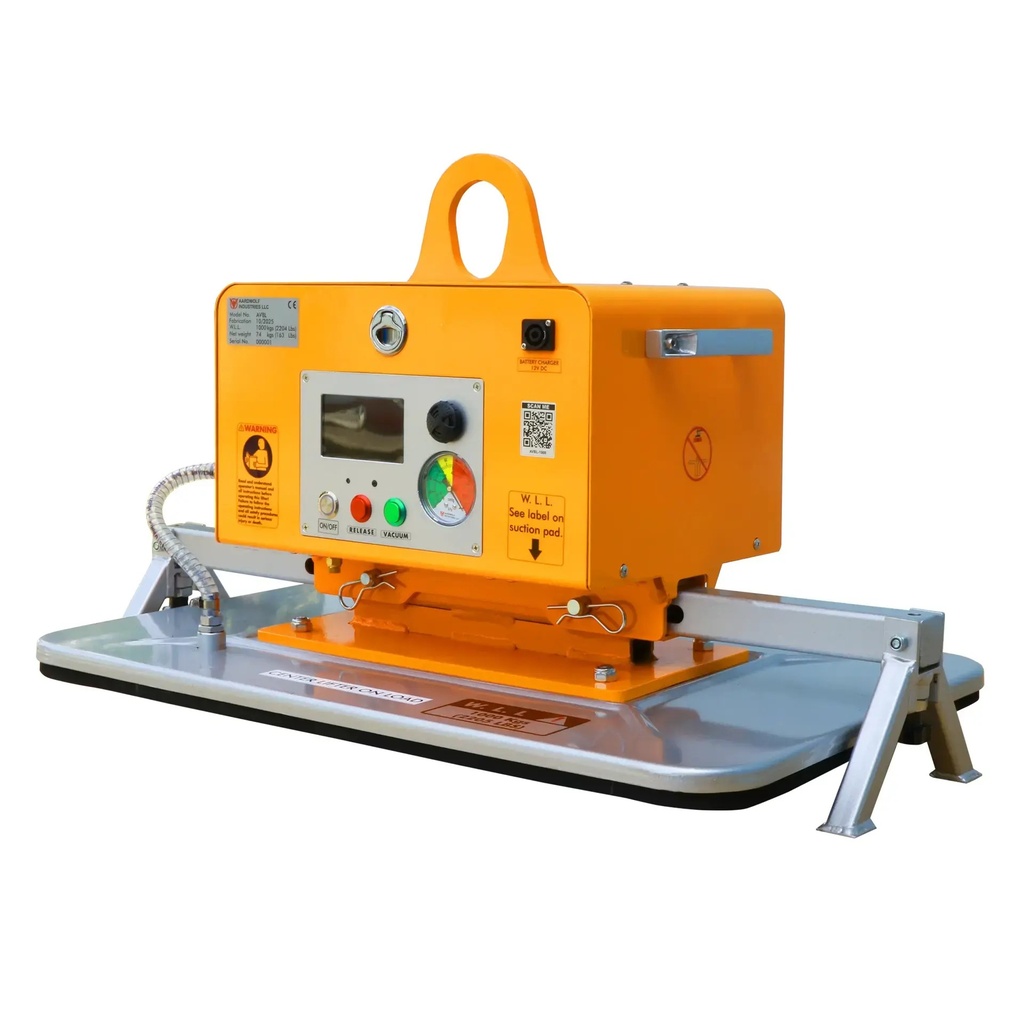

AVBL1000 — AVBL1000 Vacuum Block Lifter (1000 kg)
| Property | Detail |
|---|---|
| Working Load Limit | 2,204 lb (1,000 kg) |
| Pad Size | 31.5 in x 19.7 in |
| Net Weight | 209 lb |
| Gross Weight | 256 lb |
| Vacuum Pumps | Two (12V dual battery-operated) |
| Battery | 12V / 24A, ~5 hr continuous |
| Charging Time | 8 hr |
| Vacuum Flow Rate | 32.5 L/min |
| Safety | Audio/visual alarm, vacuum gauge, reserve tank, flashlight |

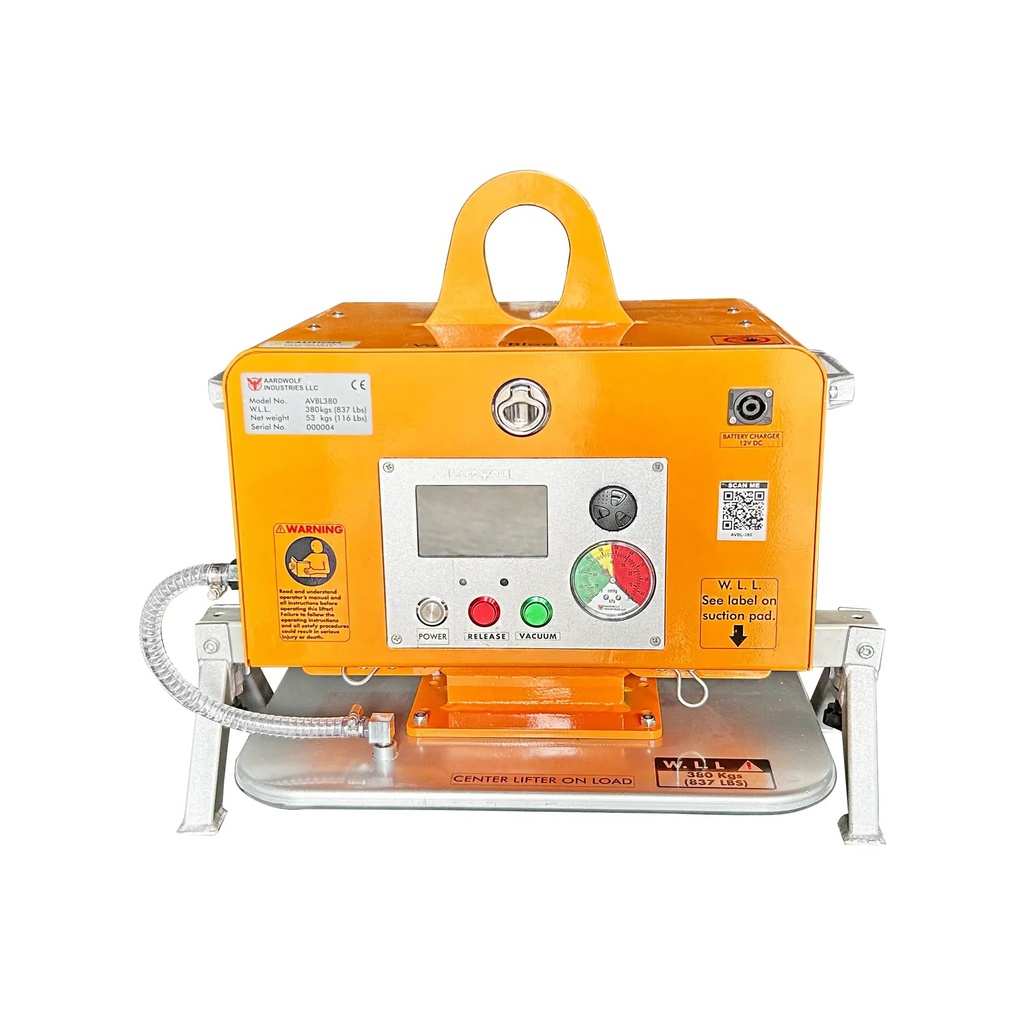

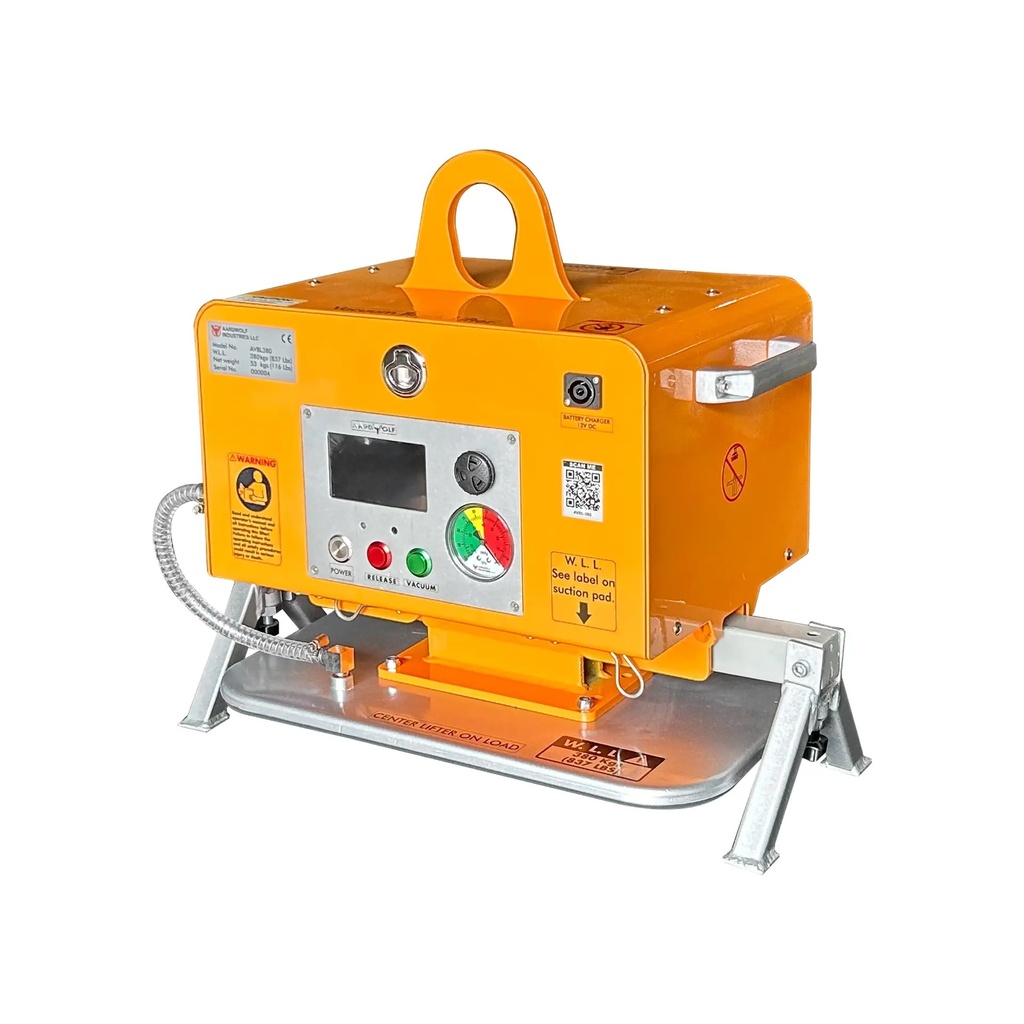

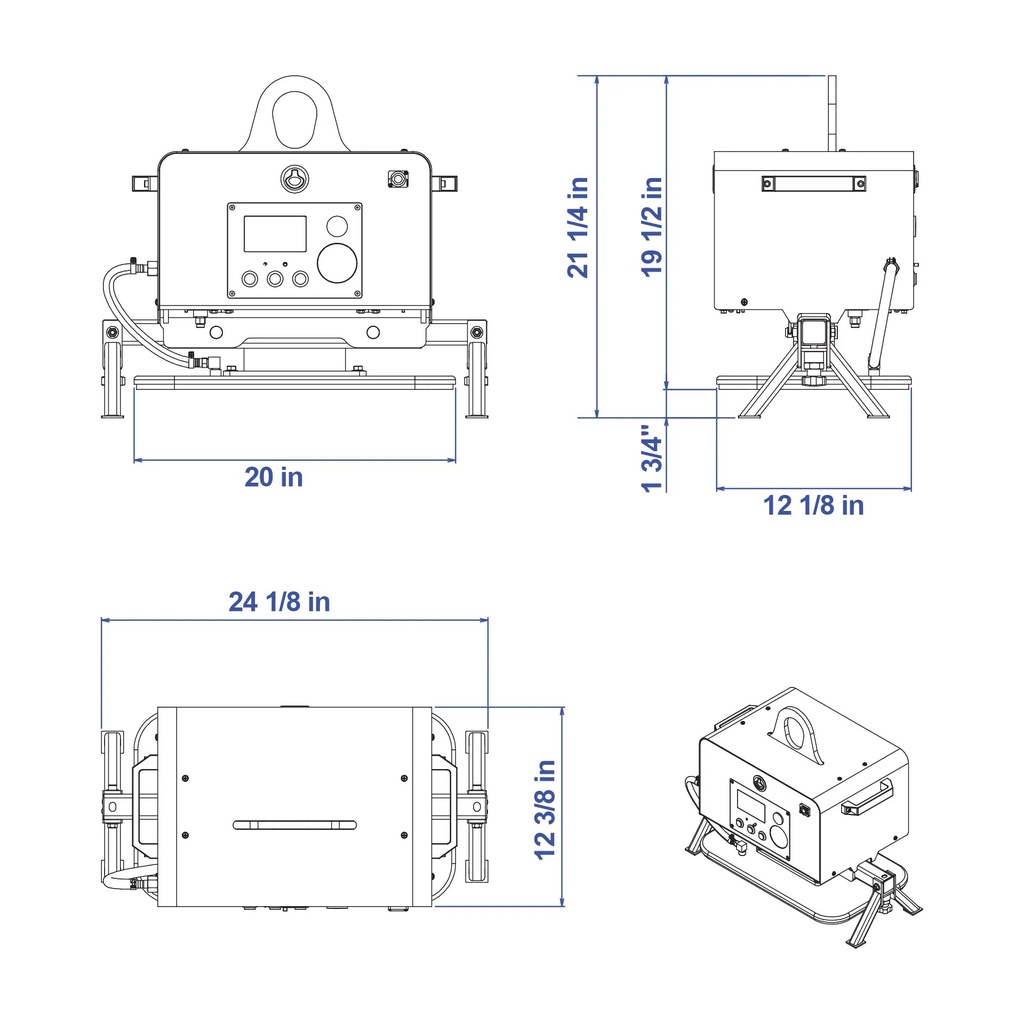

AVBL380 — AVBL380 Vacuum Block Lifter (380 kg)
| Property | Detail |
|---|---|
| Working Load Limit | 838 lb (380 kg) |
| Net Weight | 121 lb |
| Gross Weight | 150 lb |
| Vacuum Pad Options | 4 sizes; pad size determines load (largest 520x320 mm = 838 lb) |
| Battery | 12V rechargeable, ~1 work day |
| Vacuum Flow Rate | 32.5 L/min |
| Safety | Pressure switch, vacuum gauge, reserve tank, flashing light, audible alarm |
| Pad Change | Tool-free, under 1 minute |

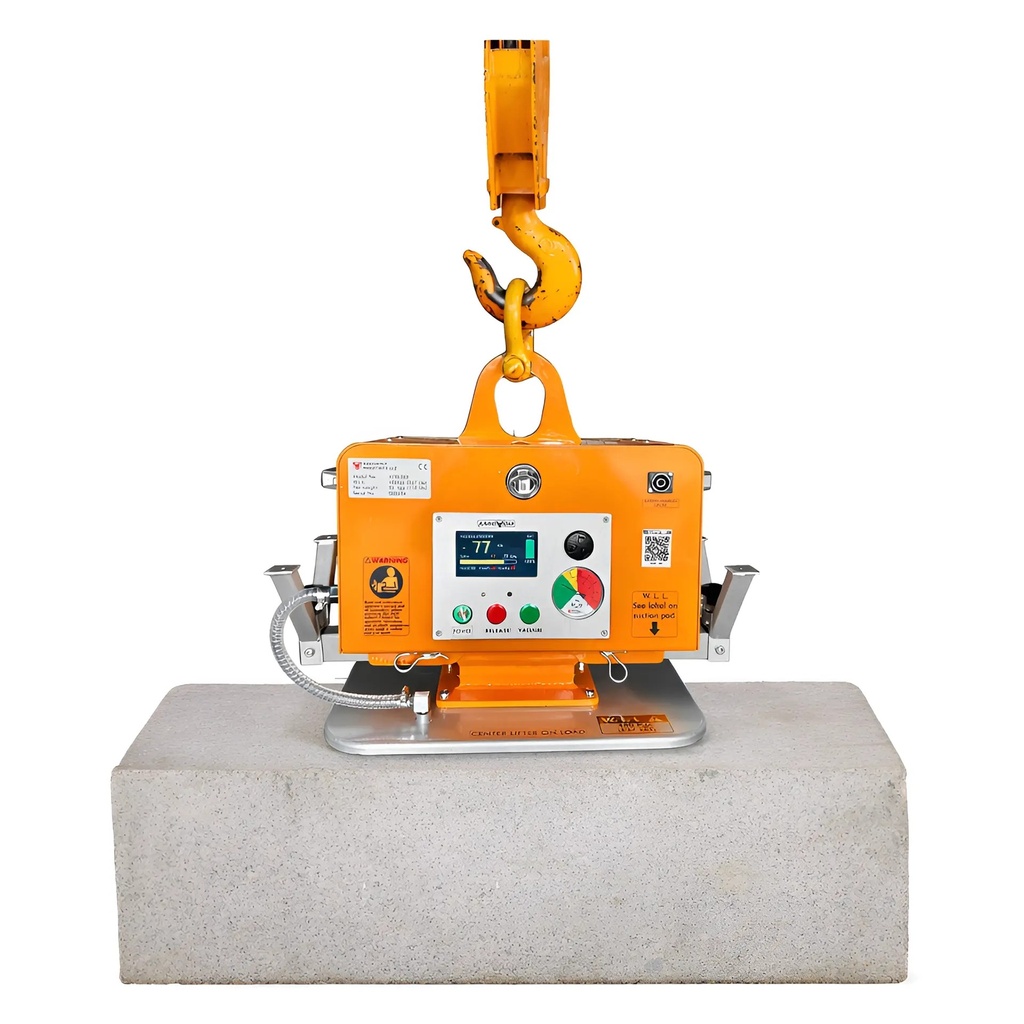

- Position the lifter pad squarely against the block face.
- Engage the vacuum pump and watch the gauge reach safe range.
- Confirm the alarm is silent and seal pressure is steady.
- Lift slowly with crane or excavator under operator control.
- Lower the block, release vacuum, and remove the pad.
- Wear hard hat, gloves, and steel-toe boots throughout.
Quarry blocks of granite, marble, limestone, sandstone, and similar dimensional stone with reasonably flat sealing faces.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
Specifications
| Model | AVBL380, AVBL1000 |
