Alpha Professional Tools Twincur EB

(0 review)

$ 95.35

$ 1.00

Size
- 4"
- 5"
- 6"
Grit
- #200
- #500
- #1000
- #2000
- #3000
Type

Terms and Conditions

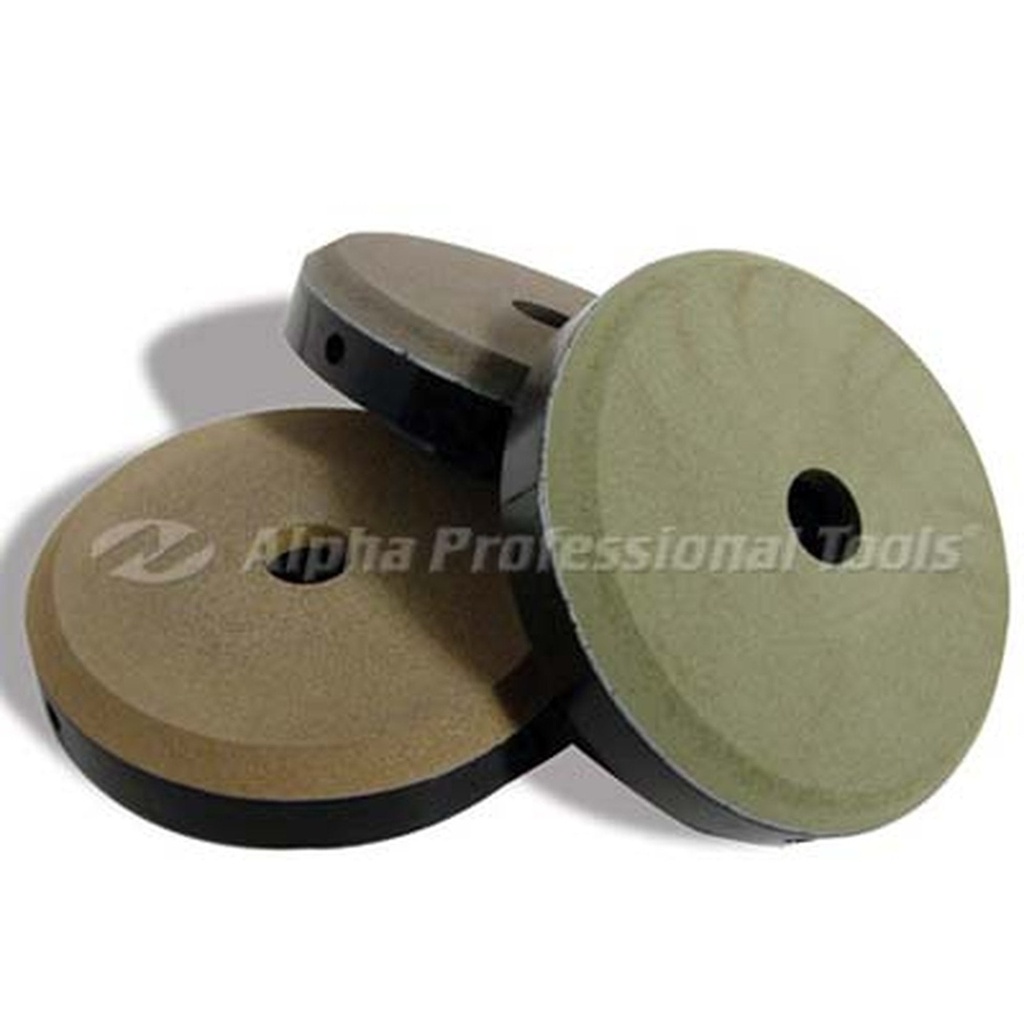

Alpha® Twincur EB Bullnose Edge Polishing Wheels

Alpha® Twincur EB (Engineered Stone / Bullnose) resin wheels are purpose-built for polishing straight and bullnose edges on engineered stone and quartz surfaces using automated edge polishing machines. Available in 4", 5", and 6" diameters with the industry-standard snail lock (SFAT) adapter, Twincur EB delivers fast, consistent results on both single-head and multi-head machines, with optional micro-oscillation enabling true straight-edge use.

Features

Optimized for engineered stone / quartz bullnose and straight edges
Five-step polishing system: #200, #500, #1000, #2000, #3000
Color-coded grit ID plugs on backside of every wheel (Yellow / Red / Dark Green / Light Green / Brown)
Snail Lock (SFAT) mount fits standard 5" snail-lock adapters
Factory calibrated and dressed — no break-in period required
Available diameters: 4", 5", 6"
LC (Long-Cycle) variants available at 5" for 1000 and 2000 grits
Compatible with single-head and multi-head automated polishers

Models / Part Numbers

Part No.	Diameter	Grit	Position	UPC
EB40200R	4"	200	Yellow	749173470011
EB40500R	4"	500	Red	749173470028
EB41000R	4"	1000	Dark Green	749173470035
EB42000R	4"	2000	Light Green	749173470042
EB43000R	4"	3000	Brown	749173470059
EB50200R	5"	200	Yellow	749173470066
EB50500R	5"	500	Red	749173470073
EB51000R	5"	1000	Dark Green	749173470097
EB52000R	5"	2000	Light Green	749173470110
EB53000R	5"	3000	Brown	749173470127
EB51000LC	5"	1000	Dark Green	749173470080
EB52000LC	5"	2000	Light Green	749173470103
EB60200R	6"	200	Yellow	749173471889
EB60500R	6"	500	Red	749173471896
EB61000R	6"	1000	Dark Green	749173471902
EB62000R	6"	2000	Light Green	749173471919
EB63000R	6"	3000	Brown	749173471926

How to Use

Mount the wheel on a 5" snail-lock adapter (SFAT-5/8) on your automated edge polisher.
4" wheels: operate at 3,400 RPM, 40 PSI, 100 ft/min traverse.
5" and 6" wheels: operate at 900–3,400 RPM (5") or 900–2,000 RPM (6"), 2.2–2.5 BAR, 12 in/min traverse.
LC-Series may be run up to 3.0 BAR.
Polish in sequence: #200 → #500 → #1000 → #2000 → #3000.
Run a dummy piece before and after the workpiece on multi-head lines to ensure full spindle contact at the start and end of the part.
Use wet processing only. Wheels are not for hand-held applications.
For true straight-edge or bevel polishing without micro-oscillation, use the Twincur ES series instead.

Specifications by Variant

Yellow (#200 grit ID) — 4" — Snail Lock (Resin) — EB40200R

Part No.	EB40200R
UPC	749173470011
Size	4"
Type	Snail Lock (Resin)
Color	Yellow (#200 grit ID)
Max RPM	3,400
Recommended For	Engineered Stone / Quartz
Packaged Weight	0.70 lbs
Package Dimensions	5" x 5" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Red (#500 grit ID) — 4" — Snail Lock (Resin) — EB40500R

Part No.	EB40500R
UPC	749173470028
Size	4"
Type	Snail Lock (Resin)
Color	Red (#500 grit ID)
Max RPM	3,400
Recommended For	Engineered Stone / Quartz
Packaged Weight	0.60 lbs
Package Dimensions	5" x 5" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Dark Green (#1000 grit ID) — 4" — Snail Lock (Resin) — EB41000R

Part No.	EB41000R
UPC	749173470035
Size	4"
Type	Snail Lock (Resin)
Color	Dark Green (#1000 grit ID)
Max RPM	3,400
Recommended For	Engineered Stone / Quartz
Packaged Weight	0.60 lbs
Package Dimensions	5" x 5" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Light Green (#2000 grit ID) — 4" — Snail Lock (Resin) — EB42000R

Part No.	EB42000R
UPC	749173470042
Size	4"
Type	Snail Lock (Resin)
Color	Light Green (#2000 grit ID)
Max RPM	3,400
Recommended For	Engineered Stone / Quartz
Packaged Weight	0.60 lbs
Package Dimensions	5" x 5" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Brown (#3000 grit ID) — 4" — Snail Lock (Resin) — EB43000R

Part No.	EB43000R
UPC	749173470059
Size	4"
Type	Snail Lock (Resin)
Color	Brown (#3000 grit ID)
Max RPM	3,400
Recommended For	Engineered Stone / Quartz
Packaged Weight	0.70 lbs
Package Dimensions	5" x 5" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Yellow (#200 grit ID) — 5" — Snail Lock (Resin) — EB50200R

Part No.	EB50200R
UPC	749173470066
Size	5"
Type	Snail Lock (Resin)
Color	Yellow (#200 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.20 lbs
Package Dimensions	5.75" x 5.75" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Red (#500 grit ID) — 5" — Snail Lock (Resin) — EB50500R

Part No.	EB50500R
UPC	749173470073
Size	5"
Type	Snail Lock (Resin)
Color	Red (#500 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.00 lbs
Package Dimensions	5.75" x 5.75" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Dark Green (#1000 grit ID) — 5" — Snail Lock (Resin) — EB51000R

Part No.	EB51000R
UPC	749173470097
Size	5"
Type	Snail Lock (Resin)
Color	Dark Green (#1000 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.00 lbs
Package Dimensions	5.75" x 5.75" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Light Green (#2000 grit ID) — 5" — Snail Lock (Resin) — EB52000R

Part No.	EB52000R
UPC	749173470110
Size	5"
Type	Snail Lock (Resin)
Color	Light Green (#2000 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.00 lbs
Package Dimensions	5.75" x 5.75" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Brown (#3000 grit ID) — 5" — Snail Lock (Resin) — EB53000R

Part No.	EB53000R
UPC	749173470127
Size	5"
Type	Snail Lock (Resin)
Color	Brown (#3000 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.00 lbs
Package Dimensions	5.75" x 5.75" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Dark Green (#1000 grit ID) — 5" — Snail Lock (LC Resin) — EB51000LC

Part No.	EB51000LC
UPC	749173470080
Size	5"
Type	Snail Lock (LC Resin)
Color	Dark Green (#1000 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.00 lbs
Package Dimensions	5.75" x 5.75" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Light Green (#2000 grit ID) — 5" — Snail Lock (LC Resin) — EB52000LC

Part No.	EB52000LC
UPC	749173470103
Size	5"
Type	Snail Lock (LC Resin)
Color	Light Green (#2000 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.00 lbs
Package Dimensions	5.75" x 5.75" x 2"
Commodity Code	6804.21.0000
Country of Origin	Japan

Yellow (#200 grit ID) — 6" — Snail Lock (Resin) — EB60200R

Part No.	EB60200R
UPC	749173471889
Size	6"
Type	Snail Lock (Resin)
Color	Yellow (#200 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.70 lbs
Package Dimensions	6.75" x 6.75" x 2.5"
Commodity Code	6804.21.0000
Country of Origin	Japan

Red (#500 grit ID) — 6" — Snail Lock (Resin) — EB60500R

Part No.	EB60500R
UPC	749173471896
Size	6"
Type	Snail Lock (Resin)
Color	Red (#500 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.50 lbs
Package Dimensions	6.75" x 6.75" x 2.5"
Commodity Code	6804.21.0000
Country of Origin	Japan

Dark Green (#1000 grit ID) — 6" — Snail Lock (Resin) — EB61000R

Part No.	EB61000R
UPC	749173471902
Size	6"
Type	Snail Lock (Resin)
Color	Dark Green (#1000 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.50 lbs
Package Dimensions	6.75" x 6.75" x 2.5"
Commodity Code	6804.21.0000
Country of Origin	Japan

Light Green (#2000 grit ID) — 6" — Snail Lock (Resin) — EB62000R

Part No.	EB62000R
UPC	749173471919
Size	6"
Type	Snail Lock (Resin)
Color	Light Green (#2000 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.40 lbs
Package Dimensions	6.75" x 6.75" x 2.5"
Commodity Code	6804.21.0000
Country of Origin	Japan

Brown (#3000 grit ID) — 6" — Snail Lock (Resin) — EB63000R

Part No.	EB63000R
UPC	749173471926
Size	6"
Type	Snail Lock (Resin)
Color	Brown (#3000 grit ID)
Max RPM	2,000
Recommended For	Engineered Stone / Quartz
Packaged Weight	1.50 lbs
Package Dimensions	6.75" x 6.75" x 2.5"
Commodity Code	6804.21.0000
Country of Origin	Japan

Common Specifications

Property	Detail
Product Family	Twincur EB (Engineered Stone / Bullnose)
Bond Type	Resin (standard) and LC Resin (long-cycle 5" 1000 & 2000 grits)
Mount	Snail Lock (SFAT) — uses 5" snail-lock adapter SFAT-5/8
Recommended Material	Engineered stone / quartz (also usable on granite)
Polishing Steps	#200, #500, #1000, #2000, #3000
Grit Color ID	Yellow=200, Red=500, Dark Green=1000, Light Green=2000, Brown=3000
Max RPM	4" = 3,400 · 5" = 900–3,400 · 6" = 900–2,000
Recommended BAR Pressure	4" = 40 PSI · 5"/6" = 2.2–2.5 BAR · LC = up to 3.0 BAR
Recommended Traverse Speed	4" = 100 ft/min · 5"/6" = 12 in/min (30.48 cm/min)
Application	Wet, machine use only (single-head and multi-head automated polishers)
Country of Origin	Japan
Commodity Code	6804.21.0000

Related & Companion Products

FAQs

What is the recommended RPM for Twincur EB wheels?

4" wheels run at 3,400 RPM. 5" and 6" wheels run between 900 and 3,400 RPM (6" capped at 2,000 RPM).

What is the recommended BAR / PSI pressure?

4" wheels: 40 PSI. 5" and 6" wheels: 2.2 to 2.5 BAR. LC-Series wheels: up to 3.0 BAR.

What is the recommended traverse speed?

4" wheels: 100 feet per minute. 5" and 6" wheels: 12 inches per minute (30.48 cm/min).

Why did my material not polish at the beginning and end on a multi-head polisher?

Belt speed may be too fast for the spindle heads to make contact at the start and end of the part. Run a dummy piece before and after the workpiece to ensure proper contact across the full surface.

Can Twincur EB be used on granite?

Yes, Twincur EB can polish granite, but it performs best on engineered stone / quartz.

Can I use Twincur EB for flat / straight edge polishing?

Only if your machine has a micro-oscillation feature. For true straight edge and bevel polishing, Alpha recommends the Twincur ES series.

Is there a break-in period?

No. Every Twincur EB wheel is calibrated and dressed at the factory and is ready to polish on first use.

How many polishing steps are there?

Five: #200, #500, #1000, #2000 and #3000.

How do I identify the grit on a wheel?

Alpha inserts a color ID plug in the back of each wheel: Yellow=200, Red=500, Dark Green=1000, Light Green=2000, Brown=3000.

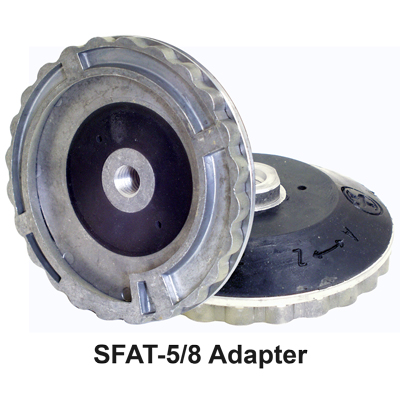

What adapter does Twincur EB use?

All Twincur EB wheels use a snail lock adapter (SFAT). The 5" snail-lock adapter is SFAT-5/8.

What does "EB" stand for?

Engineered Stone / Bullnose.

Can I use Twincur EB for hand-held polishing?

No. Twincur EB resin wheels are for machine use only.

Can I use 4" Twincur EB on a multi-head line polisher?

No. Multi-head line polishers are not mechanically designed to use 4" (100 mm) abrasives.

Can I use 5" or 6" Twincur EB on a single-head polisher?

Yes, with the 5" snail-lock adapter (SFAT-5/8).

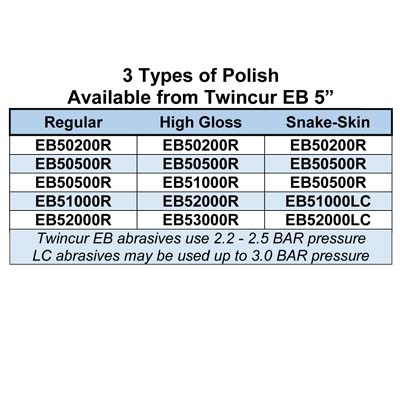

What polishing sequences are available for 5" wheels?

Three: regular polish, high polish, and snake-skin polish, depending on which wheels are used in sequence.

Videos

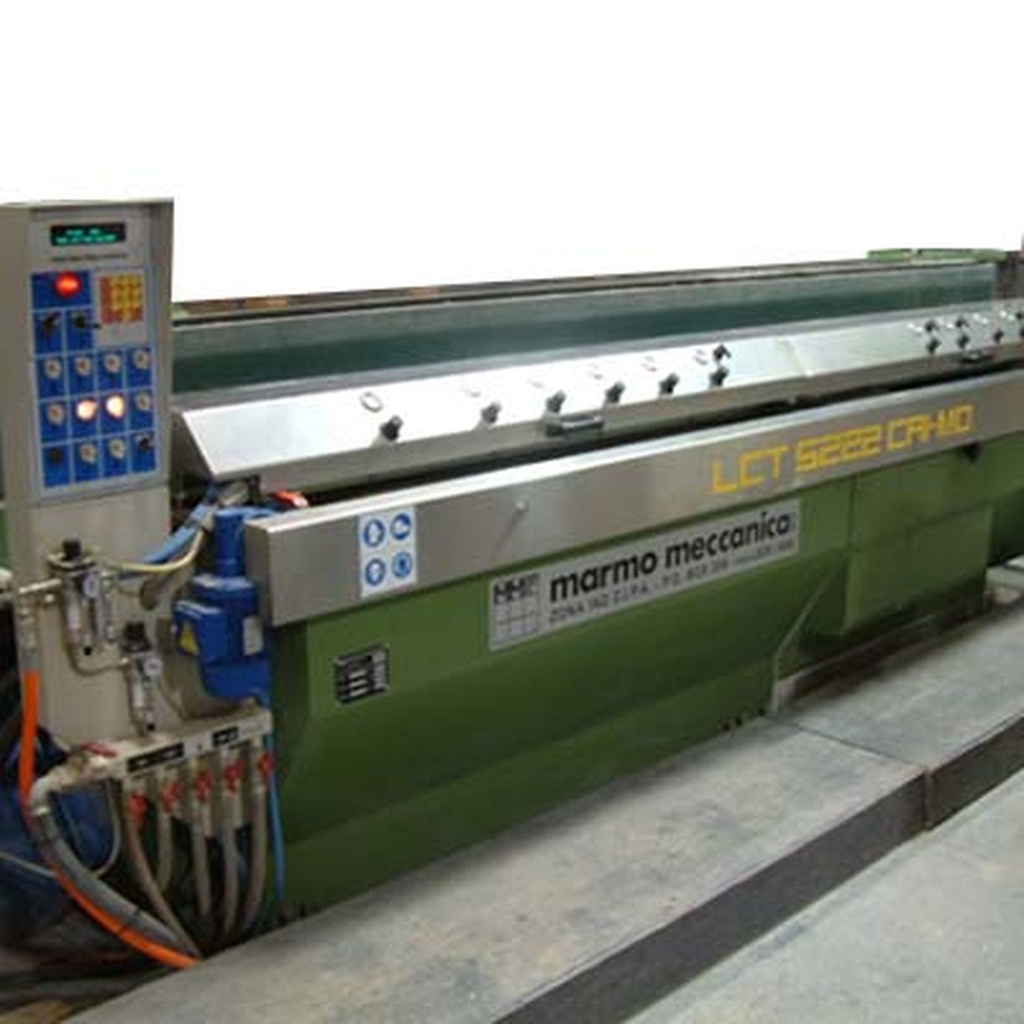

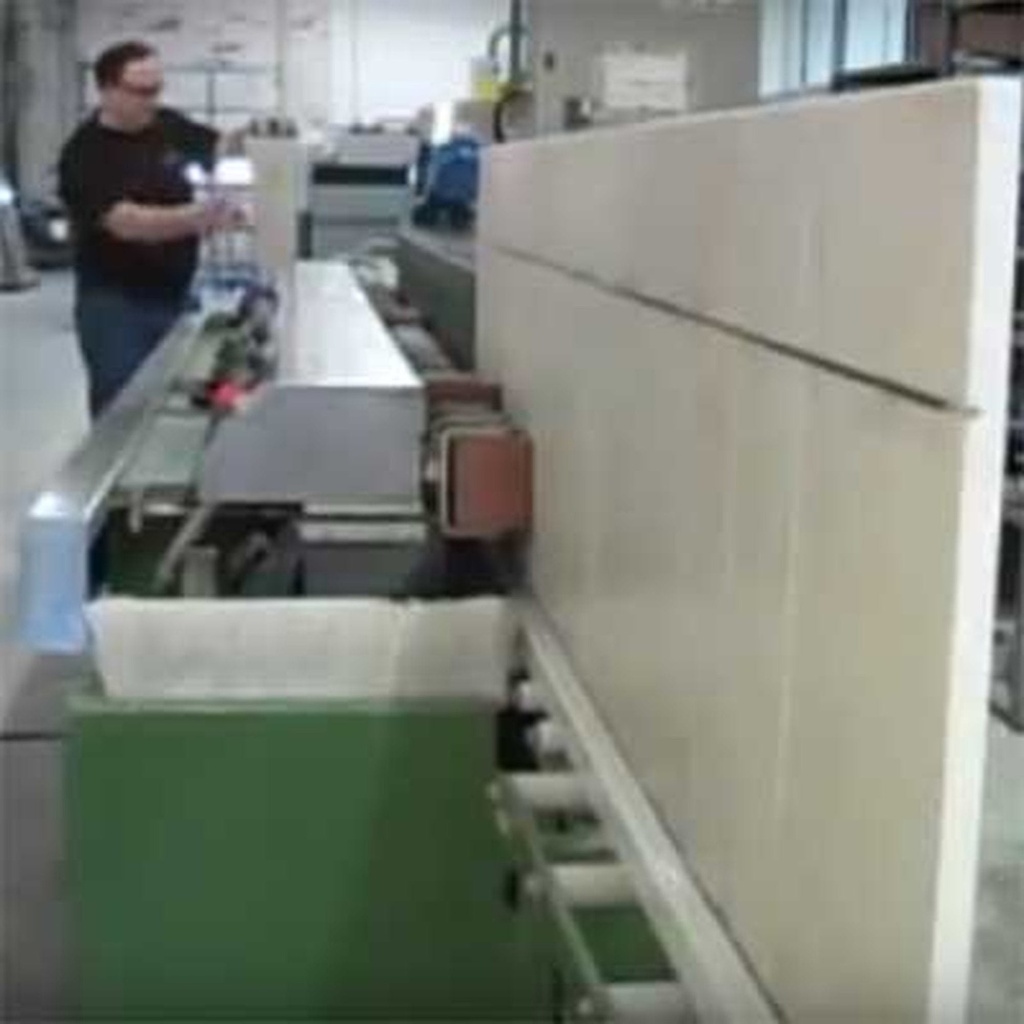

Twincur EB with Marmo on Crystallized Glass

Documentation

⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.

Specifications

Size	4", 5", 6"
Grit	#200, #500, #1000, #2000, #3000
Type	R, LC
