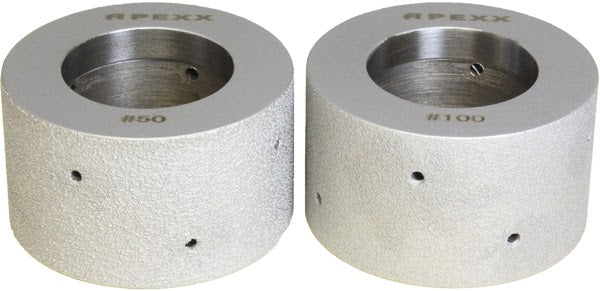

Built with high-standard vacuum brazing technology and premium diamonds;
Super fast and clean grinding on almost any stones;
The diamond layer will always stay straight and will never lose shape;
Last a lot longer than electroplated wheels;
Recommended for regular stock removing (1-4mm per pass);
Feed rate 800-2500 mm/min for Pos.1 and 500-800mm/min for Pos.2;
Standard 35mm arbor;
Material: Engineered Stone, Granite, Marble, Limestone, Quartzite, UltraCompact Surface;
Wet use only;
|
ITEM # |
COLOR |
DIAMOND DIAMETER |
DIAMOND HEIGHT |
POSITION |
MATERIALS |
SUGGESTED RPM |
FEED RATE |
|
22729-01001 |
Grey |
60mm No Slot |
35mm |
Pos.1 #50 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
800 -- 2500 mm/min |
|
22729-01002 |
Grey |
60mm No Slot |
35mm |
Pos.2 #100 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
500 -- 800 mm/min |
|
22729-01003 |
Grey |
60mm w/ Slot |
35mm |
Pos.1 #50 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
800 -- 2500 mm/min |
|
22729-01004 |
Grey |
60mm w/ Slot |
35mm |
Pos.2 #100 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
500 -- 800 mm/min |
|
22729-01005 |
Grey |
60mm w/ Slot |
45mm |
Pos.1 #50 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
800 -- 2500 mm/min |
|
22729-01006 |
Grey |
60mm w/ Slot |
45mm |
Pos.2 #100 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
500 -- 800 mm/min |
|
22729-01007 |
Grey |
80mm w/ Slot |
35mm |
Pos.1 #50 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
800 -- 2500 mm/min |
|
22729-01008 |
Grey |
80mm w/ Slot |
35mm |
Pos.2 #100 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
500 -- 800 mm/min |
|
22729-01009 |
Grey |
80mm w/ Slot |
45mm |
Pos.1 #50 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
800 -- 2500 mm/min |
|
22729-01010 |
Grey |
80mm w/ Slot |
45mm |
Pos.2 #100 Grit |
ES, Granite, Marble Quartzite, UCS |
6,000 -- 8,000 |
500 -- 800 mm/min |
| Grit | #50, #100 |
| Slot | No-Slot, Slotted |
| Dimensions | Z35 x D60 x D35, Z35 x D80 x D35, Z45 x D80 x D35 |
