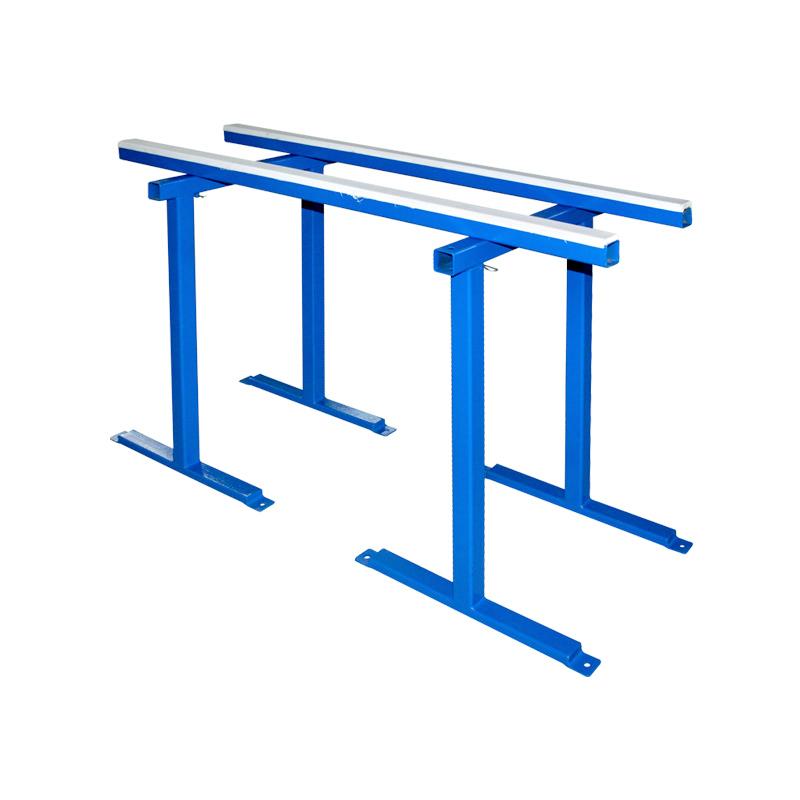

AT7651 Trestle - 765W
Aardwolf Trestle (AT Series) — Heavy‑duty, adjustable steel trestles designed to support stone slabs and large panels safely and efficiently. Portable for job sites and can be dyno‑bolted for permanent installations.
Recommended for: granite, marble, quartz, engineered stone, porcelain, and solid surface fabrication.
- 1,000 kg (2,204 lb) working load limit across the series
- Adjustable rail spacing in 100 mm (3.9") increments
- UV, acid & mark‑resistant rubber‑covered rails
- Powder‑coated, heavy‑duty construction; suitable for shops or job sites
- Can be floor‑bolted for a fixed workstation
AT7656 — Trestle 765N (Narrow)
Specifications
| AT7656 | Metric | Imperial |
|---|---|---|
| Capacity / WLL | 1000 kg | 2204 lbs |
| Jaw Opening / Clamping range | 100 mm | 3.9" in |
| Net Weight | 53 kg | 117 lbs |
| Packaging | A: 660×640×770 mm; B: 2020×270×70 mm | A: 26.0"×25.2"×30.3"; B: 79.5"×10.6"×2.8" |
AT7651 — Trestle 765W (Wide)
Specifications
| AT7651 | Metric | Imperial |
|---|---|---|
| Capacity / WLL | 1000 kg | 2204 lbs |
| Jaw Opening / Clamping range | 100 mm | 3.9" in |
| Net Weight | 55 kg | 121 lbs |
| Packaging | A: 1060×640×770 mm; B: 2020×270×70 mm | A: 41.7"×25.2"×30.3"; B: 79.5"×10.6"×2.8" |
AT8556 — Trestle 855N (Narrow)
Specifications
| AT8556 | Metric | Imperial |
|---|---|---|
| Capacity / WLL | 1000 kg | 2204 lbs |
| Jaw Opening / Clamping range | 100 mm | 3.9" in |
| Net Weight | 57 kg | 126 lbs |
| Packaging | A: 660×640×860 mm; B: 2020×270×70 mm | A: 26.0"×25.2"×33.9"; B: 79.5"×10.6"×2.8" |
AT8551 — Trestle 855W (Wide)
Specifications
| AT8551 | Metric | Imperial |
|---|---|---|
| Capacity / WLL | 1000 kg | 2204 lbs |
| Jaw Opening / Clamping range | 100 mm | 3.9" in |
| Net Weight | 58.8 kg | 129.6 lbs |
| Packaging | A: 1060×640×860 mm; B: 2020×270×70 mm | A: 41.7"×25.2"×33.9"; B: 79.5"×10.6"×2.8" |
