AVBL1000 Vacuum Block Lifter - 1000kg

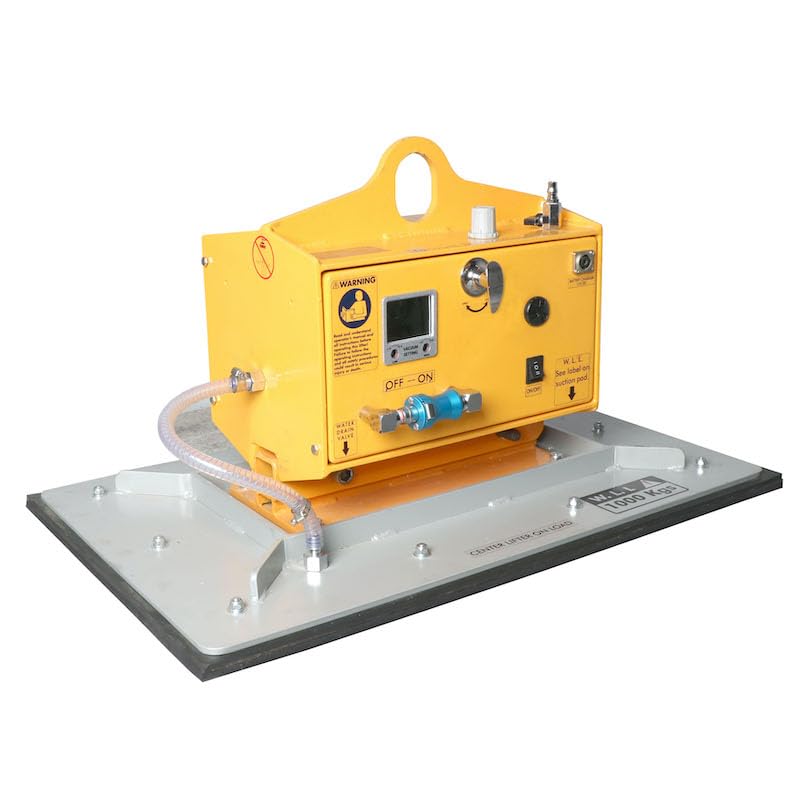

A powerful battery-operated vacuum lifting device for laying marble and granite slabs, concrete and similar. Robust and compact, this Vacuum Block Lifter can be suspended on all types of lifting equipment by means of load hooks, chains, cables, etc.
Strong and compact body with built-in mount for crane hook and the ability to quickly replace the vacuum suction pads.
Features
- Equipped with a battery-operated vacuum pumps.
- ON/OFF slide valve.
- Audio/visual safety system: warning flashlight, vacuum gauge, large vacuum reserve tank.
- The automatic vacuum pumping system.
- Long working hours.
- Battery charge indicator.
- Manually operated valve for vacuum.
Specifications
|
Metric
|
Imperial
|
|
| Pad sizes | 800 x 500 mm |
31 1/2" x 19 3/4" |
| Working load limit | 1000 kg | 2204 lb |
| Net weight | 95 kg | 209 lb |
| Gross weight | 116 kg | 256 lb |
| Packaging dimensions | L.870 x W.570 x H.635 mm | L.34 1/4" x W.22 1/2" x H.25" |
