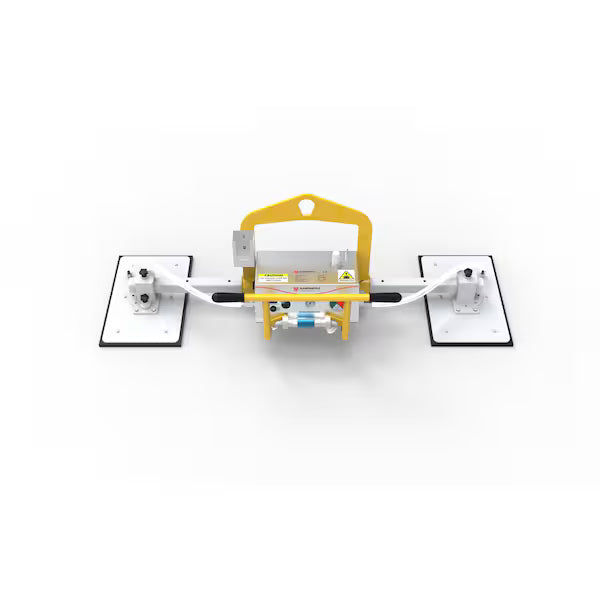

AVLP2 Vacuum Lifter AVLP2 ( Regular Version ) - 500kg
Aardwolf AVLP Vacuum Lifters — Pneumatic lifters engineered for safe handling and precise positioning of stone slabs. With rugged construction and 90° tilting, the AVLP series covers dual‑pad and four‑pad configurations for workshops and install teams.
Recommended for: marble, granite, engineered stone; smooth or rough surfaces.
- Pneumatic tilting from 0–90° for vertical ↔ horizontal handling.
- Integrated vacuum tank maintains hold during air interruptions; audio/visual low‑vacuum alarm.
- Slide valve for quick attach/release; durable frame with protected air & vacuum lines.
AVLP2-500 — Dual Pad 500 kg
Specifications
| AVLP2-500 | Metric | Imperial |
|---|---|---|
| Capacity / WLL | Horizontal 500 kg · Vertical 250 kg | 1102 lb · 551 lb |
| Jaw Opening / Clamping range | — | — |
| Pad size (qty) | 500×300 mm (2) | 19.7×11.8 in (2) |
| Net Weight | 80 kg | 176 lb |
| Packaging | 1480×390×960 mm | 58.3×15.3×37.8 in |
AVLP4 — Four Pad 1000 kg
Specifications
| AVLP4 | Metric | Imperial |
|---|---|---|
| Capacity / WLL | Horizontal 1000 kg · Vertical 500 kg | 2204 lb · 1102 lb |
| Jaw Opening / Clamping range | — | — |
| Pad size (qty) | 500×300 mm (4) | 19.7×11.8 in (4) |
| Net Weight | 94 kg | 207 lb |
| Packaging | 1680×430×960 mm | 66.1×16.9×37.8 in |
AVLP4PRO — Four Pad 1000 kg (Pro)
Specifications
| AVLP4PRO | Metric | Imperial |
|---|---|---|
| Capacity / WLL | Horizontal 1000 kg · Vertical 500 kg | 2204 lb · 1102 lb |
| Jaw Opening / Clamping range | — | — |
| Pad size (qty) | 520×320 mm (4) | 20.5×12.6 in (4) |
| Net Weight | 109 kg | 240 lb |
| Packaging | 1680×430×960 mm | 66.1×16.9×37.8 in |
