Aardwolf AVLP Vacuum Lifters — Pneumatic lifters engineered for safe handling and precise positioning of stone slabs. With rugged construction and 90° tilting, the AVLP series covers dual‑pad and four‑pad configurations for workshops and install teams.
Recommended for: marble, granite, engineered stone; smooth or rough surfaces.
- Pneumatic tilting from 0–90° for vertical ↔ horizontal handling.
- Integrated vacuum tank maintains hold during air interruptions; audio/visual low‑vacuum alarm.
- Slide valve for quick attach/release; durable frame with protected air & vacuum lines.
AVLP2-500 — Dual Pad 500 kg
Specifications
| AVLP2-500 |
Metric |
Imperial |
| Capacity / WLL |
Horizontal 500 kg · Vertical 250 kg |
1102 lb · 551 lb |
| Jaw Opening / Clamping range |
— |
— |
| Pad size (qty) |
500×300 mm (2) |
19.7×11.8 in (2) |
| Net Weight |
80 kg |
176 lb |
| Packaging |
1480×390×960 mm |
58.3×15.3×37.8 in |

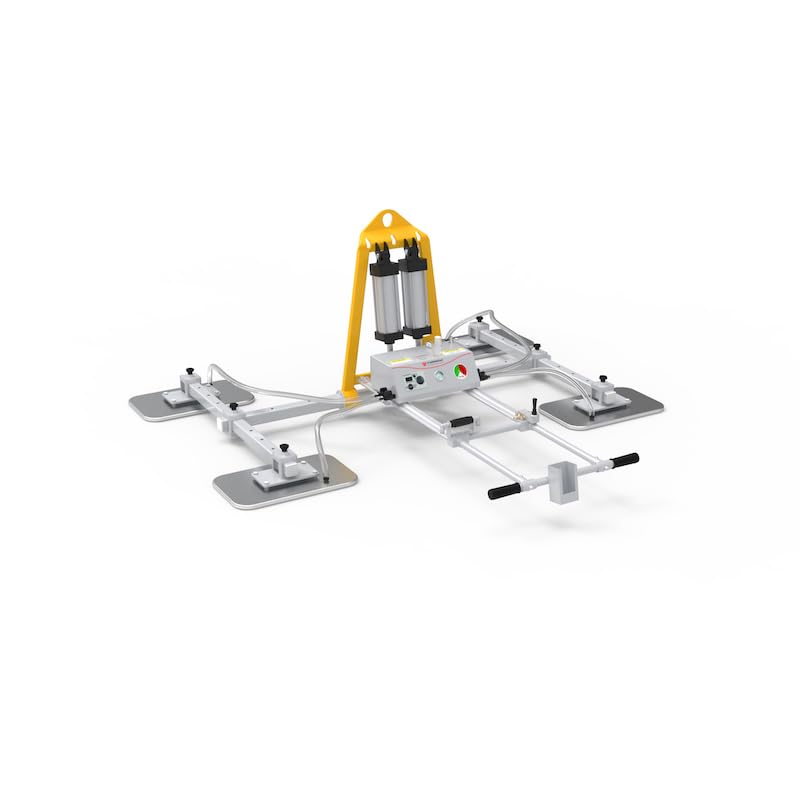

AVLP4 — Four Pad 1000 kg
Specifications
| AVLP4 |
Metric |
Imperial |
| Capacity / WLL |
Horizontal 1000 kg · Vertical 500 kg |
2204 lb · 1102 lb |
| Jaw Opening / Clamping range |
— |
— |
| Pad size (qty) |
500×300 mm (4) |
19.7×11.8 in (4) |
| Net Weight |
94 kg |
207 lb |
| Packaging |
1680×430×960 mm |
66.1×16.9×37.8 in |
AVLP4PRO — Four Pad 1000 kg (Pro)
Specifications
| AVLP4PRO |
Metric |
Imperial |
| Capacity / WLL |
Horizontal 1000 kg · Vertical 500 kg |
2204 lb · 1102 lb |
| Jaw Opening / Clamping range |
— |
— |
| Pad size (qty) |
520×320 mm (4) |
20.5×12.6 in (4) |
| Net Weight |
109 kg |
240 lb |
| Packaging |
1680×430×960 mm |
66.1×16.9×37.8 in |
