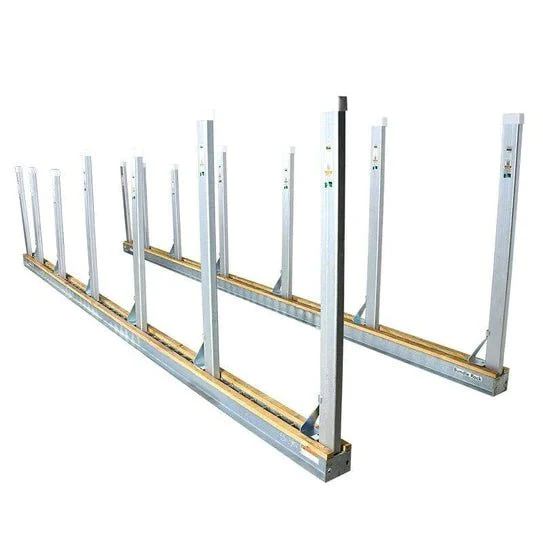

Aardwolf Bundle Rack Kit ABR01 — Slab Bundle Storage

The Aardwolf ABR01 is a galvanized-steel bundle rack for storing granite, marble, and engineered-stone slab bundles vertically. The kit variants pair the 9 ft 10 in rails with eight posts in 47 in, 55 in, or 63 in heights. Built for fabrication shops and slab yards handling full bundle inventory.

Features

  • Two galvanized steel rails, 2.93 m (~9 ft 10 in / 115 in) long
  • Rail height 6.5 in with 5 mm wall thickness
  • Rectangular tube steel posts, 100 x 50 mm cross-section, 5 mm wall
  • Posts insert at 4.4 in increments along the rails
  • ABR0106: ABR01 rails plus 8 posts at 47 in (1,200 mm) tall
  • ABR0107: ABR01 rails plus 8 posts at 55 in (1,400 mm) tall
  • ABR0108: ABR01 rails plus 8 posts at 63 in (1,600 mm) tall
  • Minimum yield strength 345 MPa for safe vertical bundle storage
  • Rail pair net weight approximately 172 lb (78 kg)
ABR01 — Rails Only — Pair of 9 ft 10 in Rails
Property Detail
Part Number ABR01
Composition Pair of galvanized rails (no posts)
Rail Length 9 ft 10 in (3,000 mm / 115.1 in)
Rail Height 6.5 in (165 mm)
Rail Pair Weight ~171 lb (78 kg)
ABR0106 — Kit with 8 x 47 in Posts
Property Detail
Part Number ABR0106
Composition Pair of rails + 8 posts
Post Height 47 in (1,200 mm)
Post Cross-Section 3.9 in x 2 in (100 x 50 mm)
Post Wall 5 mm
Post Net Weight ~27.6 lb (12.5 kg) each
ABR0107 — Kit with 8 x 55 in Posts
Property Detail
Part Number ABR0107
Composition Pair of rails + 8 posts
Post Height 55 in (1,400 mm)
Post Cross-Section 3.9 in x 2 in (100 x 50 mm)
Post Wall 5 mm
Post Net Weight ~27.8 lb (12.6 kg) each
ABR0108 — Kit with 8 x 63 in Posts
Property Detail
Part Number ABR0108
Composition Pair of rails + 8 posts
Post Height 63 in (1,600 mm)
Post Cross-Section 3.9 in x 2 in (100 x 50 mm)
Post Wall 5 mm
Post Net Weight ~32.4 lb (14.7 kg) each
  1. Position the two rails parallel on a level concrete floor.
  2. Anchor each rail through its mounting holes for added stability.
  3. Insert posts into the rail sockets at 4.4 in increments to define bays.
  4. Stand slab bundles vertically with a 4 degree lean against the posts.
  5. Distribute heavy bundles across the rack length for even loading.
  6. Wear gloves and steel-toe boots when loading and removing bundles.

Özellikler

Model ABR0106, ABR0107, ABR0108, ABR01
