Model
Aardwolf Forklift Boom
The Aardwolf Forklift Boom extends forklift reach for hoisting slabs, machinery, and bulky loads where the forks alone cannot reach. Multiple capacity and length models (FB1-2720 through FB4-4800) cover light shop work to heavy industrial lifts. LP variants (FB2LP, FB3LP) feature a lower-profile design.
Features
- Slide-on forklift boom with adjustable hook position along the beam
- Six models from FB1-2720 to FB4-4800 covering wide capacity range
- FB2LP-3600 and FB3LP-5420 low-profile variants for tight overhead clearance
- Swivel hook with safety latch keeps slings and chains secured
- Heavy steel construction with rated capacity placard
- Safety chain locks the boom to the forklift carriage
FB1-2720 — FB1-2720 — 2 to 2.5 Ton Forklift
| Property | Detail |
|---|---|
| Type | Telescoping 2-section boom |
| Forklift Rating | 2 to 2.5 ton |
| Capacity Retracted | 3,307 lb |
| Capacity Extended | 1,102 lb |
| Retracted Length | 63.4" |
| Extended Length | 107" |
FB2-3580 — FB2-3580 — 3 Ton+ Forklift
| Property | Detail |
|---|---|
| Type | Telescoping 2-section boom |
| Forklift Rating | 3 ton and larger |
| Capacity Retracted | 3,307 lb |
| Capacity Extended | 1,322 lb |
| Retracted Length | 83" |
| Extended Length | 141" |

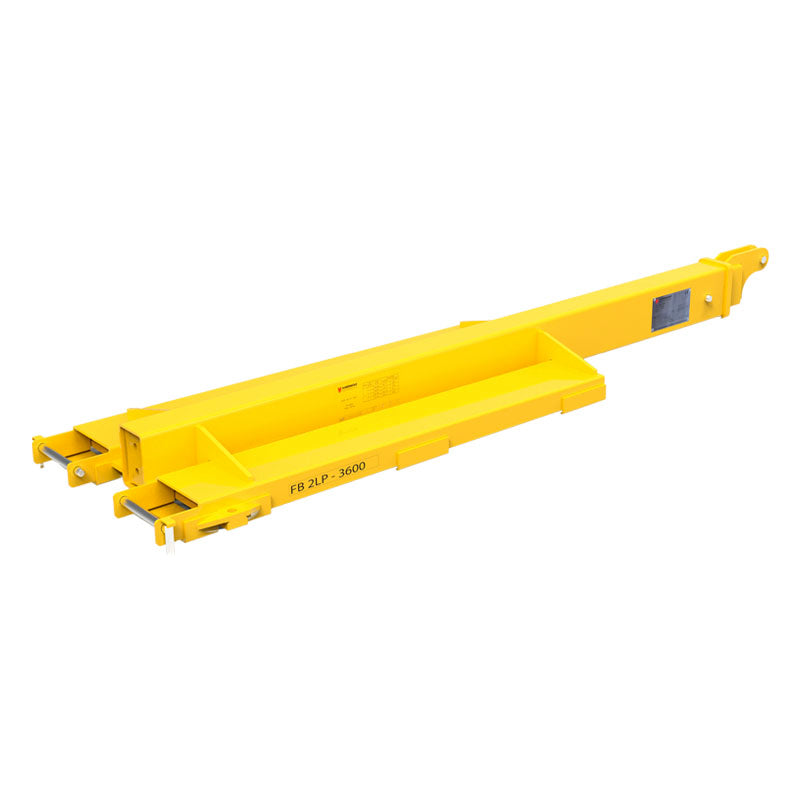

FB2LP-3600 — FB2LP-3600 — Low Profile, 3 Ton+
| Property | Detail |
|---|---|
| Type | Low-profile telescoping 2-section boom |
| Forklift Rating | 3 ton and larger |
| Capacity at 83" | 5,280 lb |
| Capacity at 142" | 1,320 lb |
| Hook Positions | 83", 103", 122", 142" |
| Fork Pockets | 2.6" x 6.5" on 14.8" centers |
FB3-5380 — FB3-5380 — Telescoping 3-Section
| Property | Detail |
|---|---|
| Type | Telescoping 3-section boom |
| Forklift Rating | 3 ton and larger |
| Capacity Retracted | 5,291 lb |
| Capacity Extended | 661 lb |
| Retracted Length | 86.5" |
| Extended Length | 212" |
FB3LP-5420 — FB3LP-5420 — Low Profile 3-Section
| Property | Detail |
|---|---|
| Type | Low-profile telescoping 3-section boom |
| Forklift Rating | 3 ton and larger |
| Capacity at 87" | 5,280 lb |
| Capacity at 213" | 660 lb |
| Hook Positions | 87", 118.5", 150", 181.5", 213" |
| Fork Pockets | 2.6" x 6.5" on 14.8" centers |
FB4-4800 — FB4-4800 — 5 to 8 Ton Forklift
| Property | Detail |
|---|---|
| Type | Telescoping 2-section boom |
| Forklift Rating | 5 to 8 ton |
| Capacity Retracted | 6,614 lb |
| Capacity Extended | 2,204 lb |
| Retracted Length | 110" |
| Extended Length | 189" |
- Slide the boom onto the forklift forks until fully seated.
- Secure the boom to the carriage with the supplied safety chain.
- Set the hook position on the beam to match the load weight rating.
- Connect slings or lifting clamps to the swivel hook.
- Lift slowly and stay below the boom's rated load at the chosen hook position.
- Wear gloves, hard hat, and steel-toe boots during all lifts.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
Özellikler
| Model | FB2-3580, FB2LP-3600, FB3-5380, FB4-4800, FB1-2720, FB3LP-5420, FB3LP-5420 |
