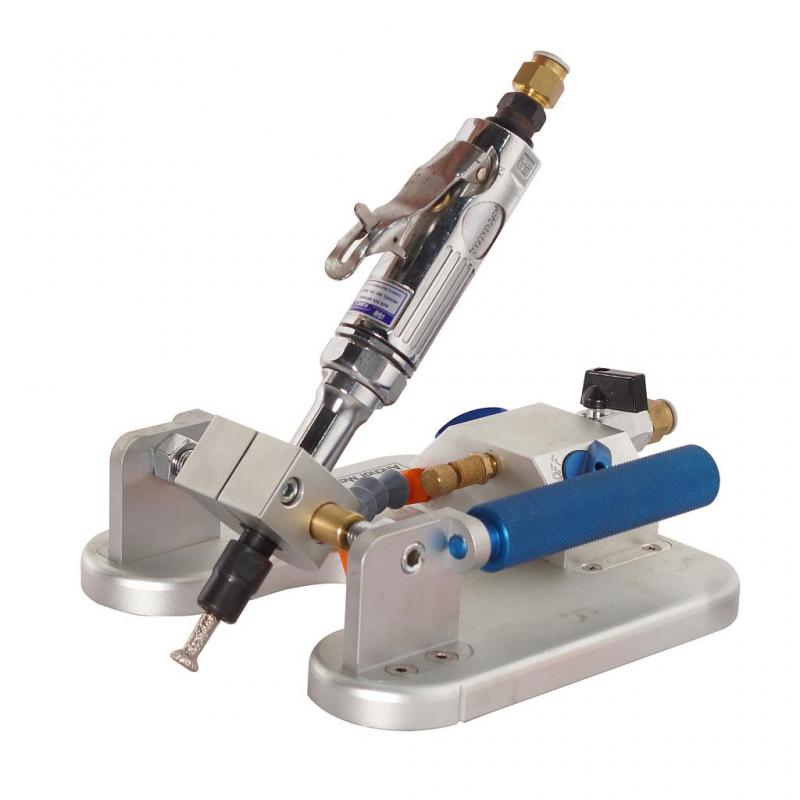

Aardwolf APAM Pneumatic Anchor Machine

Anchor Machines manufactured by Aardwolf Industries LLC featuring two models, pneumatic or electric grinders with a vacuum-powered base.  Used to cut T-slots in the back of vanity tops for the attachment of anchor bolts used in under-counter sinks or architectural facing systems.  Two separate vacuum zones on the base can be turned on or off, enabling the machine to be used near edges.

Features

• Industrial quick-couplers for both air and water.

• Combination port that allows vacuum to be applied with compressed air via the built-in venturi vacuum generator.

• The grinders accept any T diamond bit with a 6mm shank.

• A water hose with a ball valve and quick-coupler can be quickly detached and used to spray the work area.

• Machine cuts in both push and pull directions.

• Alignment indicators on the machine base.

• Machined, anodised aluminium components.

• Molded rubber vacuum base seal.

Note: The Portable Water Supply Tank is sold upon request.

Specifications

Pneumatic Anchor Machine APAM

Aardwolf APAM Pneumatic Anchor Machine for T-Slot Cutting in Stone Vanity Tops

The Aardwolf APAM cuts T-slots into the back of stone vanity tops for attaching anchor bolts used with undermount sinks and architectural facing systems. A dual-zone vacuum base with independently switched zones locks the machine to the stone without clamping, including near slab edges. Industrial quick-couplers connect air and water lines for efficient wet cutting in production environments.

Features

• Dual-zone vacuum base — zones switch independently for near-edge positioning
• Built-in venturi vacuum generator creates vacuum from compressed air — no separate pump needed
• Industrial quick-couplers for both compressed air and water supply lines
• Accepts any T diamond bit with a 6mm shank for controlled T-slot depth cutting
• Detachable water hose with ball valve and quick-coupler for spray cooling
• Pneumatic grinder drives for smooth, consistent cutting force through stone

How to Use

• Connect compressed air and water lines using the industrial quick-couplers
• Position machine on the stone surface; activate both vacuum zones to lock it in place
• Near slab edges, switch off the outer vacuum zone and operate on the inner zone only
• Install a T diamond bit (6mm shank) into the pneumatic grinder and tighten securely
• Cut T-slots at marked anchor locations using steady forward pressure with water cooling

Specifications

Brand: Aardwolf | Part No.: APAM | Drive: pneumatic | Bit shank: 6mm T diamond | Vacuum zones: 2 independently switched | Vacuum: compressed air venturi or external pump

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
