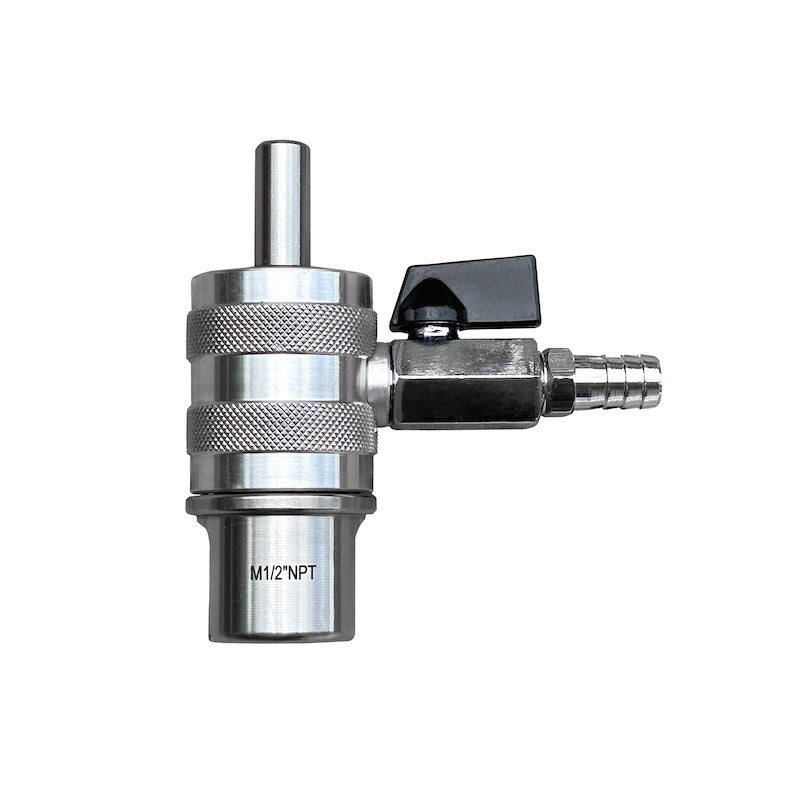

Aardwolf Water Swivel — Wet Coring Water Feed Adapter
The Aardwolf Water Swivel delivers water through a rotating drill or core bit for wet stone and concrete cutting. The sealed bearing allows the bit to spin while the water hose stays stationary. Two sizes — WS01 and WS03 — fit standard core drill spindles.
Features
- Sealed rotating swivel for water feed during coring
- Allows hose to stay still while bit rotates
- Reduces dust and extends diamond bit life
- WS01 and WS03 sizes for common core drill spindles
- Brass and steel construction for corrosion resistance
- Standard hose barb for shop water connection
WS01 — WS01 Water Swivel (1/2 in Female)
| Property | Detail |
|---|---|
| Inlet Thread | 1/2 in Female (F1/2) |
| Housing | Aluminum |
| Spindle | Stainless steel |
| Bearings | Two precision ball bearings |
| Water Flow | Adjustable |
| Use | Supplies water/coolant to diamond core drill bits |
| Adapter Options | M.1/2-M.5/8 NPT or M.1/2-M.M14 |
WS03 — WS03 Water Swivel (5/8 NPT Male)
| Property | Detail |
|---|---|
| Inlet Thread | 5/8 in NPT Male |
| Housing | Aluminum |
| Spindle | Stainless steel |
| Bearings | Two precision ball bearings |
| Water Flow | Adjustable |
| Use | Supplies water/coolant to diamond core drill bits |
- Thread the swivel onto the core drill spindle.
- Connect a water hose to the swivel inlet.
- Open the water supply and confirm flow at the bit.
- Begin coring at low speed; let water cool the diamonds.
- Disconnect, drain, and store the swivel after each shift.
- Wear safety glasses and hearing protection during coring.
Diamond core bits and rotary stone drilling on granite, marble, concrete, and porcelain.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
Especificaciones
| Model | WS01, WS03 |
