Aardwolf Water Swivel — Wet Coring Water Feed Adapter

The Aardwolf Water Swivel delivers water through a rotating drill or core bit for wet stone and concrete cutting. The sealed bearing allows the bit to spin while the water hose stays stationary. Two sizes — WS01 and WS03 — fit standard core drill spindles.

Features

  • Sealed rotating swivel for water feed during coring
  • Allows hose to stay still while bit rotates
  • Reduces dust and extends diamond bit life
  • WS01 and WS03 sizes for common core drill spindles
  • Brass and steel construction for corrosion resistance
  • Standard hose barb for shop water connection

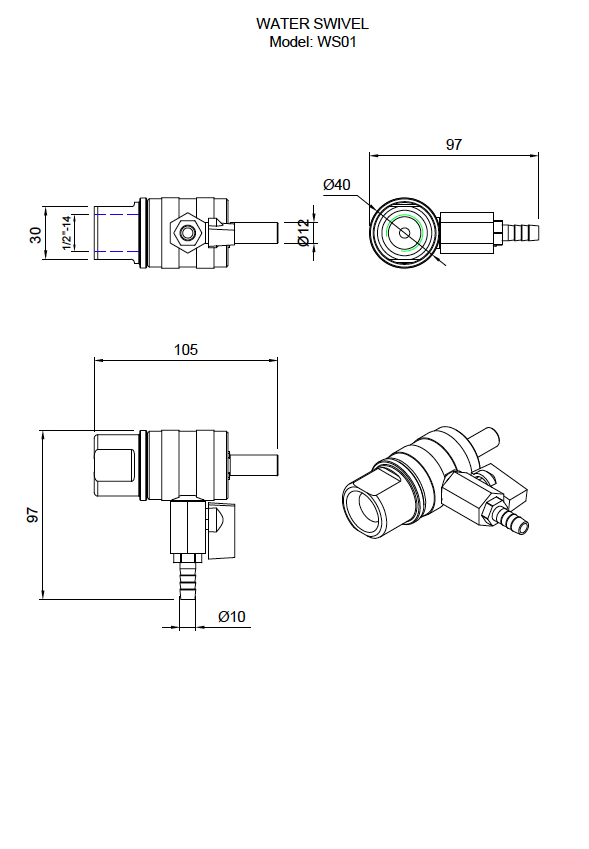

WS01 — WS01 Water Swivel (1/2 in Female)
Property Detail
Inlet Thread 1/2 in Female (F1/2)
Housing Aluminum
Spindle Stainless steel
Bearings Two precision ball bearings
Water Flow Adjustable
Use Supplies water/coolant to diamond core drill bits
Adapter Options M.1/2-M.5/8 NPT or M.1/2-M.M14
WS03 — WS03 Water Swivel (5/8 NPT Male)
Property Detail
Inlet Thread 5/8 in NPT Male
Housing Aluminum
Spindle Stainless steel
Bearings Two precision ball bearings
Water Flow Adjustable
Use Supplies water/coolant to diamond core drill bits
  1. Thread the swivel onto the core drill spindle.
  2. Connect a water hose to the swivel inlet.
  3. Open the water supply and confirm flow at the bit.
  4. Begin coring at low speed; let water cool the diamonds.
  5. Disconnect, drain, and store the swivel after each shift.
  6. Wear safety glasses and hearing protection during coring.

Diamond core bits and rotary stone drilling on granite, marble, concrete, and porcelain.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Specifications

Model WS01, WS03
Brand Aardwolf
Package Dimensions 6" x 6" x 6"
