The Aardwolf AVGLP series is a multi-pad vacuum lifter for stone, glass, and engineered slab transport in fabrication and installation work. Pad count and capacity scale up with model number, from 2-pad 200 kg to 8-pad 800 kg. All variants include vacuum reserve, gauge, and alarm safety systems.

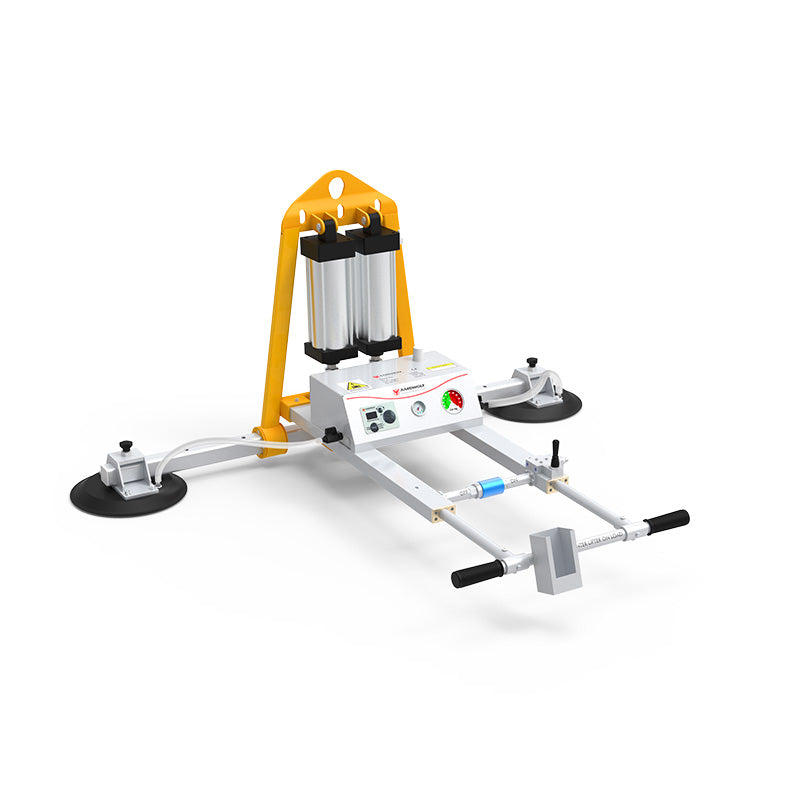

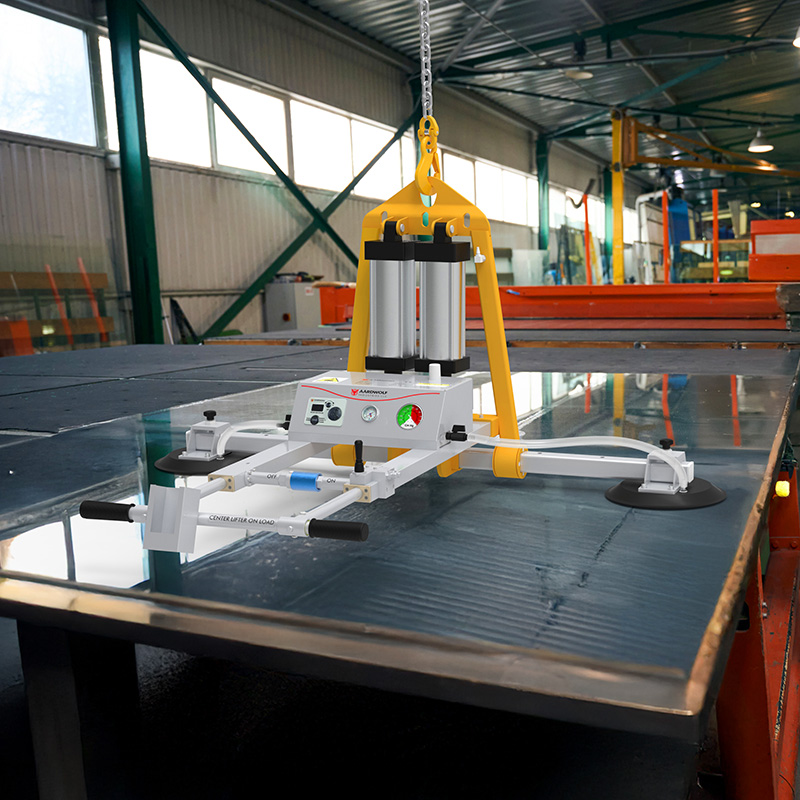

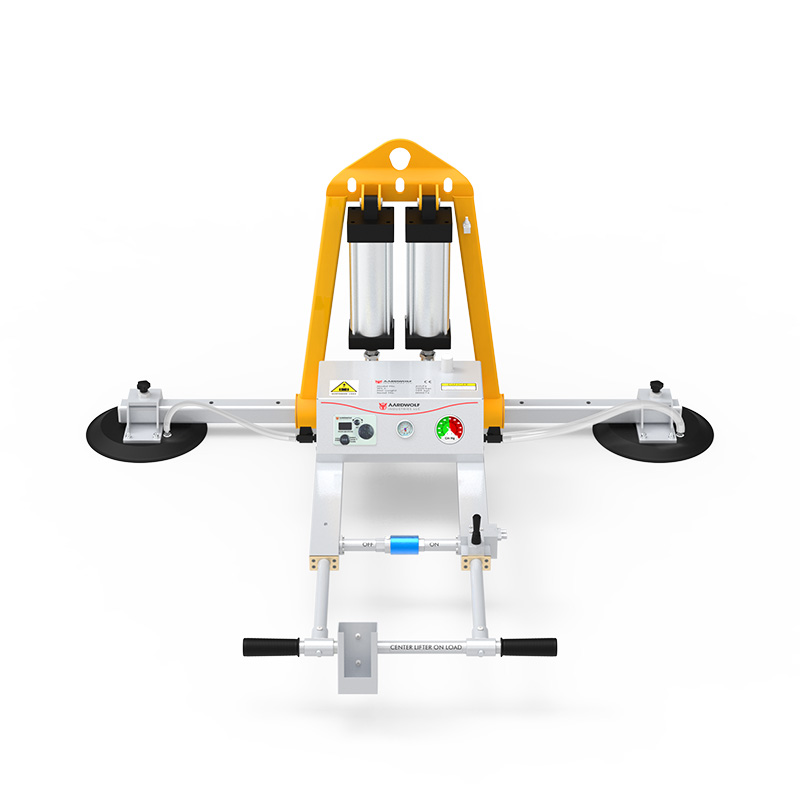

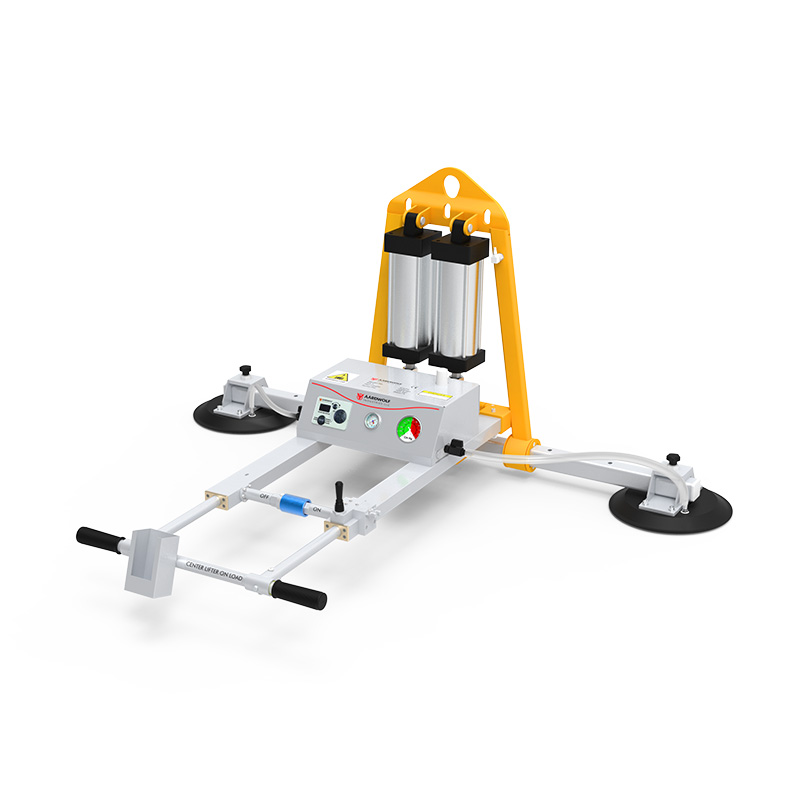

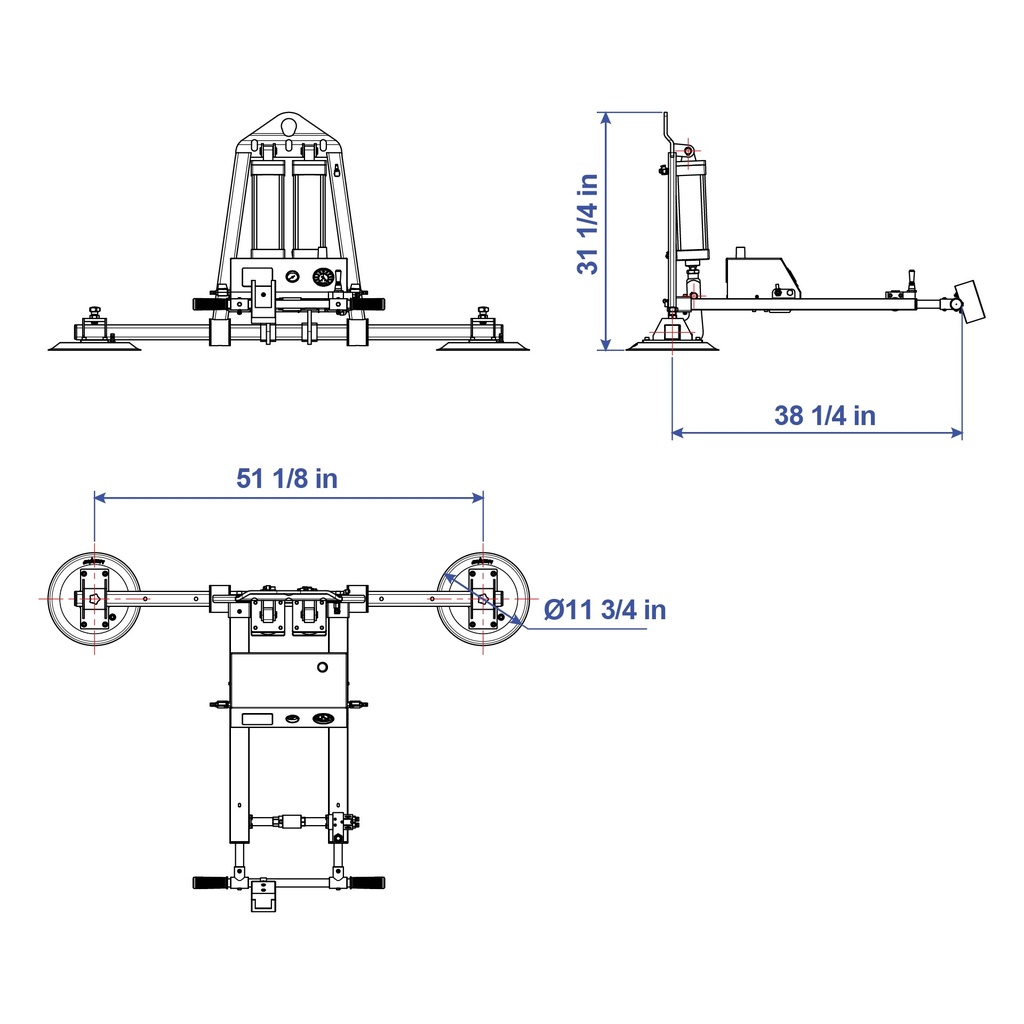

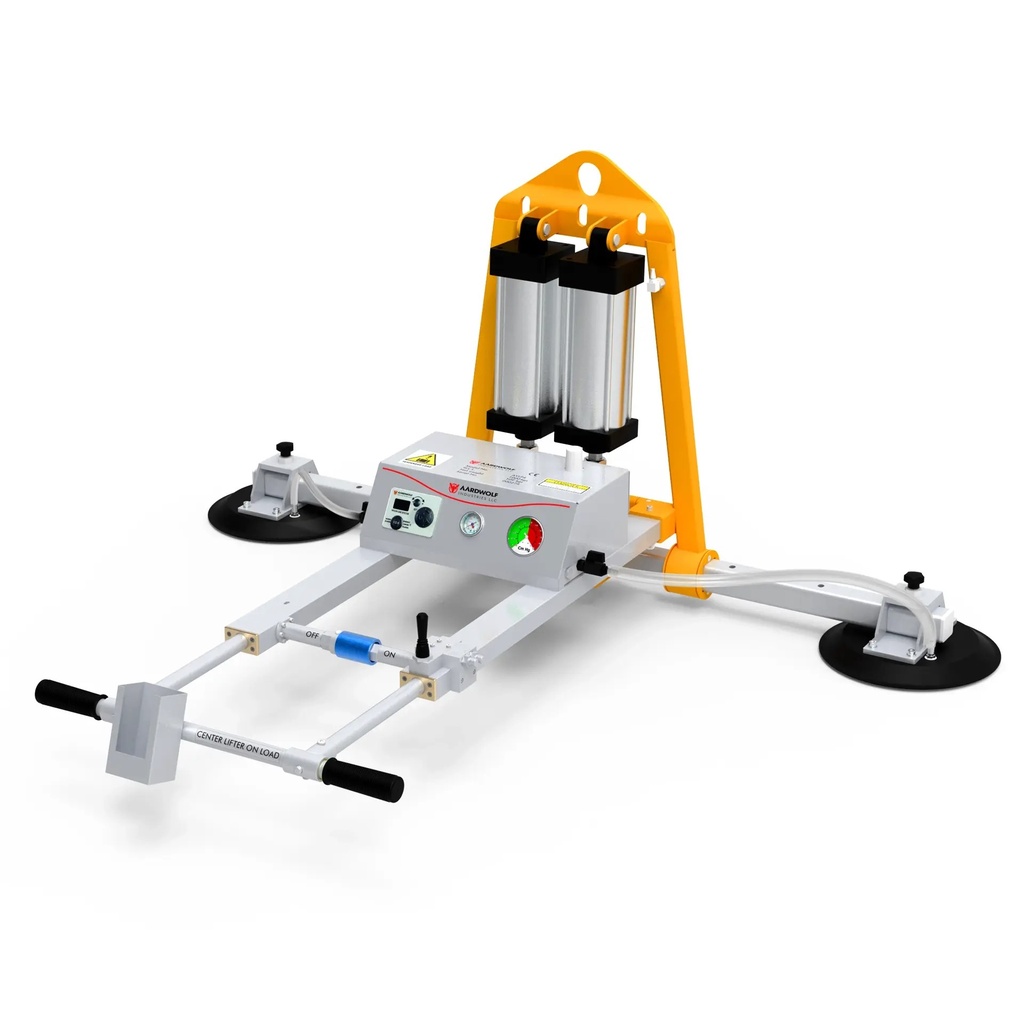

| Property | Detail |
|---|---|
| Working Load Limit | 441 lb (200 kg) |
| Vacuum Pads | Two; 12 in diameter circular |
| Pad Spacing | Adjustable 36-1/4 in to 63 in O.D. |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 3.7V Li-Po; ~7 hr continuous; 2 hr charge |
| Safety | Stainless steel vacuum tank, audio/visual alarm, auto vacuum replenishment |

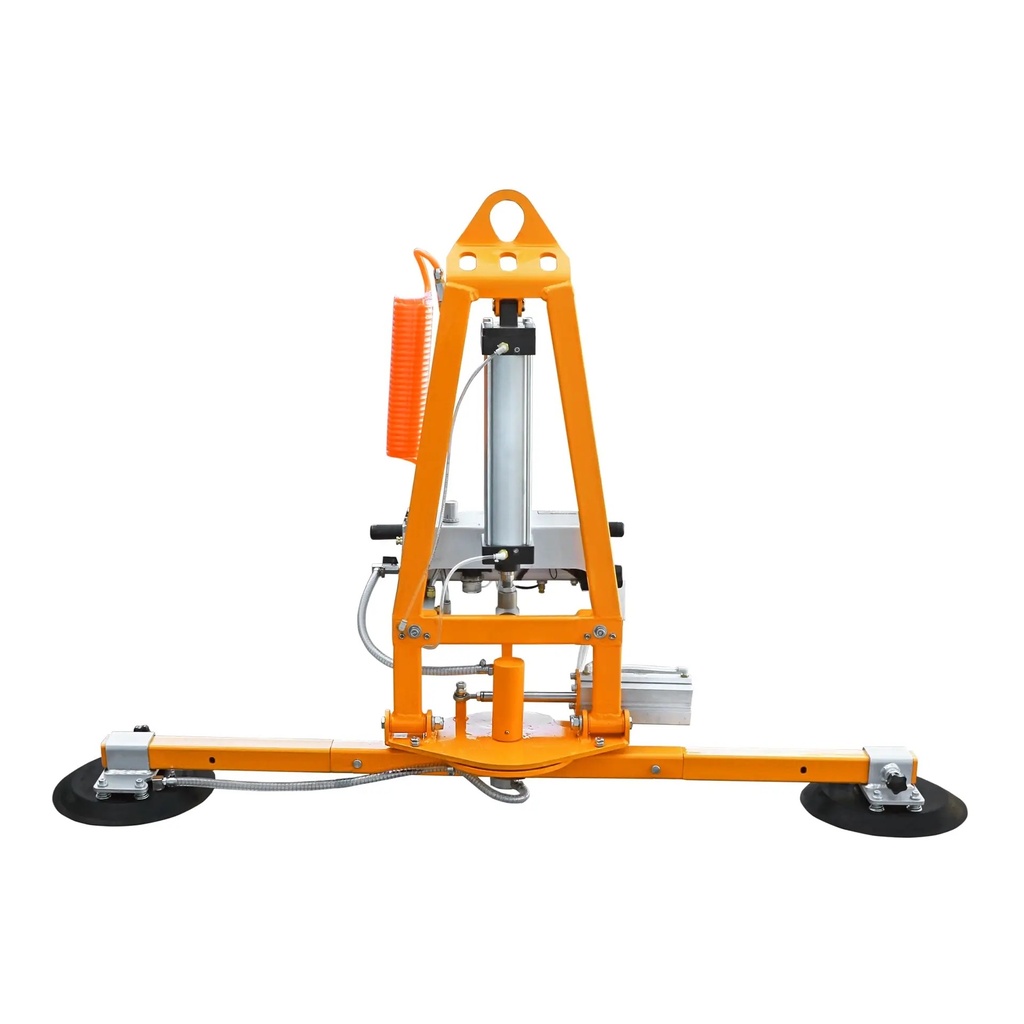

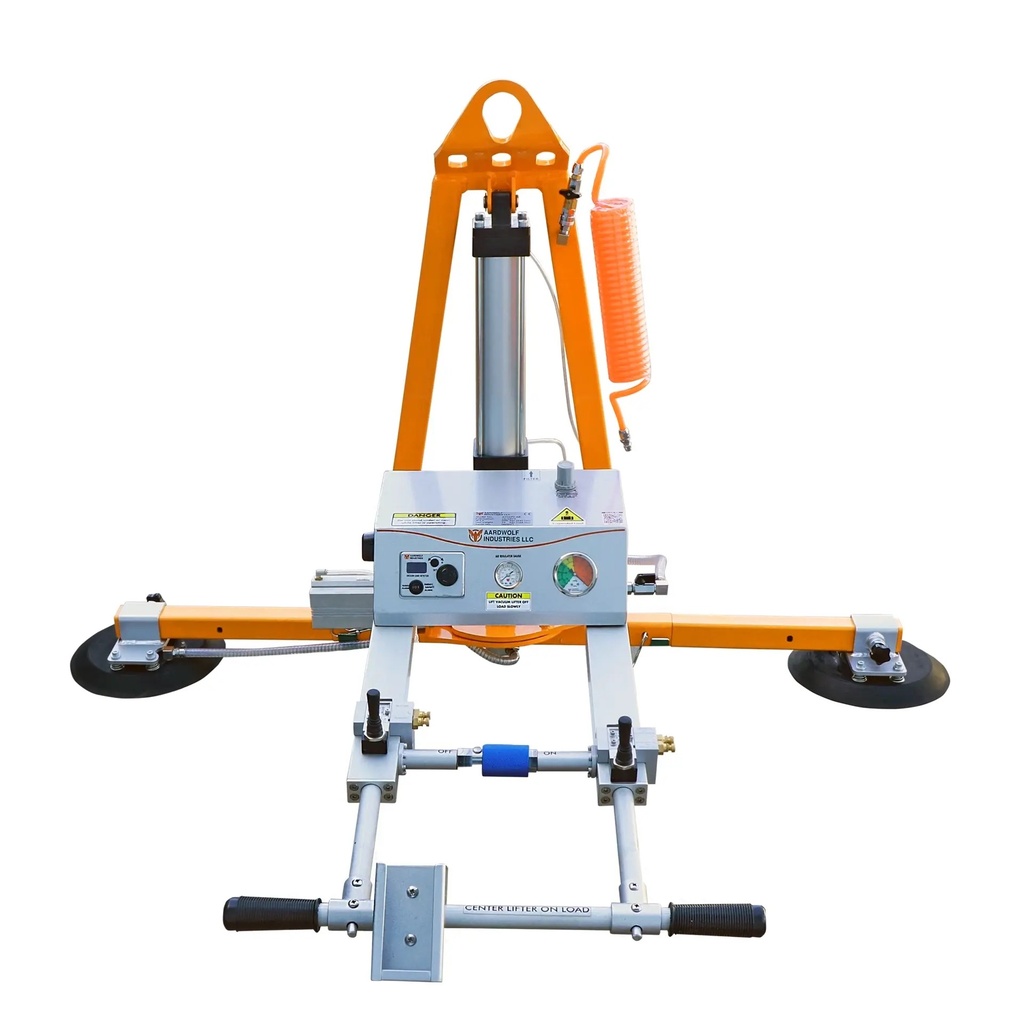

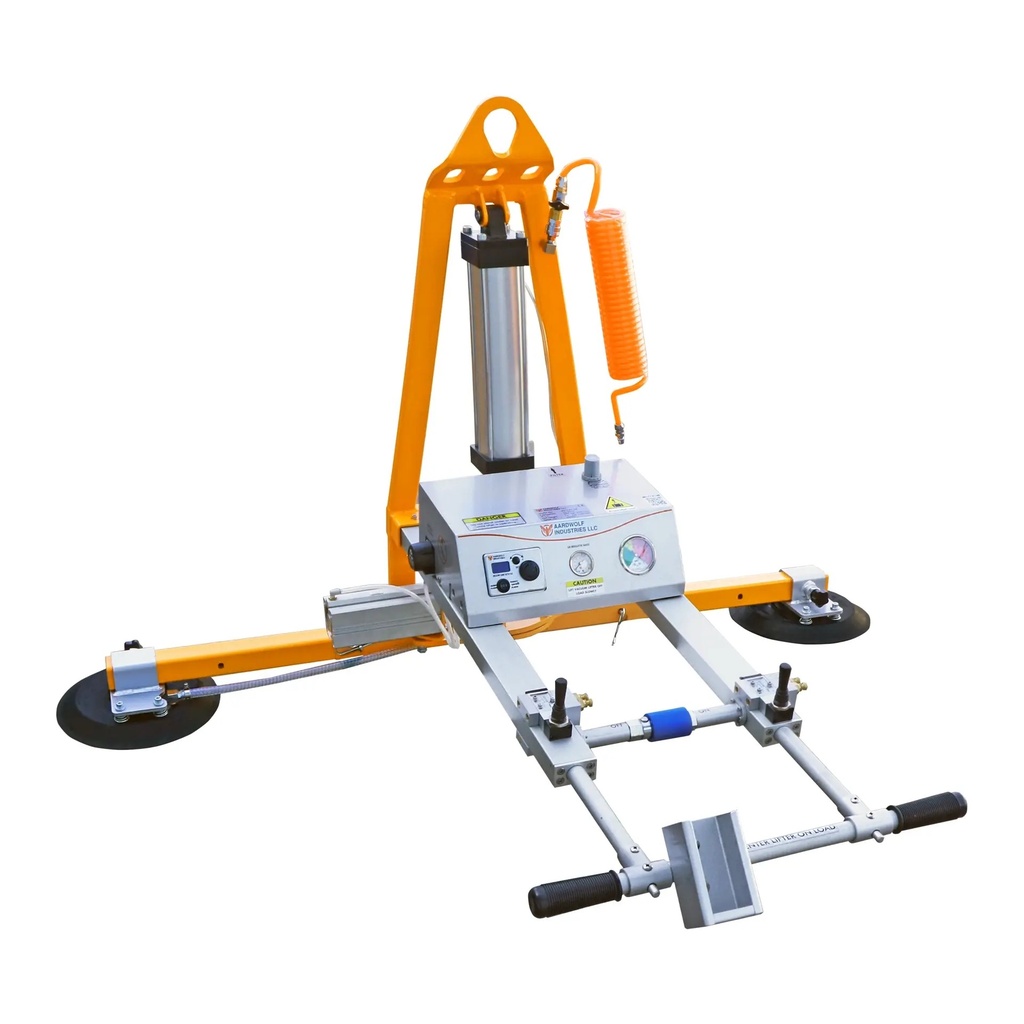

| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 441 lb (200 kg) |
| Working Load Limit (Vertical) | 220 lb (100 kg) |
| Vacuum Pads | Two; ~11.8 in diameter (300 mm) |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Rotation | 90 deg auto-rotation by air cylinder |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 110 L/min |
| Alarm Battery | 3.7V Li-Po 2000 mAh; ~7 hr continuous |
| Safety | Audio/visual alarm, auto vacuum replenishment |

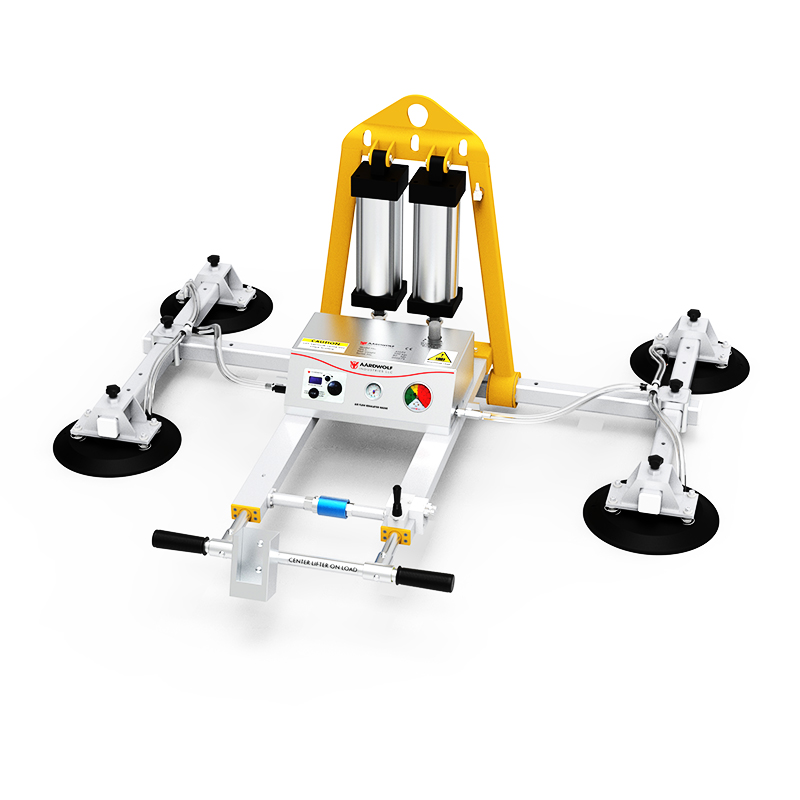

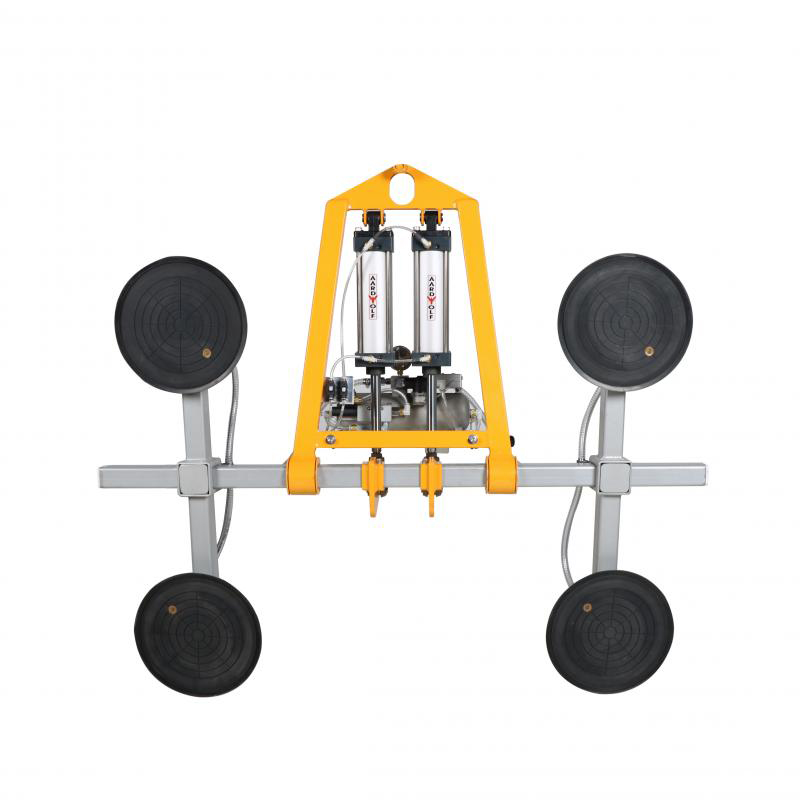

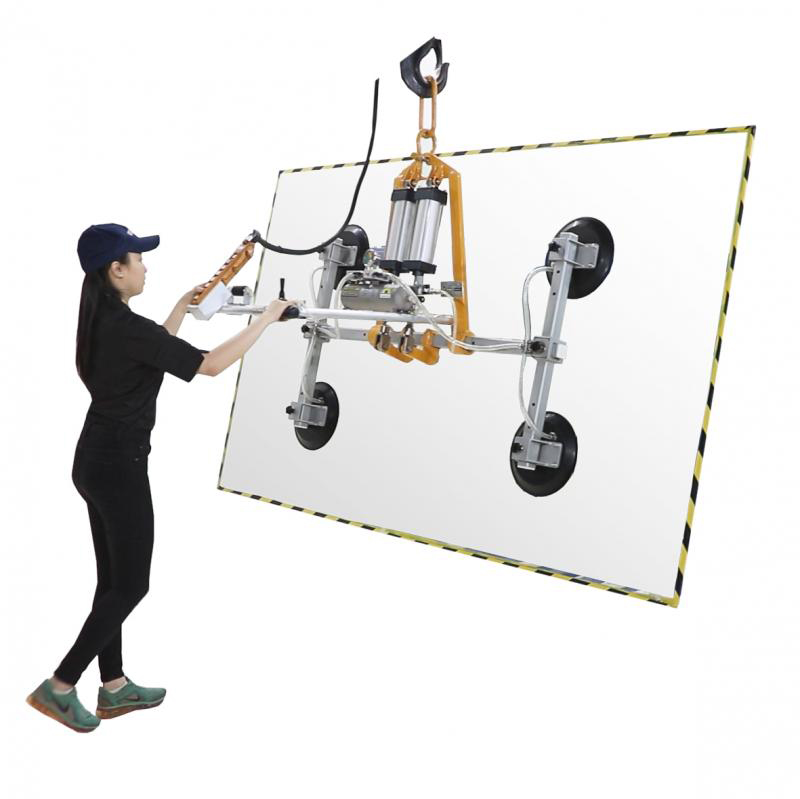

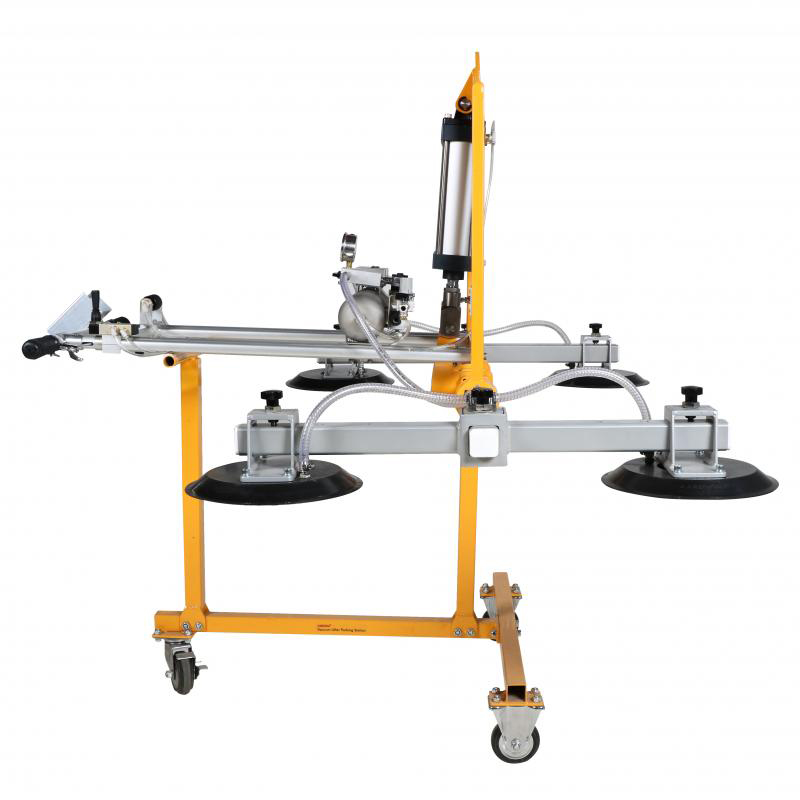

| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 882 lb (400 kg) |
| Working Load Limit (Vertical) | 441 lb (200 kg) |
| Vacuum Pads | Four; 12 in diameter circular, adjustable spacing |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 3.7V Li-Po; ~7 hr continuous; 2 hr charge |
| Safety | Audio/visual alarm, auto vacuum replenishment |

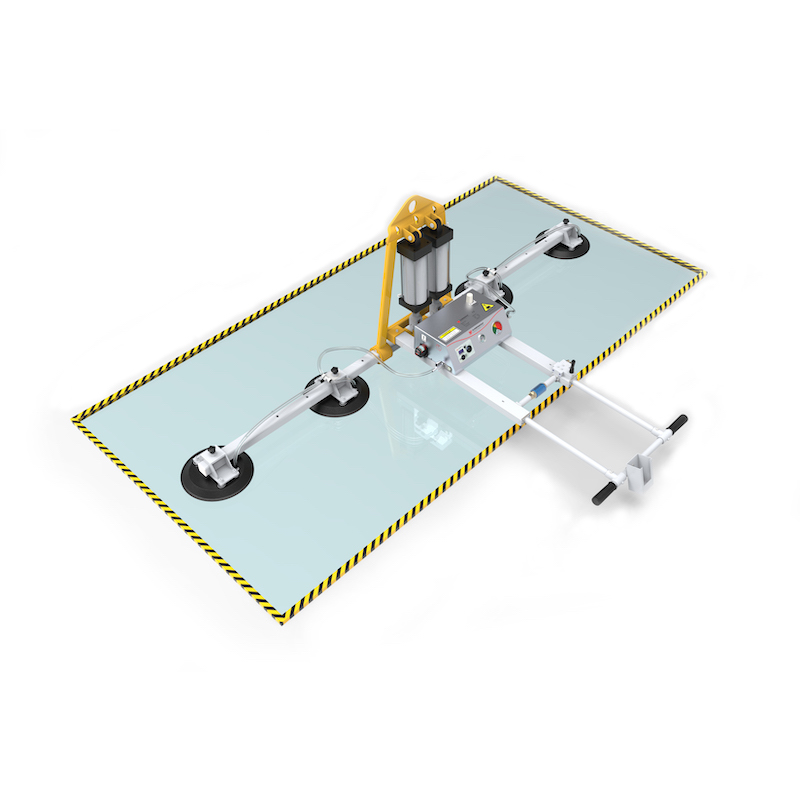

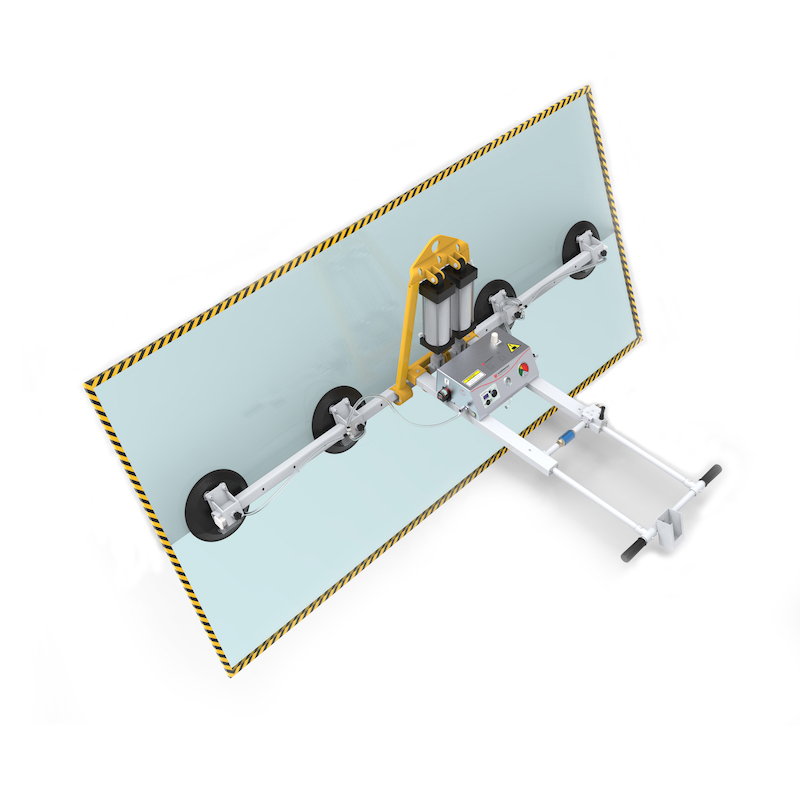

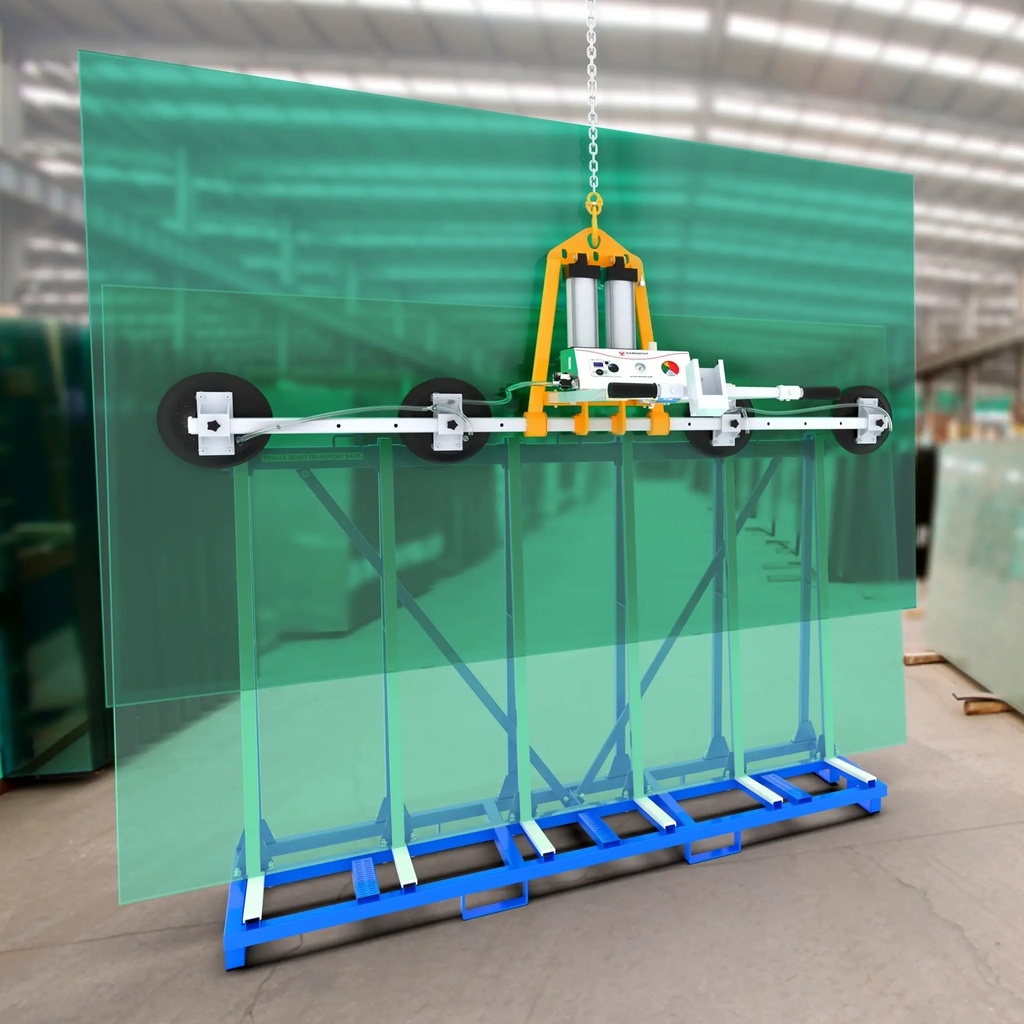

| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 882 lb (400 kg) |
| Working Load Limit (Vertical) | 441 lb (200 kg) |

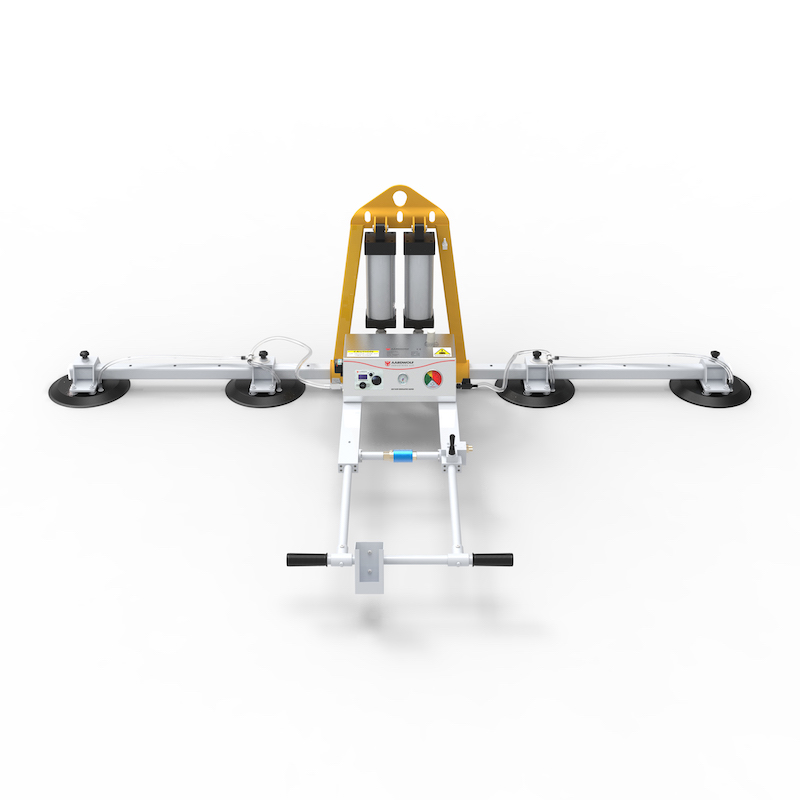

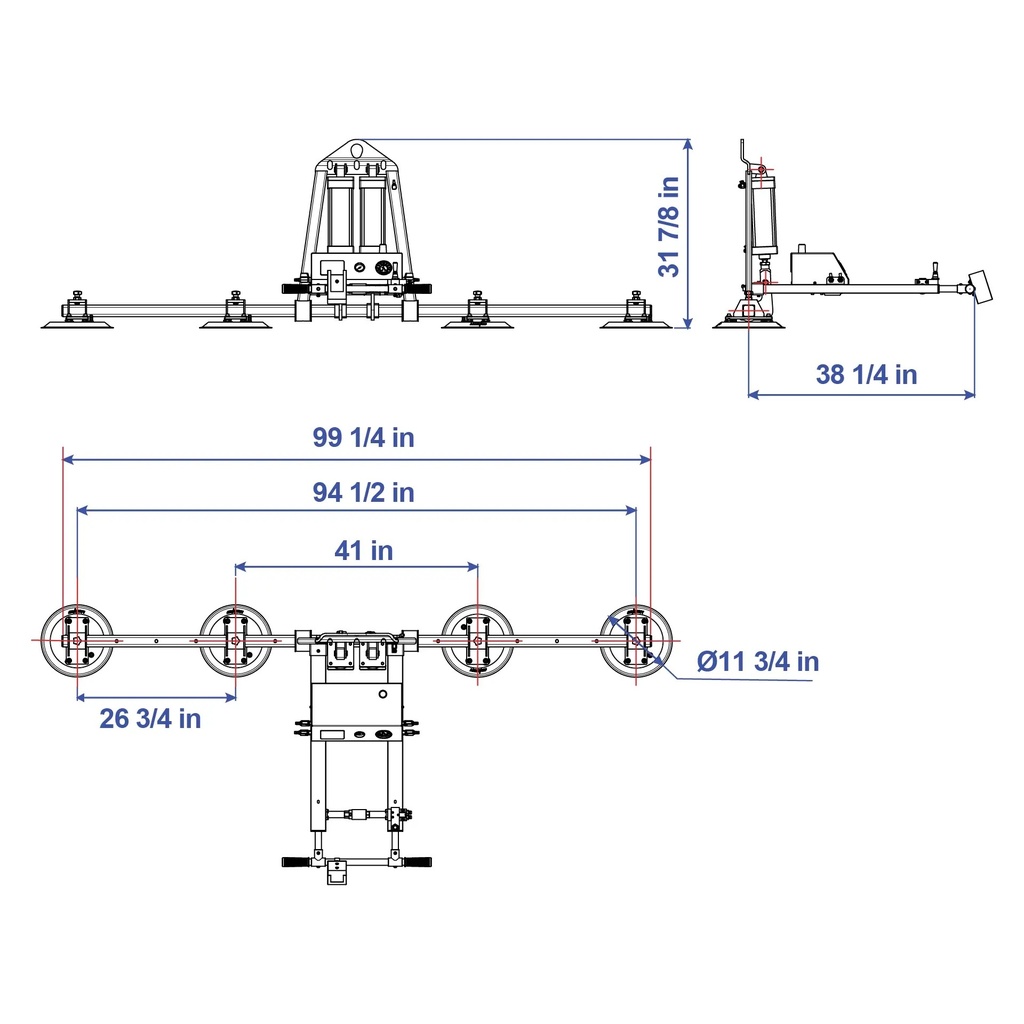

| Configuration | Long-bar frame for oversized panels |
| Vacuum Pads | Four; 12 in diameter circular, adjustable spacing |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 3.7V Li-Po; ~7 hr continuous; 2 hr charge |
| Safety | Audio/visual alarm, auto vacuum replenishment |
| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 1,102 lb (500 kg) |
| Working Load Limit (Vertical) | 882 lb (400 kg) |
| Vacuum Pads | Six; 12 in diameter circular, adjustable spacing |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 3.7V Li-Po; ~7 hr continuous |
| Safety | Audio/visual alarm, auto vacuum replenishment, vacuum reserve tank |

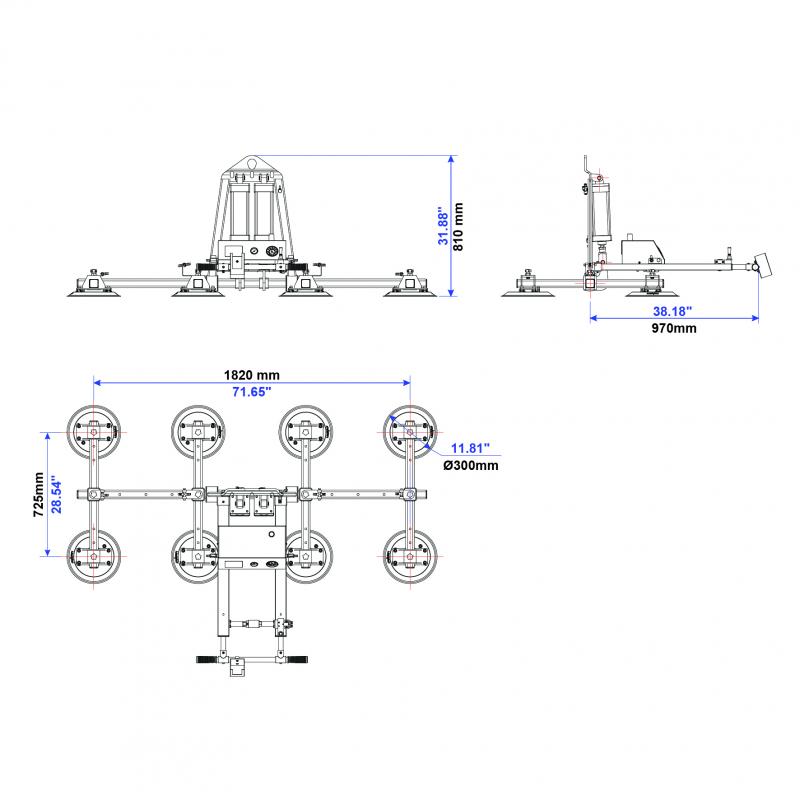

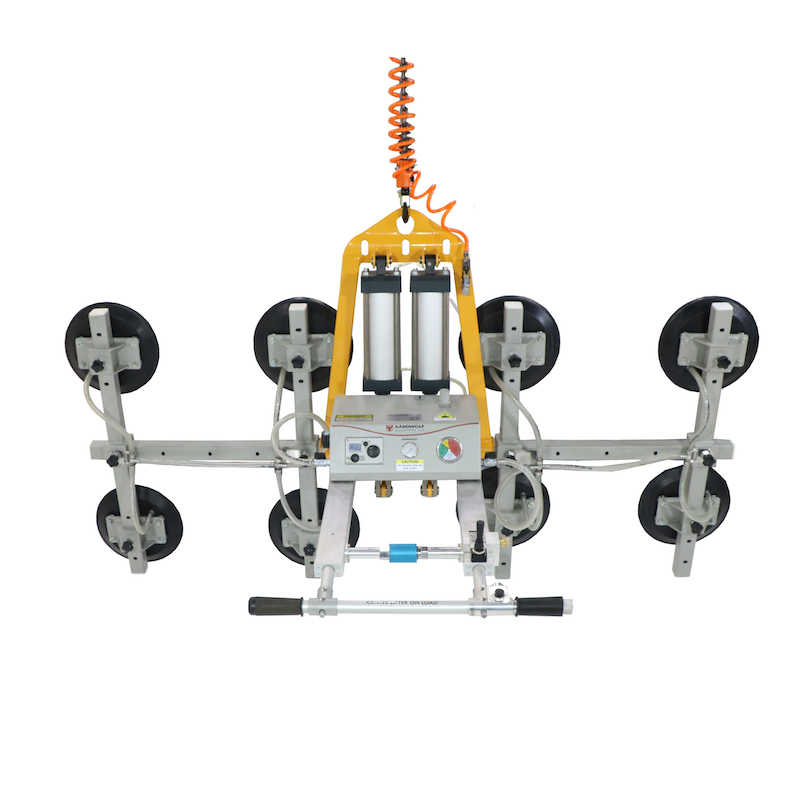

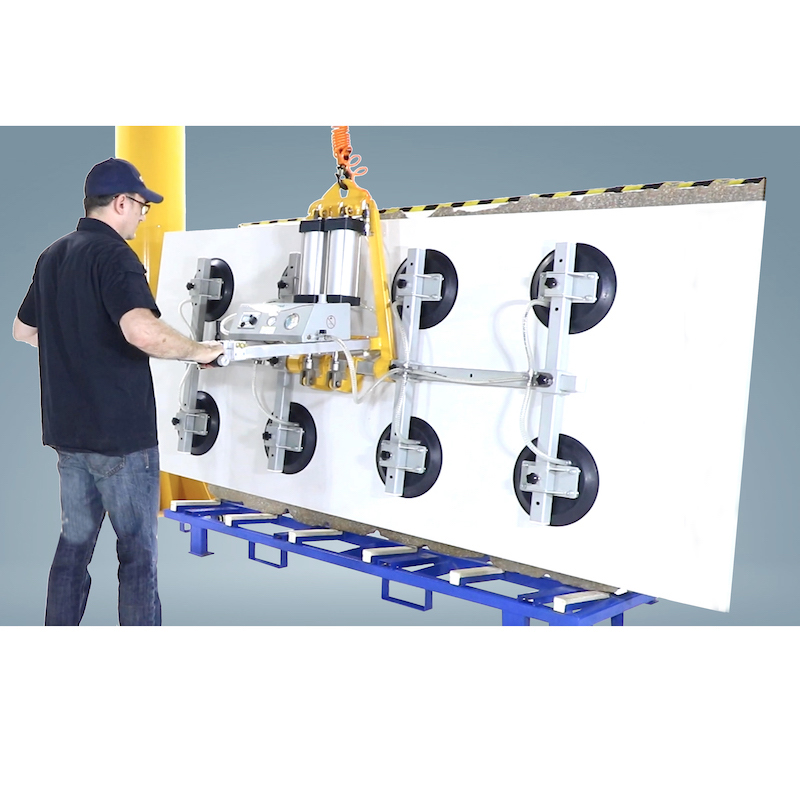

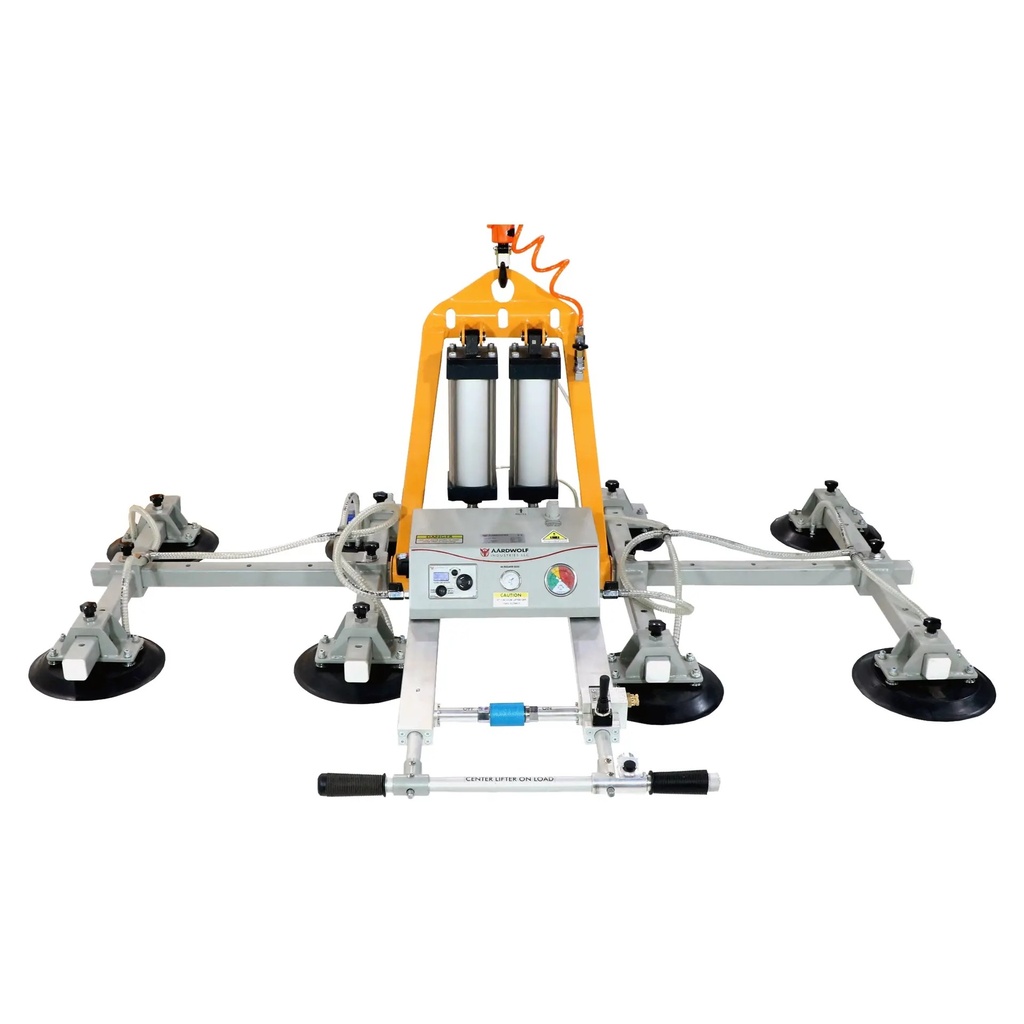

| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 1,764 lb (800 kg) |
| Working Load Limit (Vertical) | 882 lb (400 kg) |
| Vacuum Pads | Eight; 12 in diameter circular |
| Net Weight | 238 lb |
| Gross Weight | 298 lb |
| Packaging | 80.7 in x 17 in x 37.8 in |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 12V Bosch 2.0 Ah Li-Ion; ~6 hr work time; 0.5 hr fast charge |
| Safety | Audio/visual alarm, auto vacuum replenishment |
Granite, marble, quartzite, engineered quartz, porcelain slabs, and flat glass. Best on smooth, clean, non-porous surfaces.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
| Model | AVGLP2-200, AVGLP4-400, AVGLP4-400L, AVGLP8-800, AVGLP2-AR, AVGLP6-500, AVGLP2-AR, AVGLP6-500 |
| Brand | Aardwolf |
| Package Dimensions | 59" x 18" x 38" |
