Aardwolf AVGLP Series Vacuum Lifter — Multi-Pad Slab Handling
The Aardwolf AVGLP series is a multi-pad vacuum lifter for stone, glass, and engineered slab transport in fabrication and installation work. Pad count and capacity scale up with model number, from 2-pad 200 kg to 8-pad 800 kg. All variants include vacuum reserve, gauge, and alarm safety systems.
Features
- AVGLP2-200 — 2 pads, 441 lb (200 kg) capacity
- AVGLP2-AR — 2 pads with auto-rotation
- AVGLP4-400 / AVGLP4-400L — 4 pads, 882 lb (400 kg)
- AVGLP6-500 — 6 pads, 1,102 lb (500 kg)
- AVGLP8-800 — 8 pads, 1,764 lb (800 kg)
- Vacuum reserve tank and audible low-pressure alarm
- Analog gauge for continuous seal monitoring
- Crane, gantry, or forklift jib mounting eye

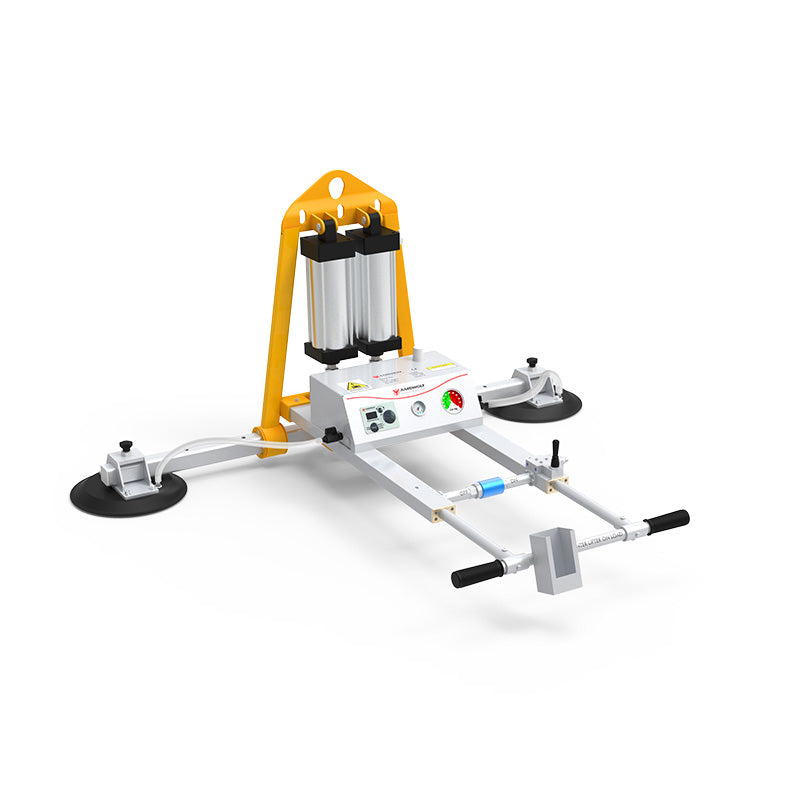

AVGLP2-200 — AVGLP2-200 Pneumatic Vacuum Glass Lifter (2-pad / 200 kg)
| Property | Detail |
|---|---|
| Working Load Limit | 441 lb (200 kg) |
| Vacuum Pads | Two; 12 in diameter circular |
| Pad Spacing | Adjustable 36-1/4 in to 63 in O.D. |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 3.7V Li-Po; ~7 hr continuous; 2 hr charge |
| Safety | Stainless steel vacuum tank, audio/visual alarm, auto vacuum replenishment |

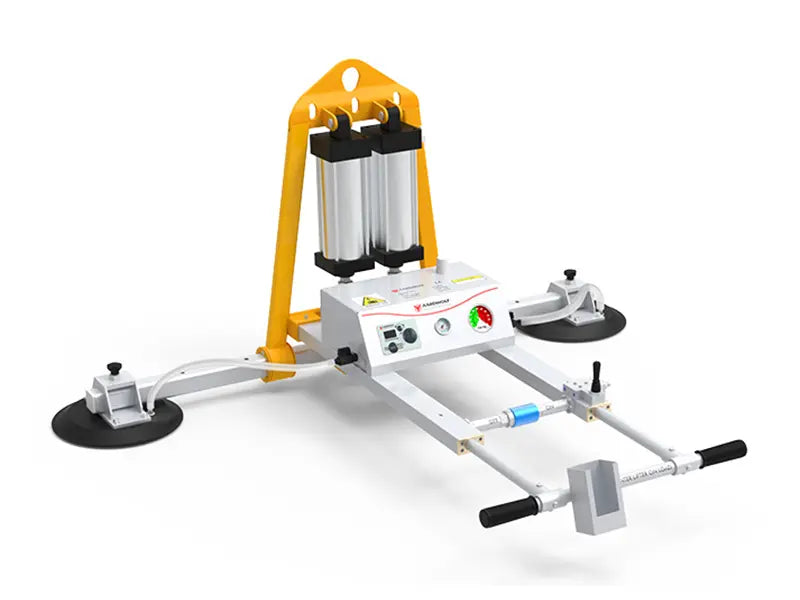

AVGLP2-AR — AVGLP2-AR Auto-Rotate Pneumatic Vacuum Glass Lifter
| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 441 lb (200 kg) |
| Working Load Limit (Vertical) | 220 lb (100 kg) |
| Vacuum Pads | Two; ~11.8 in diameter (300 mm) |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Rotation | 90 deg auto-rotation by air cylinder |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 110 L/min |
| Alarm Battery | 3.7V Li-Po 2000 mAh; ~7 hr continuous |
| Safety | Audio/visual alarm, auto vacuum replenishment |
AVGLP4-400 — AVGLP4-400 Pneumatic Vacuum Glass Lifter (4-pad / 400 kg)
| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 882 lb (400 kg) |
| Working Load Limit (Vertical) | 441 lb (200 kg) |
| Vacuum Pads | Four; 12 in diameter circular, adjustable spacing |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 3.7V Li-Po; ~7 hr continuous; 2 hr charge |
| Safety | Audio/visual alarm, auto vacuum replenishment |
AVGLP4-400L — AVGLP4-400L Long-Bar Pneumatic Vacuum Glass Lifter
| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 882 lb (400 kg) |
| Working Load Limit (Vertical) | 441 lb (200 kg) |
| Configuration | Long-bar frame for oversized panels |
| Vacuum Pads | Four; 12 in diameter circular, adjustable spacing |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 3.7V Li-Po; ~7 hr continuous; 2 hr charge |
| Safety | Audio/visual alarm, auto vacuum replenishment |
AVGLP6-500 — AVGLP6-500 Pneumatic Vacuum Glass Lifter (6-pad / 500 kg)
| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 1,102 lb (500 kg) |
| Working Load Limit (Vertical) | 882 lb (400 kg) |
| Vacuum Pads | Six; 12 in diameter circular, adjustable spacing |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 3.7V Li-Po; ~7 hr continuous |
| Safety | Audio/visual alarm, auto vacuum replenishment, vacuum reserve tank |
AVGLP8-800 — AVGLP8-800 Pneumatic Vacuum Glass Lifter (8-pad / 800 kg)
| Property | Detail |
|---|---|
| Working Load Limit (Horizontal) | 1,764 lb (800 kg) |
| Working Load Limit (Vertical) | 882 lb (400 kg) |
| Vacuum Pads | Eight; 12 in diameter circular |
| Net Weight | 238 lb |
| Gross Weight | 298 lb |
| Packaging | 80.7 in x 17 in x 37.8 in |
| Tilt | Pneumatic 0-90 deg vertical/horizontal |
| Air Supply | 5 bar (72 psi) |
| Air Consumption | 180 L/min |
| Alarm Battery | 12V Bosch 2.0 Ah Li-Ion; ~6 hr work time; 0.5 hr fast charge |
| Safety | Audio/visual alarm, auto vacuum replenishment |
- Charge the battery and confirm gauge zero before each shift.
- Clean the slab face — remove dust, water, and slurry.
- Lower the lifter and engage all pads evenly on the surface.
- Run the vacuum pump until the gauge reads safe lift pressure.
- Lift slowly and keep the load below shoulder height while moving.
- Wear hard hat, gloves, and steel-toe boots throughout the lift.
Granite, marble, quartzite, engineered quartz, porcelain slabs, and flat glass. Best on smooth, clean, non-porous surfaces.
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
